5 core silicone cable with FEP Insulated 24 gauge silicone wire- OD 5.7mm
$2.79

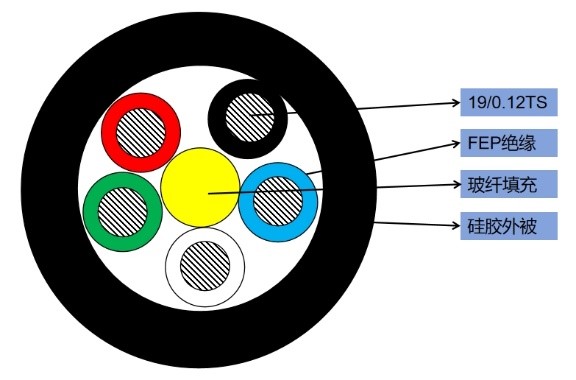

this 5 core silicone cable includes 5 wire 24 gauge silicone wire of FEP Insulation and overall diameter is OD 5.7mm.It is widely used cable, applied in other high temperature or autoclave sterrilization conditions
| Specification | Cable Name | Medical Silicone wire | |
|---|---|---|---|
| Cable Specification | 24AWG*5C+filler+SILICONE | ||
| Comply with RoHS | |||
| Items | sub items | Specification | |
| conductor | material | Tinned copper | |
| Structure | 19/0.12TC | ||
| Specification | 24AWG | ||
| O.D. | 0.60mm(About) | ||
| 　 insulation |
material | FEP | |
| Cores No. | 5C | ||
| Core wire O.D. | 1.1±0.05mm | ||
| Average thickness | 0.25mm | ||
| Colors | 1.red 2.green 3.black 4.blue 5.white | ||
| Twisted | filler | / | |
| Wrapping material | / | ||
| Cabling | filler | Glass Fiber | |
| combination | 5C+filler | ||
| Wrapping | / | ||
| Jacket | material | SILICONE (Medical Silicone Rubber) | |
| O.D. | 5.7-5.8mm | ||
