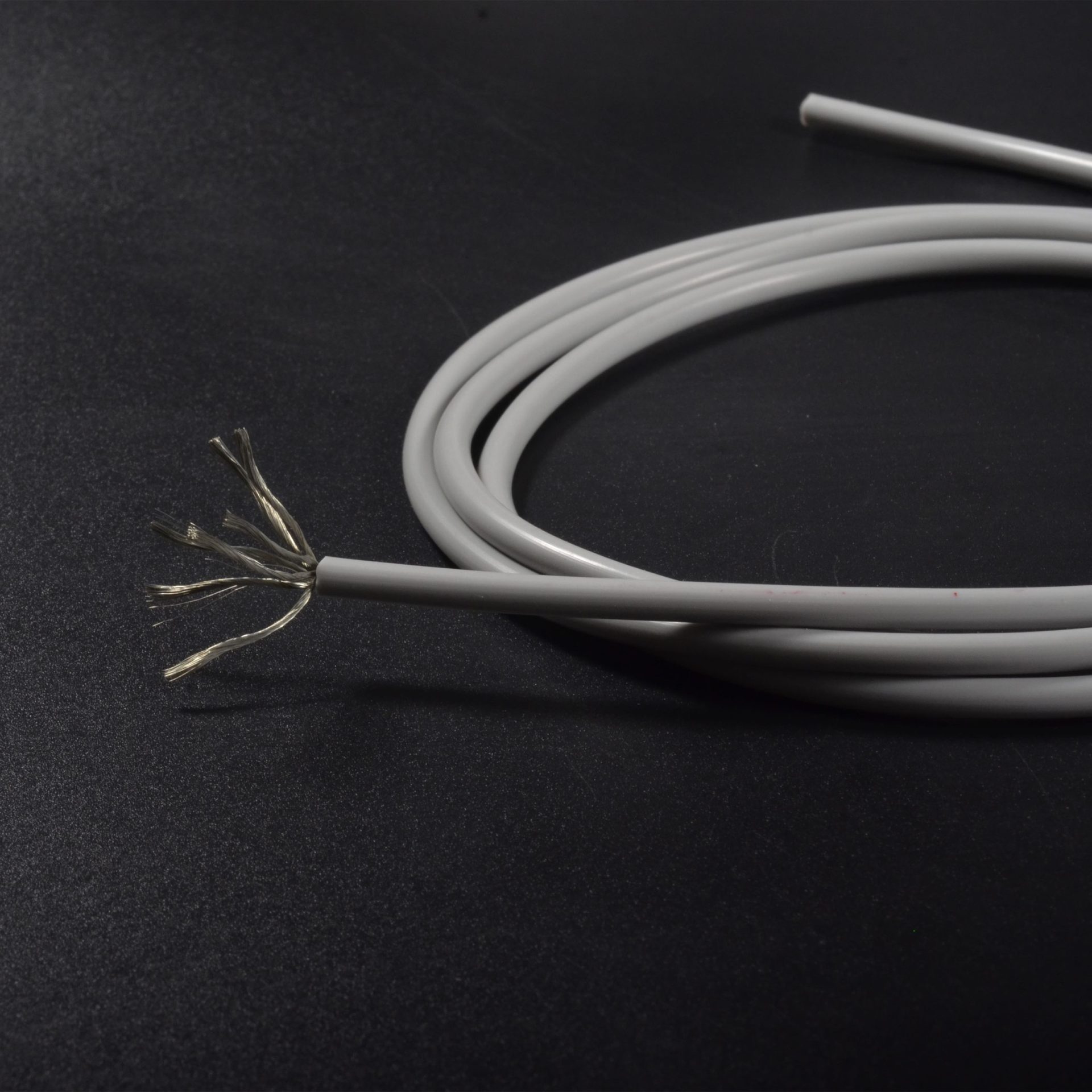

The Single Core Medical Grade 16 AWG Silicone Wire (OD 4.0mm) is engineered specifically for high-current medical equipment, electrosurgical instruments, and reusable surgical electrodes. To overcome the natural stiffness of heavy-gauge conductors, this ultra-flexible 16 awg silicone wire is constructed using an advanced multi-strand double-stranded core layout containing 392 strands of 0.07mm micro tinned copper wire.
This ultra-fine stranding ensures the wire remains incredibly supple and resistant to fatigue under continuous bending in operating rooms. The outer jacket is extruded from pure medical-grade silicone rubber, providing exceptional dielectric protection and an ergonomic, biocompatible skin feel. It features standard autoclave compatibility to ensure flawless performance over hundreds of thermal sterilization cycles.
Specification
| Component | Component 1 | ||||
|---|---|---|---|---|---|
| Conductor | Material | Tin plated copper | |||
| Construction | 16AWG (7/56/0.07TC ) | ||||
| Stranded O.D | 0.78±0.05 | ||||
| Jacket | Material | Medical silicone | |||
| O.D mm | 4.0±0.15mm | ||||
| AVG. Thickness mm | |||||
| Color | Grey | ||||
| Mark | N/A | ||||
Advanced Rope-Lay Stranding for Extreme Flexibility
To overcome the natural stiffness of heavy-gauge 16 AWG conductors in surgical environments, our medical-grade silicone wire utilizes an advanced Rope-Lay Stranding process.

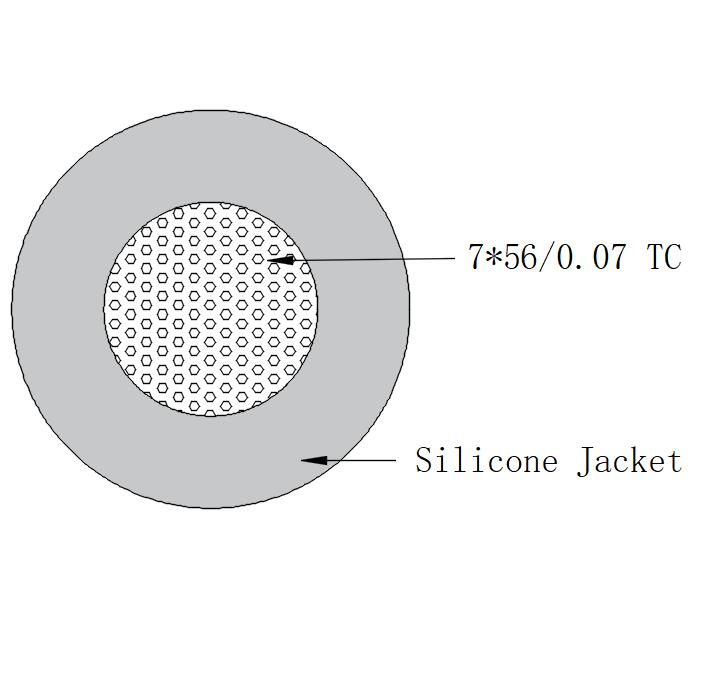

Instead of bunching all copper strands together in a single pass, we implement a meticulous 7/56/0.07TC layout:
- First Stage: 56 micro-fine 0.07mm tinned copper wires are precisely twisted into a sub-bundle.
- Second Stage: 7 of these sub-bundles are systematically rope-lay stranded together to form the final 392-strand conductor.
This dual-stage rope-lay architecture drastically reduces internal friction and stress when the wire is bent. It ensures the cable remains exceptionally supple, boasts a zero-kink tactile feel, and eliminates the risk of conductor fatigue and breakage during long, repetitive surgical procedures.
Key Features of 16 AWG Medical Silicone Wire
- High Current & Low Impedance: The robust 16 gauge conductor safely delivers high RF energy and power for medical devices without overheating or voltage drops.
- Biocompatible Tactile Feel: Extruded with premium medical-grade silicone rubber, providing an ergonomic, non-sticky, and patient-safe contact surface.
- Autoclave Sterilization Ready: Specially engineered to withstand over 300+ autoclave sterilization cycles at 134°C without cracking, stiffening, or losing dielectric properties.
Typical Medical Applications
This high-flexibility, rope-lay stranded 16 AWG medical wire is widely integrated into:
- Electrosurgical Units (ESU) & Handpieces: Delivering reliable RF energy for cutting and coagulation. For complex therapeutic instruments requiring a multi-channel feed instead of a standalone power line, our 4 core hybrid medical wire combines high-amp power delivery with isolated sensor wires
- Reusable Surgical Electrodes / Grounding Disks: Ensuring reliable grounding and patient safety during monopolar electrosurgery.
- Ablation & Laser Therapeutic Devices: High-current internal power distribution lines that require dense routing.
FAQ About 16 AWG Medical Grade Wire
Q1: What are the benefits of Rope-Lay Stranding over standard stranding?
Standard industrial 16 AWG wires have fewer, thicker strands, making them stiff and highly prone to metal fatigue (internal breakage) under continuous movement. Our 7/56/0.07TC rope-lay design distributes bending stress across 392 micro-strands, ensuring maximum flex life, lower minimum bend radius, and ultimate safety in operating rooms. For low-current setups like dual-channel diagnostic sensors that require an identical high-flex lifecyle, our 2 conductor 22 awg silicone wire utilizing robust PFA core insulation delivers optimal twin-stream isolation.
Q2: Does this medical silicone jacket meet biocompatibility standards?
Yes, our medical silicone raw material is selected to pass standard biocompatibility tests, ensuring it is non-toxic, non-irritating, and safe for skin-contact medical device designs.
Q3: Is custom jacket color or custom printing available?
Absolutely. While our standard inventory color is Grey, we offer full customization for jacket colors (Red, Blue, Black, Green) and custom surface printing to match your medical equipment’s aesthetics.
