Custom Probe Cable Solutions for Repair, OEM & Medical Imaging Applications
Ultrasound transducer cables play a critical role in medical imaging systems by transmitting high-frequency signals between the ultrasound probe and imaging equipment. At RF Coaxial, we provide custom ultrasound transducer cable assemblies for probe repair companies, OEM manufacturers, biomedical engineering teams, and medical imaging system integrators worldwide.
Our solutions are designed for high flexibility, stable signal transmission, EMI shielding performance, and long-term durability in demanding clinical environments.
We support custom cable manufacturing for a wide range of ultrasound applications including diagnostic imaging systems, portable ultrasound devices, veterinary ultrasound systems, and probe repair projects.
Custom Ultrasound Cable Manufacturing Capabilities
RF Coaxial specializes in custom medical cable manufacturing with support for complex multi-coax and miniature cable structures used in modern ultrasound probes.
Our capabilities include:
- Multi-coax ultrasound cable assemblies
- Miniature coaxial cable structures
- PVC,TPU,TPE and silicone jacket options（usually ultrasound cable are PVC）
- Flexible cable constructions
- Probe cable replacement solutions
- EMI shielding optimization
- High-flex repeated bending designs
- Overmolded connector assemblies
- Custom cable diameter (OD)
- Custom cable length
- Medical-grade materials
- OEM and small-batch production support
Compatible Ultrasound Systems & Brands
Our ultrasound transducer cables can be customized for compatibility with various medical imaging platforms and probe repair applications. For high-density GE system maintenance, we widely provide 60pF/M 198 Core 44AWG For Ge Probe Repair With Kevlar Filler
and 50pF/M 132 Core 42AWG Cable For Ultrasound Probe Repair And Assembly to global engineering teams.
Compatible brands include:
- GE Healthcare
- Philips
- Siemens
- Samsung
- Mindray
- Esaote
- Canon Toshiba
- Fujifilm SonoSite
We also support custom replacement cable solutions for legacy ultrasound systems and discontinued probe models.
Applications
Our ultrasound probe cable solutions are widely used in:
Ultrasound Probe Repair
Replacement cable assemblies for damaged or worn ultrasound probe cables. For mid-channel-density arrays, we recommend using Low Capacitance Coax 60pF/M 130 Core 42AWG Coxial Cable Ultrasound to ensure precise medical imaging and signal integrity.
OEM Ultrasound Manufacturing
Custom cable solutions for new ultrasound probe development and medical device integration.
Portable Ultrasound Systems
Lightweight and flexible cable constructions for handheld and portable imaging systems.
Veterinary Ultrasound Equipment
Durable cable assemblies for veterinary diagnostic imaging applications.
Medical and Industry Imaging Research
Custom cable solutions for laboratory, testing, and research environments.
Why Signal Integrity Matters in Ultrasound Probe Cables
Ultrasound transducer cables carry sensitive high-frequency signals that directly impact imaging performance. Poor shielding, unstable impedance, or excessive cable stiffness may affect signal quality and probe reliability.
RF Coaxial focuses on:
- Stable signal transmission
- Flexible cable structures
- Reduced EMI interference
- Reliable shielding performance
- Long service life under repeated bending
- Optimized cable handling for clinical environments
Our engineering team can help evaluate cable structure requirements based on your application needs.
Materials & Construction Options
We offer various material combinations depending on flexibility, durability, and environmental requirements.
Jacket Materials
- TPU
- Silicone Rubber
- PVC
- TPE
Conductor Options
- Silver-plated copper
- Tinned copper
- Bare copper
- Alloy conductors(most used)
Shielding Structures
- Braided shielding
- Foil shielding
- Multi-layer shielding
- Hybrid shielding structures
OEM & Customization Support
Every ultrasound system has different mechanical and electrical requirements. We provide flexible OEM manufacturing support for customers requiring customized solutions.
Customization options include
- Cable outer diameter
- Cable flexibility
- Shielding coverage
- Jacket hardness
- Connector integration
- Overmolding
- Multi-channel structures
- Color customization
- Printing and marking
Related Ultrasound Cable Products

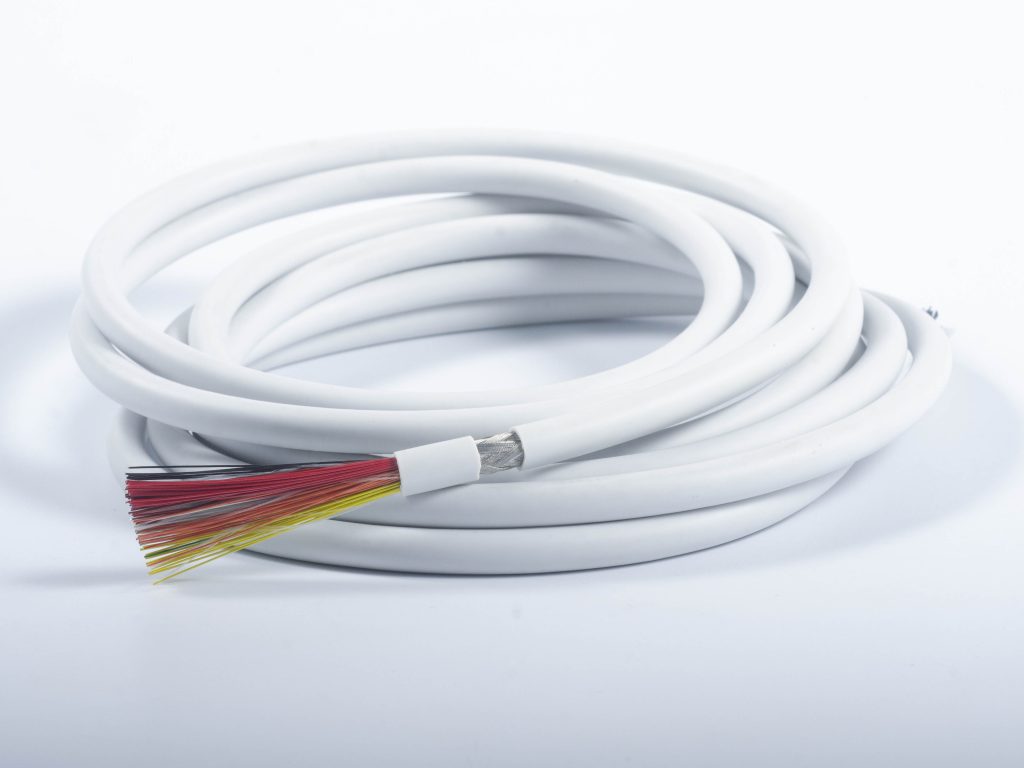

low capacitance coax 60pF/m 130 core 42AWG Coxial cable Ultrasound
60pFm 68C(68×42AWG coaxial Cable ultrasound）cable for ultrasound transducer probe
50pF/m 132 core 42AWG cable for ultrasound probe repair and assembly
ultrasound transducer repair Cable 50pF/m 200 core 42AWG Coxial and 4 wire 30AWG
60pF/m 198 core 44AWG for ge probe repair with Kevlar Filler

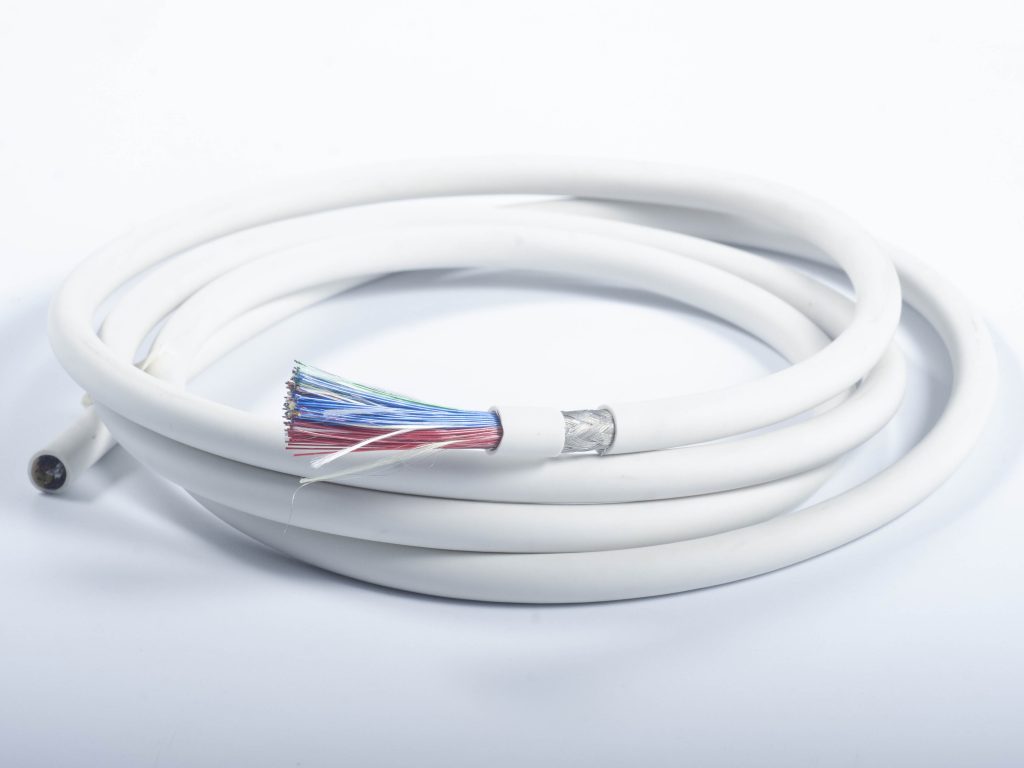

60pF/m 198 core 42AWG Coxial ultrasonic sensor cable
ultrasonic transducer cables 110pF/m 206 core 43AWG Coxial and 2 Shielded Twisted Pair 30AWG
Low Capacitance Ultrasound Transducer Cable: 50pF/m 208-Core 44AWG

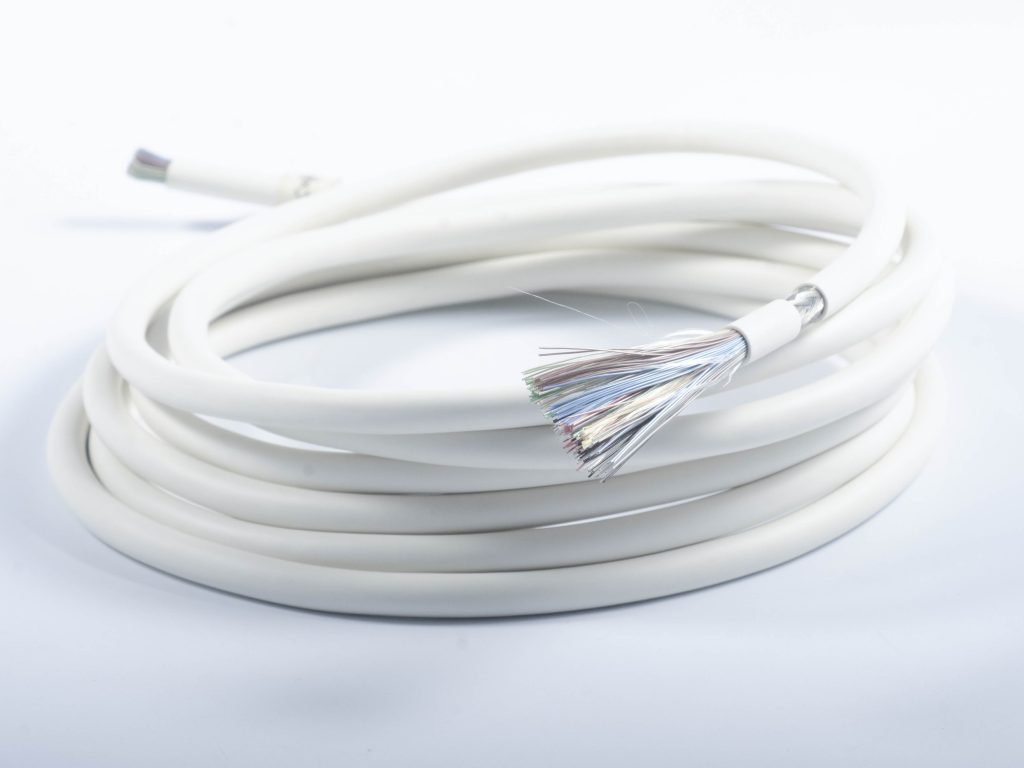

110pF/m 138 core 42AWG Coxial cable Ultrasound with extra 8 wire 30AWG and Kevlar filler
110pF/m 132 core 40AWG ultrasonic transducer cables for ge ultrasound probe repair
FAQ
What is an ultrasound transducer cable?
An ultrasound transducer cable is a specialized medical cable assembly used to transmit electrical signals between the ultrasound probe and imaging system.
Can ultrasound probe cables be repaired?
Yes. Many damaged ultrasound probe cables can be replaced or repaired depending on the condition of the probe and connector assembly.
Do you support custom ultrasound cable manufacturing?
Yes. RF Coaxial provides custom ultrasound cable manufacturing for OEM projects, repair applications, and medical device integration.
What jacket materials are available?
We support TPU, silicone rubber, PVC, and other flexible medical-grade jacket materials depending on application requirements.
Can you manufacture small quantities?
Yes. We support prototype development, small-batch production, and OEM manufacturing projects.
