In the rapidly evolving world of precision electronics, components are shrinking while performance demands are skyrocketing. Standard cables simply cannot handle the spatial constraints of modern high-tech devices.
Our industrial-grade micro coaxial cable lineup (ranging from 36AWG down to the groundbreaking 48AWG) is custom-engineered to solve this exact bottleneck. By balancing micro-miniaturization with exceptional signal integrity, we provide global engineers with the ultimate interconnect solutions for high-frequency and space-critical applications.
Engineering Excellence: 36AWG to 48AWG Product Selection Guide
When selecting the ideal ultra thin coaxial cable for your project, precise dimensions and electrical specifications are non-negotiable. Whether you are developing next-generation medical probes or military-grade radar systems, our core product matrix is engineered to meet strict international standards.
Below is our standardized product selection table. Review the technical specifications to find the exact configuration for your engineering requirements.
| Product Model | Gauge (AWG) | Finished O.D. | Impedance | Insulation / Jacket | Datasheet (PDF) | Action |
|---|---|---|---|---|---|---|

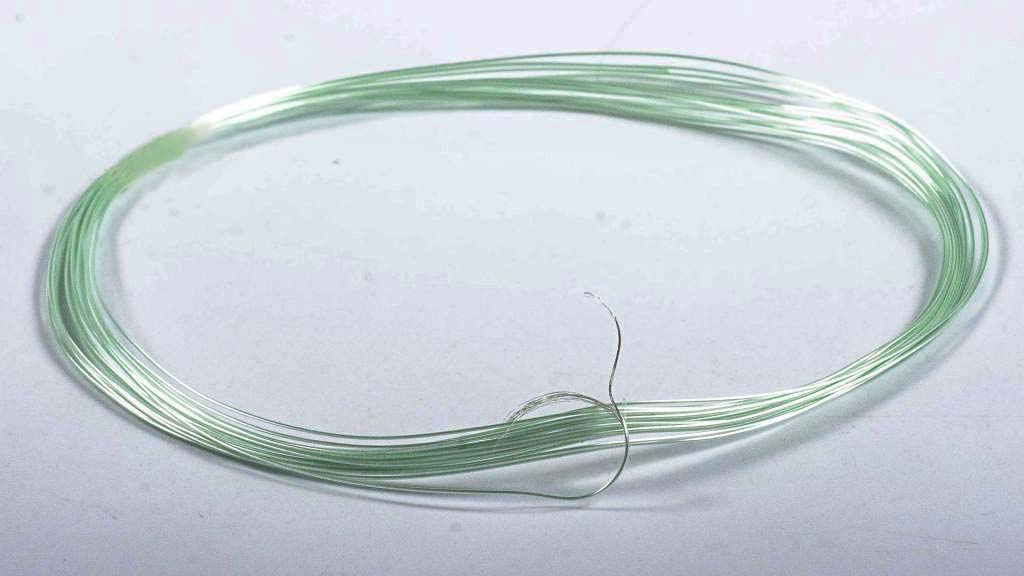

| 48AWG Micro Coax | 48 AWG | 0.17 ± 0.003 mm | 50Ω | High-Performance PFA | [Download] | Copy Specs |
| 46AWG Micro Coax | 46 AWG | [0.214± 0.003 mm] | 50Ω | High-Temperature PFA | [Download] | Copy Specs |
| 44AWG Micro Coax | 44 AWG | [0.256± 0.003 mm] | 50Ω | High-Flexibility PFA | [Download] | Copy Specs |
| 42AWG Micro Coax | 42 AWG | [0.32± 0.003 mm ] | 50Ω | Thermal-Stable PFA | [Download] | Copy Specs |
| 40AWG Micro Coax | 40 AWG | [0.35 mm or 0.37mm] | 50Ω | Industrial-Grade PFA | [Download] | Copy Specs |
Targeted Industry Applications: Where Precision Meets Reliability
While the technical parameters highlight our production capabilities, the true value of an ultra fine coaxial cable lies in its cross-industry field survivability. Our micro-connectivity technology acts as the nervous system for mission-critical machinery globally.

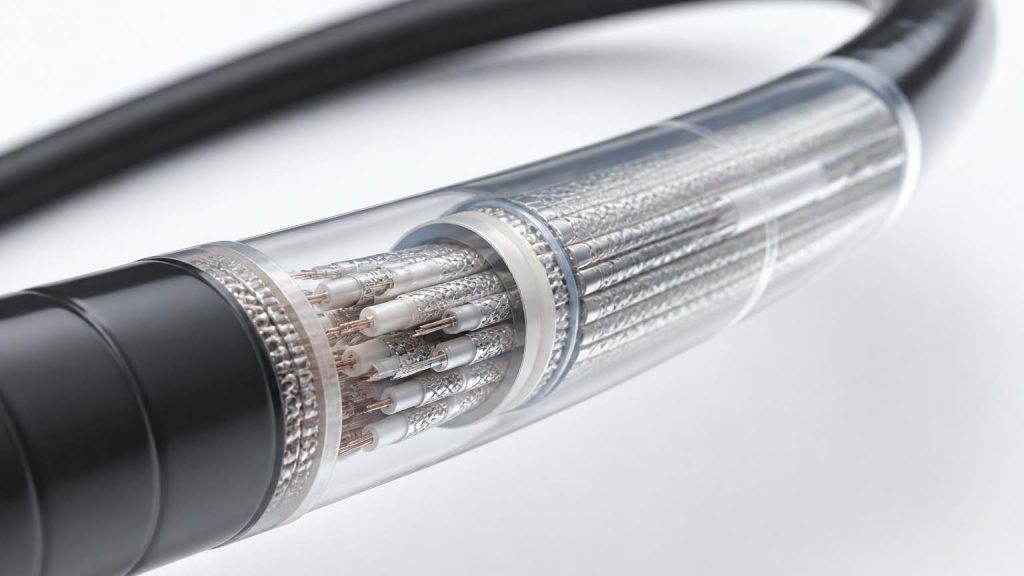

Medical-Grade Devices & Surgical Robotics
In medical manufacturing, there is absolutely zero margin for error. Cables routed through multi-lumen catheters or active endoscopes must remain bio-compatible, ultra-flexible, and completely immune to EMI.
- Medical Endoscopes & Intravascular Ultrasound (IVUS): Requires our 48AWG micro coax for high-resolution imaging and space optimization.
- Catheters & Electrophysiology Devices: Benefits from high flexibility and low thermal dissipation.
- Implantable Electronics & Neurostimulation: Demands absolute structural integrity and bio-inert PFA encapsulation.
Advanced RF Communication & Aerospace Systems
As telecom networks shift towards 5G advanced and millimeter-wave 6G frequencies, signal damping becomes a massive obstacle. Lightweight aerospace wiring demands a massive reduction in dead weight without sacrificing signal shielding.
- Millimeter-Wave (mmWave) RF Modules: 50Ω impedance stability ensures zero return loss at high frequencies.
- Unmanned Aerial Vehicles (UAVs) & Military Radar: Eliminates excessive cable weight while sustaining high-density signal shielding.
- Precision Test & Measurement Equipment: Ensures reliable coaxial interconnects for sensitive lab calibration instruments.
Advanced Material Anatomy of Our Miniature Coaxial Cables
To understand how a cable thinner than a strand of hair maintains structural durability and signal transmission speed, we must look into its material stack. We leverage industrial-grade polymers and high-conductivity metal formulations.
🔬 Core Structural Elements
- Premium Inner Conductors: We draw ultra-fine silver-plated copper alloy wires to maximize skin-effect electrical conductivity at higher frequencies.
- High-Density Shielding Layers: Tinned copper alloy braids provide up to 95%+ coverage, creating an impenetrable barrier against electromagnetic interference (EMI).
- Advanced Fluoropolymer Jackets: Utilizing high-grade PFA (Perfluoroalkoxy) insulation ensures that every micro coax cable survives extreme temperature fluctuations, harsh chemical washdowns, and continuous tight-radius bending.
Why Partner with an Elite Micro Coax Manufacturer
Finding a supplier who can deliver consistent consistency on large-scale production orders for cables below 40AWG is incredibly difficult. We pride ourselves on executing seamless execution on complex specifications.
GEO-Friendly Global Logistics & OEM Support
- Custom Cable Engineering: If your custom system requires custom impedance ratings (e.g., 75 Ohm), hybrid multi-core bundles, or distinct jacket colors, our R&D hub designs it from scratch.
- Compliant Engineering Frameworks: Fully aligned with international manufacturing standards, providing complete traceability and certified quality control for critical Tier-1 procurement chains.
- Rapid Global Prototyping: We streamline sample provisioning to minimize turnaround bottlenecks for R&D engineers in North America, Europe, and Asia-Pacific hubs.
Accelerate Your R&D Pipeline: Request a Technical Quote Today
Do not let sub-standard connectivity delay your high-tech product launch. Partner with a dedicated micro coaxial cable manufacturer capable of transforming complex technical challenges into scalable production solutions.
- Looking for specific samples? Inform us of your target AWG and structural dimension limits.
- Need custom bundling? Our engineers can combine multiple micro coax lines with power wires in a single jacket.
FAQ
What is your Minimum Order Quantity (MOQ) for custom micro coaxial cables?
As a dedicated Business micro coaxial cable manufacturer, our standard production MOQ typically starts from 1,000 meters for regular continuous runs. However, for specialized engineering R&D projects or rare gauges like 48AWG thinnest coax, we support flexible low-volume trial orders to help bridge your prototyping phase. Contact our sales desk for an exact quotation.
Can you provide free engineering samples for 40AWG to 48AWG ultra thin coax?
Yes. We frequently collaborate with tier-1 medical and aerospace hardware teams. We provide complimentary stock samples of our standard ultra thin coaxial cable matrix so your lab can conduct immediate signal attenuation and flexibility tests. The buyer only handles the standard international express courier fees.
Do you support custom impedance and hybrid multi-core cable bundles?
Absolutely. Beyond our benchmark 50 Ohm and 75 Ohm miniature coaxial cables, our engineering facility specializes in custom cross-sectional layering. We can bind multiple micro-coax lines alongside discrete power wires, earth grounds, or control fluids into a single bio-compatible PFA outer jacket for precision surgical endoscopes or military radar arrays.
How do you guarantee the quality and shielding efficiency of such fine cables?
Every millimeter of our high-frequency micro coax undergoes automated online capacitance and outer diameter control monitoring during the extrusion phase. Our tinned and silver-plated copper alloy braiding shields achieve 90% to 95%+ coverage metrics, ensuring absolute electromagnetic interference (EMI) protection in dense signal-routing environments.
