Ultra thin Micro Coax 40AWG-48AWG
Thickness Tolerance low to 0.003mm
Connect with Global Top Market, Break the Limit
Patented High Speed Extreme Flexible AR and VR link Solution
Medical Cables applied in MRi,X-ray,Ultrasound Imaging

Your Trusted OEM/ODM RF Coaxial Cable Assemblies Manufacturer

Operating from our 3,500m² state-of-the-art facility, HiFlexlink delivers precision-engineered high-flex coaxial cables and complex micro-coaxial wire harnesses for medical, industrial, and high-frequency RF applications. 100% impedance matched.

Get a 24-Hour Custom Quote

Hot Seller

48AWG ultra Micro coaxial cable 50ohm OD 0.17mm Green

Ultra-Thin Micro Coaxial Cable

Premium 36AWG down to 48AWG (OD 0.17mm) micro-coaxial bulk wires engineered for tight spaces.

Multicore coaxial

High-flex multicore coaxial cable assemblies. Custom FEP/PET/PFA jacket options optimized for endoscope camera cables and high-definition medical imaging devices.

50pf/M low capacitance Ultrsound probe cable max to 256 cores

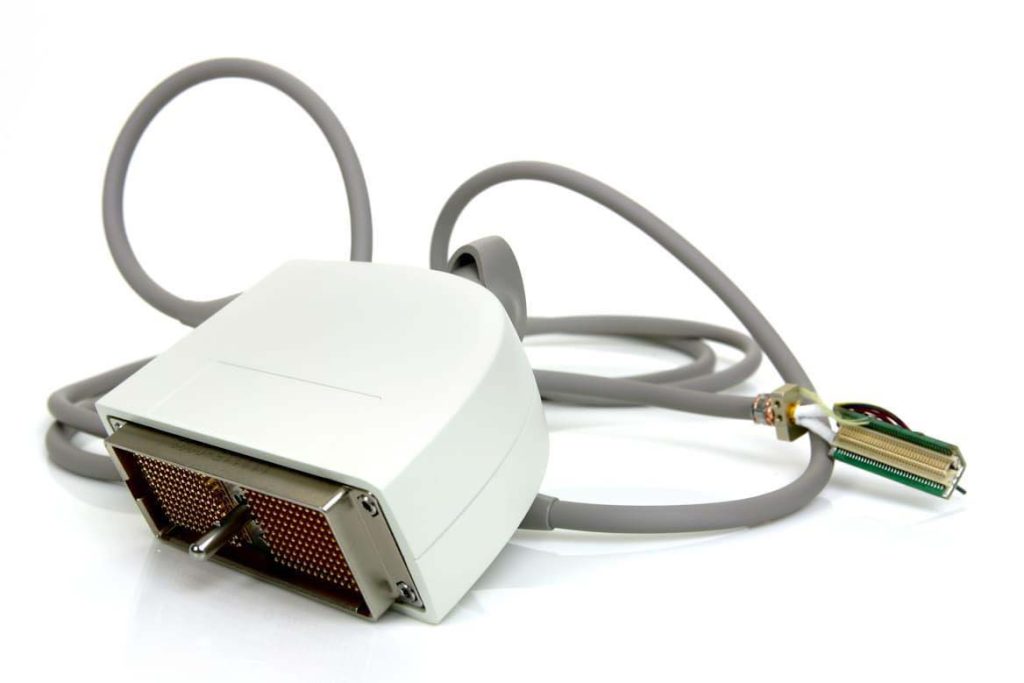

Ultrasound Probe Cable

High flex life ultrasound probe cable assemblies. Supporting up to 256 cores with ultra-low capacitance (50pf/M). Ideal for OEM manufacturing and medical transducer repair.

USB 3.1,3.2,4.0 Bulk Cable

Industrial & Medical USB 3.2/4.0 customized assemblies. Patented high-flex, low-attenuation design with outer diameter as small as 2.6mm for dynamic robotic linkages.

MRi cable with multicore RF coxial and Signal wire

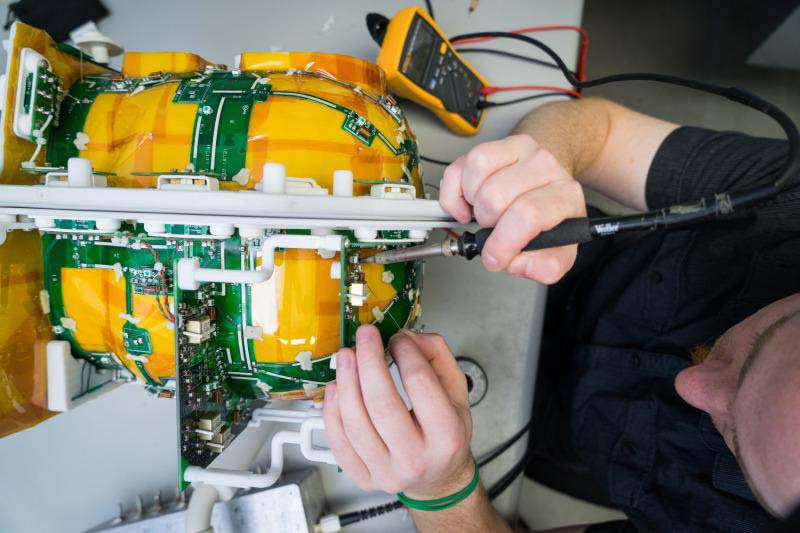

MRi Cable-non magnetic cable

Non-magnetic MRI coil cable integration. Combining micro RF coax and signal wires with zero proton signal interference for high-precision medical scanning systems.

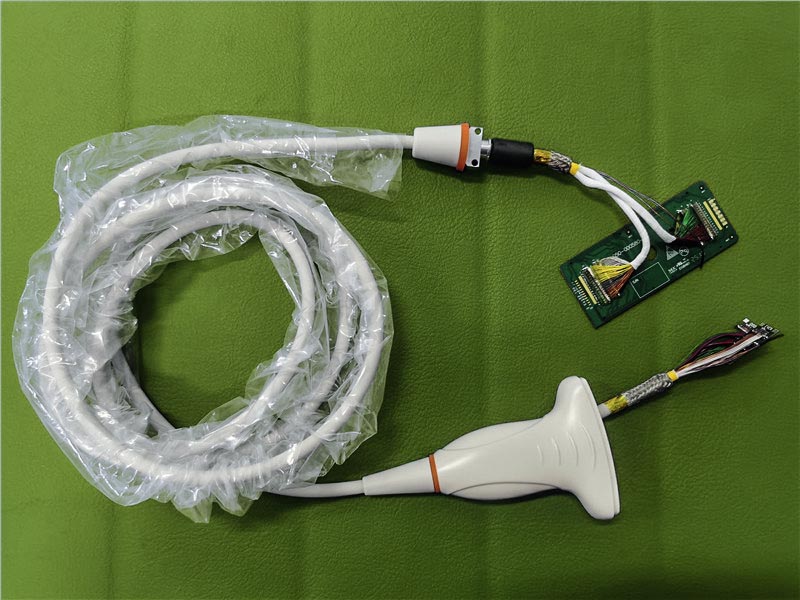

Mindray-C5-2e-Transducer-cable-subassembly

Custom RF Cable Assemblies

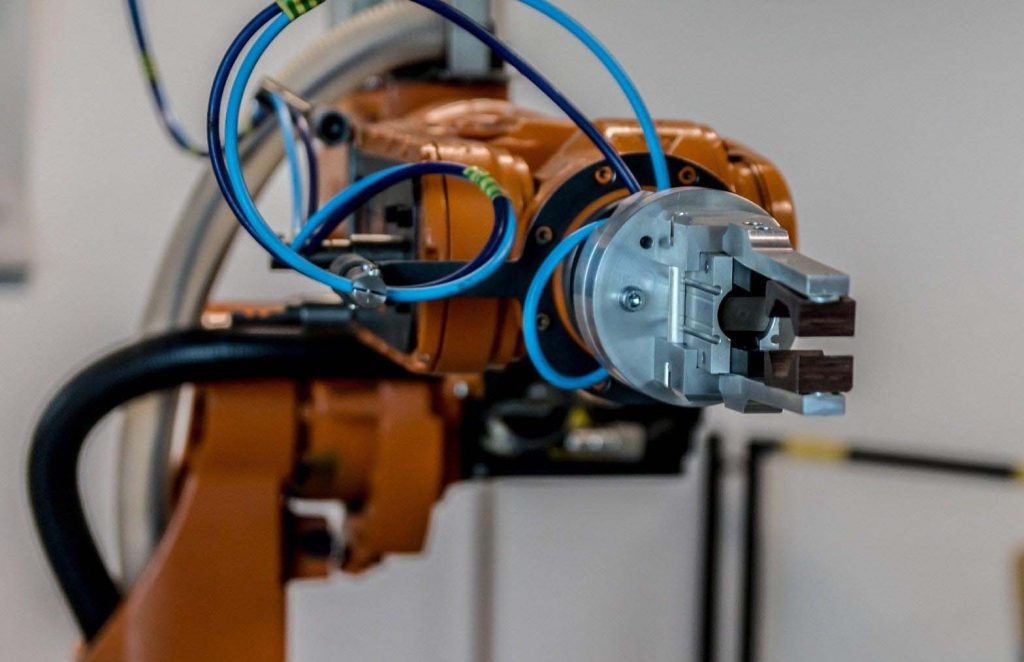

Custom terminating, overmolding, and assembly services for extreme-flex robotic, drone, and high-frequency antenna applications.

Email Us

Sales@rf-coaxial.com

Call Us

+(86) 13076847815

we are open

8:00 – 6:00

location

shajing, Shenzhen, China

Field we are Serving

Efficient And Reliable Contract Manufacturer and Assembler

40AWG-34AWG micro rf coaxial appliced in Mobile digital field

Mobile Digital Equipment

Ultra-thin 40AWG-34AWG micro RF coaxial solutions applied in ultra-compact smart devices, available in custom round or high-flex flat ribbon configurations.

CCTV surveillance system

High-reliability 44AWG-42AWG micro coaxial cable assemblies designed for 360° pan-tilt-zoom (PTZ) CCTV surveillance systems requiring continuous rotation lifecycles.

drone technology

Lightweight 44AWG-48AWG ultra-thin coaxial cables optimized for drone gimbal cameras and aerospace robotics, balancing extreme weight reduction with RF flex life.

Medical equipment

36AWG-26AWG Non Magnetic rf coaxial used in MRi coil
36AW-46AWG in Ultrsound Probe and Endoscope imaging devices .Optimiesd with high flex coax cable configurations for dynamic scanning.

Extreme flexible and thin VR cable-vr oculus quest 3

VR Link Cable

Ultra-flexible and thinnest VR link cable assemblies. Cable diameter minimized to 2.5mm with high flex life. Custom overmolding services available.

Multicore rf coaxial used in high speed USB 4.0 TBT4.0 Cable

High Speed IF cable

Multicore RF coaxial engineering for high-speed USB 4.0 and Thunderbolt 4.0 (TBT4.0) linkages. Complete custom assembly and precision overmolding services available.

our process

We Offer A Total solution

We are Young and Proffesional.Cable Extrudig Industry is a tradtional field.Without absolutely technical advantages and expertise,no capital will make investment.

we Make OEM and ODM service for domestic and overseas brands.We also provide Sourcing and high end cable Testing service

Step 1

Custom ICE Cable Cross Section cutting diamgram

Design a Multicore coax

example:30 wire ICE cable with 22C×46AWG+28CX40AWG

Step 2

30 wire ICE cable cutting edge under 2D Optical measuring device

Make the design come true

High concentricity；
reasonable Core Wire Arrangement；
perfect Uniformity of the Insulating Layer:

Step 3

TDR Testing

Low VSWR;
Low Skew
Low Attenuation(dB/1M)

Trusted By Over 200+ Clients
Worldwide Since 2022

562

Projects done

20+

years of experience

testimonials

What Our Clients
Say About Us.

Grow up with us from a 1000㎡ Factory into 3500㎡ in 3 years

“when i first inquiry a Multicore RF coaxial cable,i only show them a picture and give some basic information i measured from a MRI coil,they soon tell me the exactly spefication,and send me some samples to test the Non Magnetic features,and No proton signal interference” Amazing Team!!!

Alexa Curcuy

-Resonancia Magnética y Tomografía Computada

“i am a Mr Question.Many years ago,i visit a Micro RF coxial production machinery,they told me:”the cable production capability depends on the machine you use,and promote me their most expensive machines…
i am thinking now that i must be cheated.because some hign end high precise cable i still need Mitsuba”

Daniel Cruz

Washington, MD

“I send Ian Strong a VR link cable and expres my simple requirement:”i need the cable to Transmit as long as possible,as small as possible”.”Ian send me bundled of cable datasheet,and send me some cable sample(some with coonnector,some are just USB bulk cable material,which were said to be awarded with patents ”

Guillermo J. Gómez

Miami, FL

OEM/ODM Customization Capabilities

Capability	Production Specification Range
Conductor Wire Gauge	From 36 AWG down to 48 AWG (Ultra-fine micro coax)
Impedance Tolerance	Standard 50Ω / 75Ω, custom 30Ω to 150Ω ($\pm2\%$ tolerance)
Jacket Material Options	Medical-grade Biocompatible TPU, PFA, FEP, ePTFE, Silicone
Flex Life Performance	High flex life configurations withstanding up to 10M-50M cycles
Termination & Assembly	Microscopic soldering, precision laser stripping, overmolding

Frequently Asked Questions (FAQ)

What is the Minimum Order Quantity (MOQ) for custom RF cable assemblies?

We are highly supportive of R&D and prototyping stages. While the industry standard requires massive volume, HiFlexlink offers a flexible low MOQ depending on the specific wire gauge (such as 42AWG-48AWG micro coax) to help get your project verified fast.

Do you provide 100% testing reports for high-flex coaxial cables?

Yes. Every batch of custom cable assemblies undergoes 100% strict automated TDR testing for impedance control, return loss (VSWR), attenuation, and electrical continuity before shipping. Full testing datasheets are provided

Can your micro coaxial cables withstand continuous motion in medical robotics?

Absolutely. Our high flex life coax series is explicitly engineered with high-tensile alloy shields and premium jackets (like slick FEP or flexible TPU) to endure continuous bending, twisting, and drag-chain tension in dynamic imaging and robotic environments.
