Welcome to our Cable Extruding workshop.This will give you an rough idea about rf coaxial cable extruding.As a leading RF Coaxial Cable Manufacturer, our state-of-the-art production facilities are engineered to deliver high-performance cables tailored for telecommunications, aerospace, industrial IoT, and 5G applications. Our manufacturing process integrates advanced equipment and stringent quality controls to ensure compliance with international standards like MIL-C-17, GB/T 14864, and RoHS directives.

Core Production Equipment & Expertise

Conductor Processing: Utilizing precision wire drawing machines and multi-strand twisting systems to craft center conductors from oxygen-free copper or copper-clad aluminum, ensuring minimal signal loss and optimal conductivity.

Insulation Layer Extrusion: High-frequency extrusion lines apply uniform PTFE (polytetrafluoroethylene) or foamed PE/PFA insulation, achieving precise dielectric constants (ε) for stable impedance (50Ω/75Ω) and low attenuation.

FEP insulation extrusion process for high frequency RF coaxial cable — FEP Extruding

High-Velocity Dielectric Coating

Our high-frequency extrusion lines apply uniform PTFE or foamed PE/PFA insulation directly onto the conductor. This process achieves precise dielectric constants crucial for guaranteeing stable 50ohm or 75Ω characteristic impedance and ultra-low attenuation.

precision micro coaxial cable extrusion manufacturing equipment — State-of-the-art high-speed wire drawing and PFA extrusion lines ensuring consistent electrical geometry.

Consistent Electrical Geometry

Equipped with real-time laser diameter gauges, our automated production setup monitors insulation thickness continuously. This ensures microscopic geometric consistency throughout the entire spool, preventing signal distortion in microwave applications.

Shielding Technology: Automated braiding machines layer tin-plated copper or aluminum-magnesium alloy shields with >95% coverage, effectively suppressing EMI/RFI interference while enhancing mechanical durability.

piral silver plated copper tape shielding layer close-up — Silver plated Copper tape Spiral Shield

Helical Tape Shielding

We utilize precision spiral wrapping machinery to apply silver-plated copper tape shields. This method delivers 100% optical coverage and exceptional electrical conductivity, establishing a robust defense against low-frequency electromagnetic interference.

High speed automated coaxial cable braiding shield machine — Braiding Shield Machine

High-Density Wire Braiding

Our multi-carrier automated braiding machines layer tin-plated copper or aluminum-magnesium alloy shields with >95% coverage. This enhances mechanical durability and flexibility while effectively suppressing high-frequency EMI/RFI interference.

Jacket Formation: Customizable PVC or FEP ,PFA outer sheaths are extruded with temperature-resistant formulations, ideal for harsh environments.

Fluoropolymer FEP outer jacket extrusion crosshead — Jacket Extruding

Precision Crosshead Extrusion

Our advanced extrusion crossheads apply tough, uniform fluoropolymer sheaths (FEP/PFA) directly over the braided shield. This stage ensures exact wall thickness and tight concentricity control, which are vital for preventing signal leakage and safeguarding the internal cable components.

Teflon PTFE FEP jacket extrusion line factory workshop — Telflon Jacket Extruding line

Heavy-Duty Production Lines

Operated in a fully controlled climate, our continuous jacket extrusion lines are optimized for high-temperature resins. This industrial-scale infrastructure guarantees scalable monthly capacity while maintaining flawless structural integrity for cables deployed in harsh, corrosive, or extreme-temperature environments.

Quality Assurance

Every cable undergoes rigorous testing, including VNA (Vector Network Analyzer) validation for impedance matching, TDR (Time-Domain Reflectometry) for signal integrity, and environmental simulations for thermal/mechanical resilience.

Signal Integrity Validation

Every batch of RF cables undergoes rigorous validation using Vector Network Analyzers (VNA) and Time-Domain Reflectometry (TDR). This guarantees precise impedance matching, low VSWR, and flawless transmission performance before shipment.

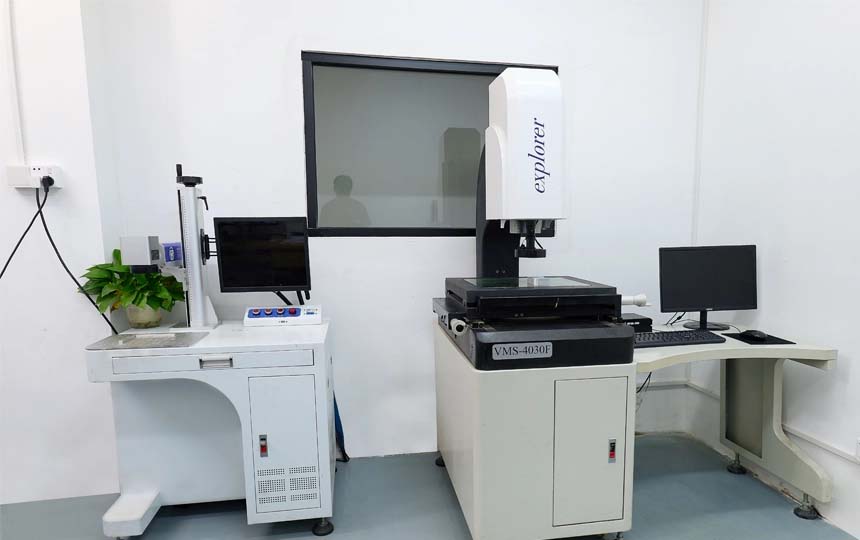

2D optical measuring device for coaxial cable dimension inspection factory — 2D Optical measuring device

2D Optical Dimension Inspection

To guarantee strict mechanical conformity, our quality lab utilizes high-precision 2D optical measuring devices. This non-contact inspection system accurately verifies the microscopic concentricity, ovality, and structural dimensions of the finished coaxial cables, ensuring flawless connector mating and stable return loss (VSWR).

Quality Assurance & Certifications

Our commitment to ISO 9001 certifications ensures traceability and reliability across industries

Advanced Production Supporting Facilities & Warehousing

Beyond our core extrusion and shielding lines, our manufacturing facility is equipped with a complete suite of supporting infrastructure to ensure seamless OEM/ODM mass production. This includes heavy-duty high-speed cable collecting systems, multi-layer precision wrapping machinery for specialized microwave dielectric tapes, and a highly organized climate-controlled warehouse. Every raw material spool and finished RF coaxial cable reel is carefully managed to guarantee safe storage and streamlined global logistics.
