Overview
In the medical device manufacturing and clinical maintenance sectors, interconnect systems must deliver flawless signal integrity under extreme physical stress. HiFlexlink design and manufacture premium medical silicone cables and silicone insulated wires specifically engineered to withstand repeated bending, chemical disinfection, and high-temperature sterilization.
By combining biocompatible, ultra-flexible silicone rubber outer jackets with high-grade inner insulation materials like FEP and PFA, our composite cables eliminate the common engineering trade-offs between mechanical tensile strength and electrical performance. Whether you are designing next-generation diagnostic tools or sourcing a rugged 3 core silicone cable for patient monitoring, our tailored wire architectures provide the precise gauge, shielding, and flexibility your clinical environment demands.
Product Categorization & Engineering Specs
Multi-Conductor & Shielded Cables (Low-Noise Signal Routing)
Optimized for clinical instrumentation where signal attenuation and electromagnetic interference (EMI) must be minimized. These designs feature precision twisted pairs and advanced shielding configurations to secure error-free data transfer

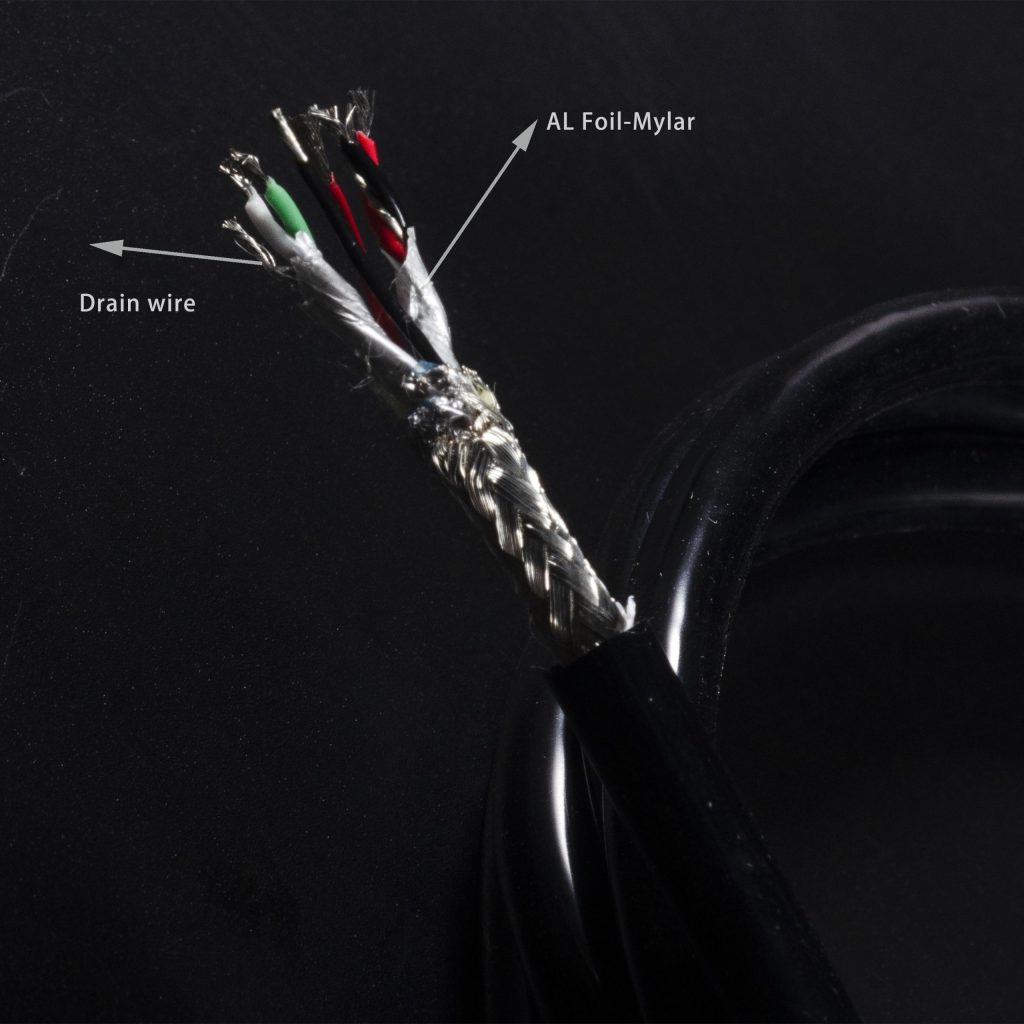

6 wire silicone cable with 2 wire 24AWG and 2 Twisted Pair 28AWG OD 6.5mm

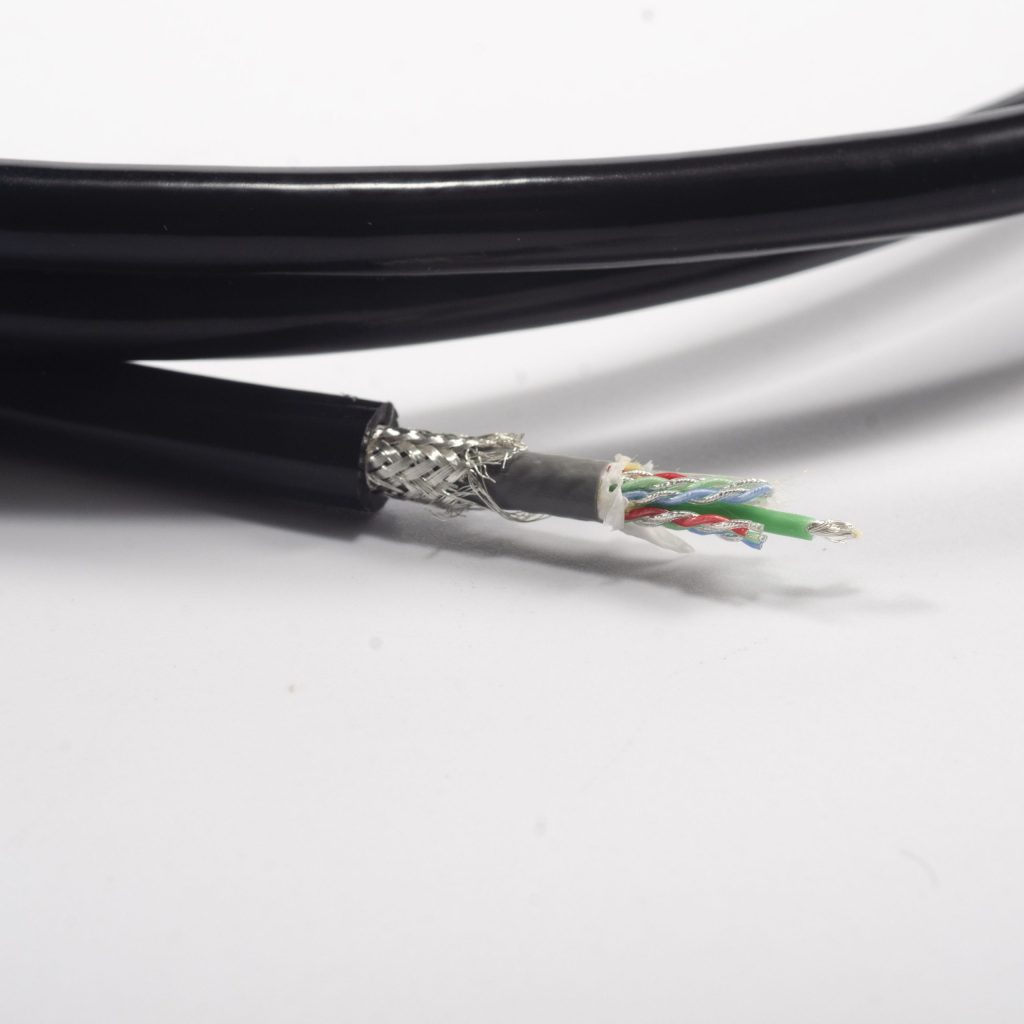

Custom Silicone Coated Wire | 19 Core Medical Cable with 9 32AWG UTP and 1 wire 22AWG

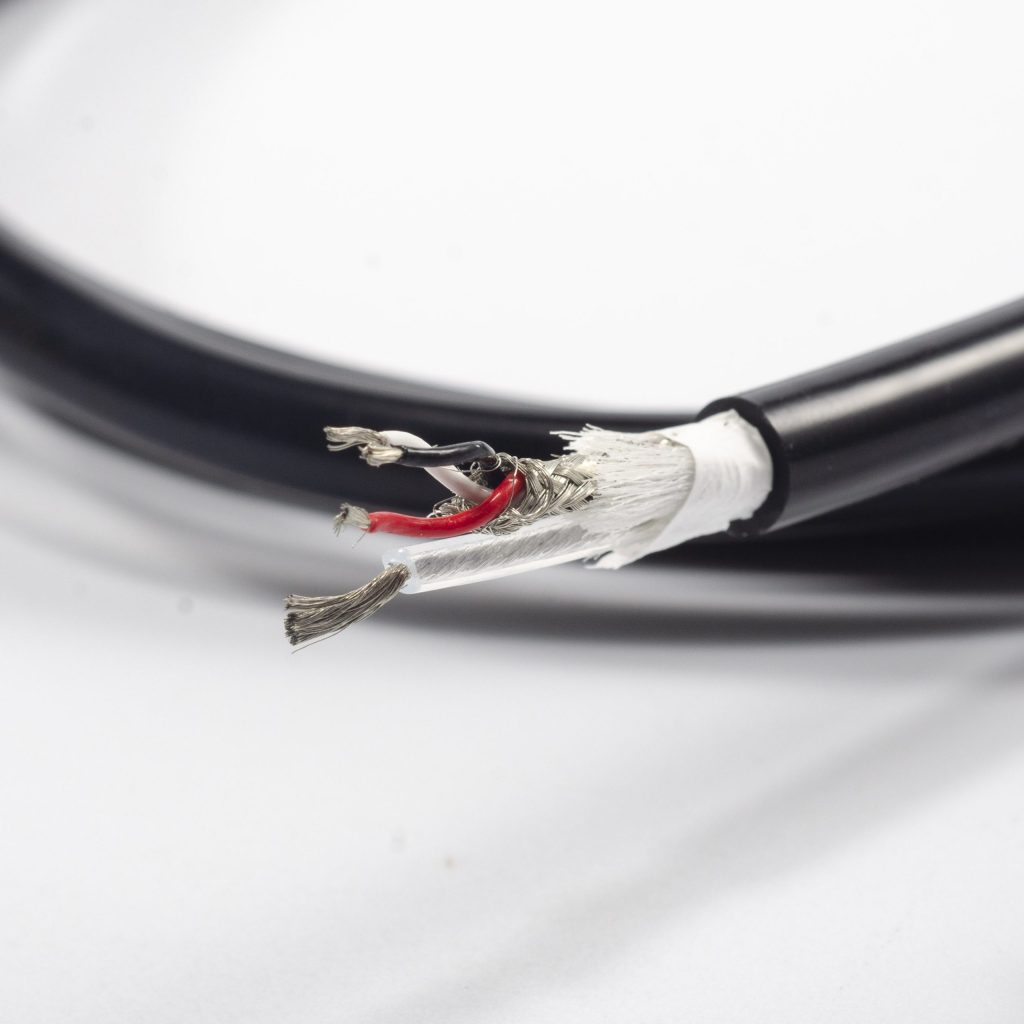

Dual Shielded Silicone Cable | 4 Core Hybrid Medical Wire

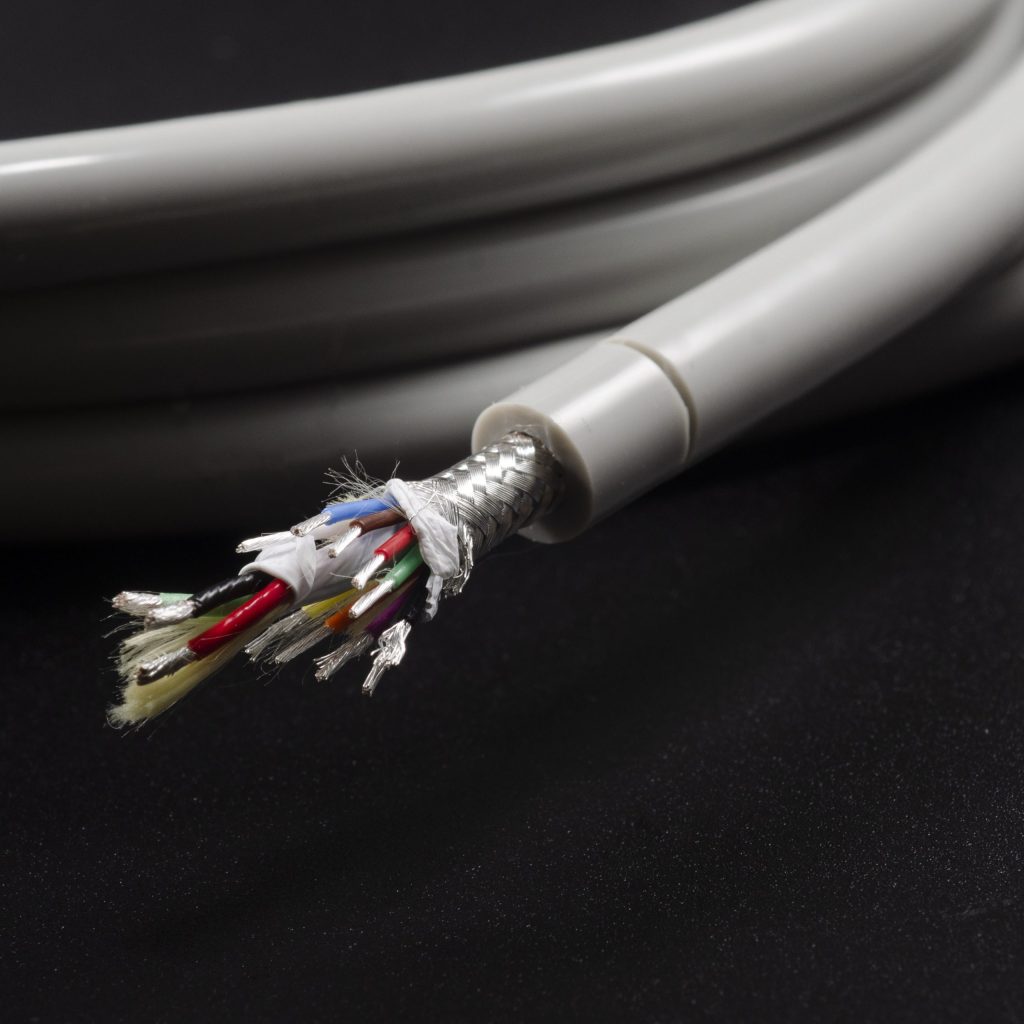

14 conductor cable with 3 wire 22AWG and 11 wire 26AWG Braiding Shield

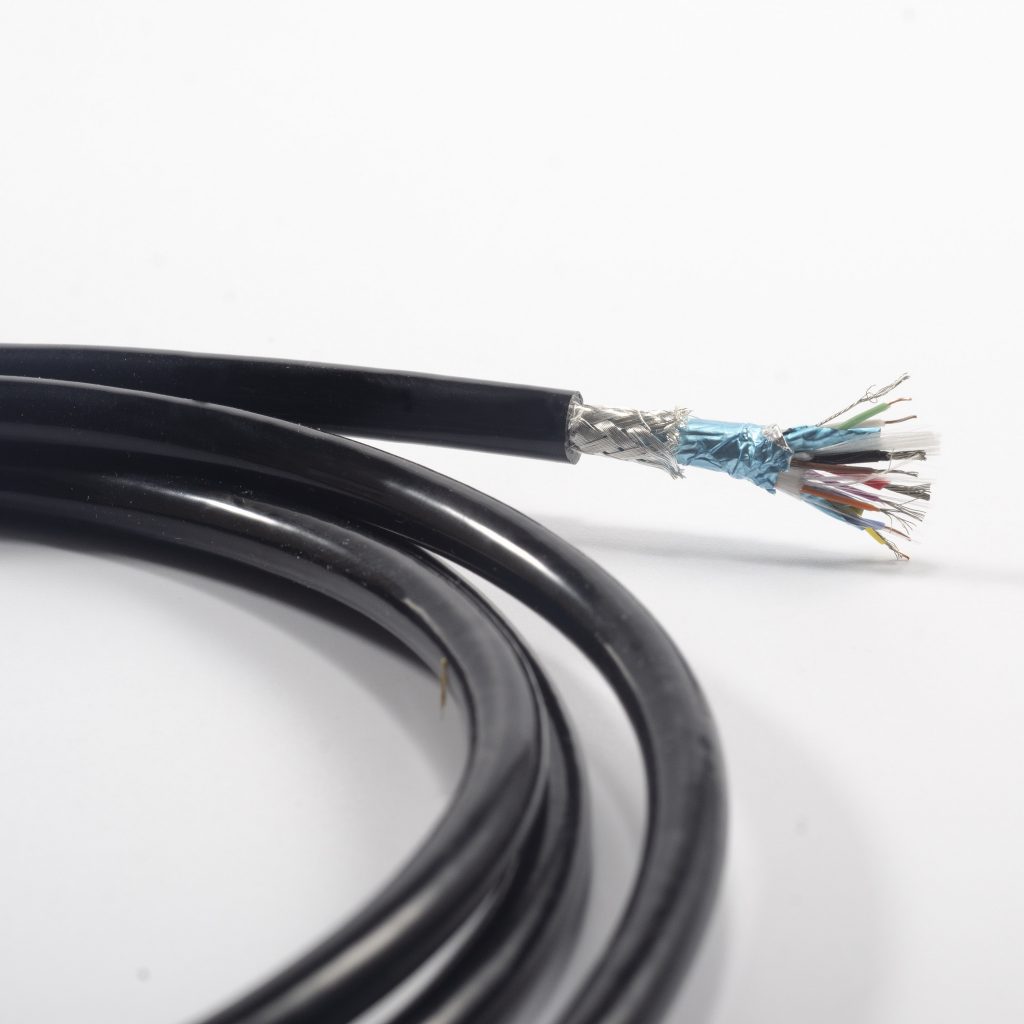

10 Wire Shielded Silicone Cable | Medical Grade Wire
Hybrid Composite & Coaxial Cables (High-Frequency Imaging & Controls)
Engineered for complex surgical control systems and high-frequency medical imaging (such as endoscopy and ultrasound arrays). These cables consolidate high-bandwidth coaxial lines and power routing within a single silicone coated wire jacket.
6 core silicone cable with 2 coaxial 30 AWG wire and 4 core 28 awg teflon wire OD 5.6mm

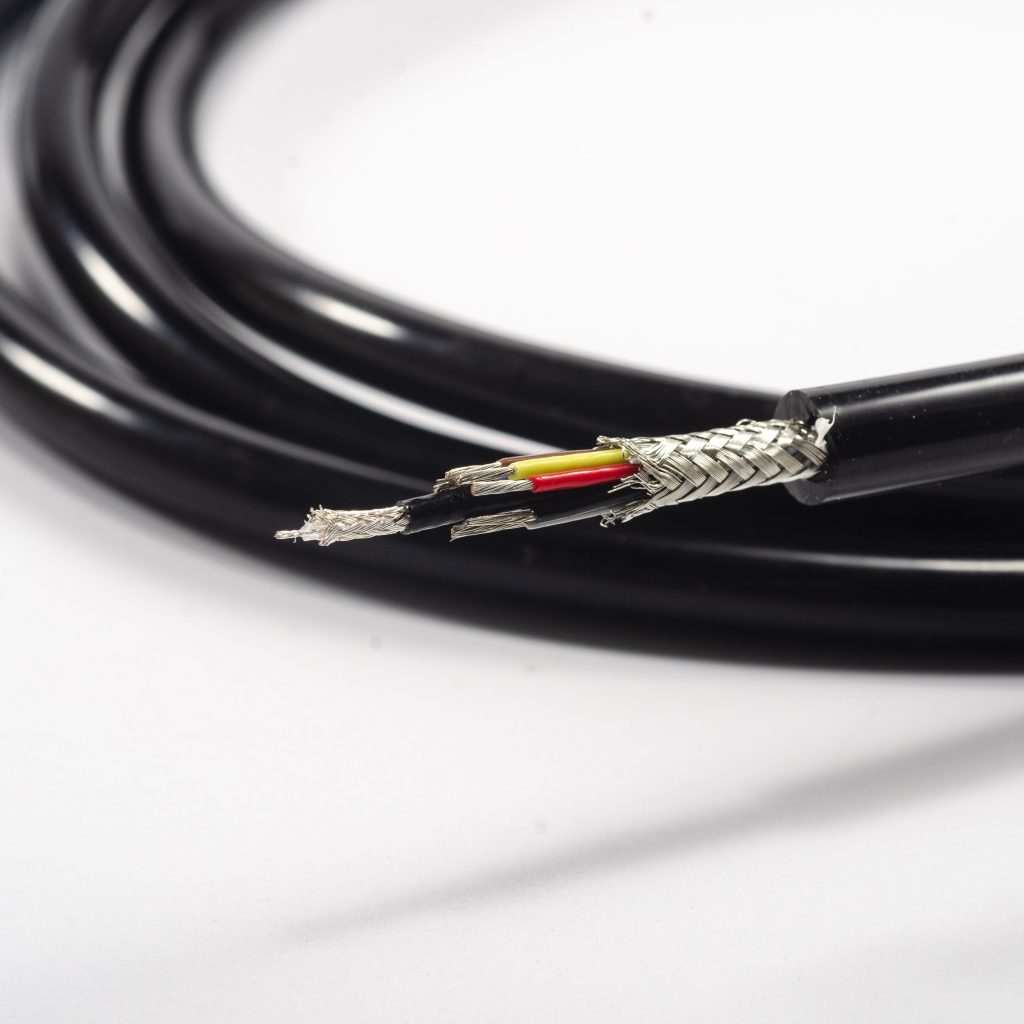

Custom Silicone Coaxial Cable | Endoscopy Handle Wire
High-Current & Heavy-Gauge Silicone Wires (Electrosurgical Power)
Designed to transmit significant power or serve as robust medical grounding lines without sacrificing flexibility. These heavy-gauge options utilize high strand counts of micro-conductors to remain completely limp and pliable.

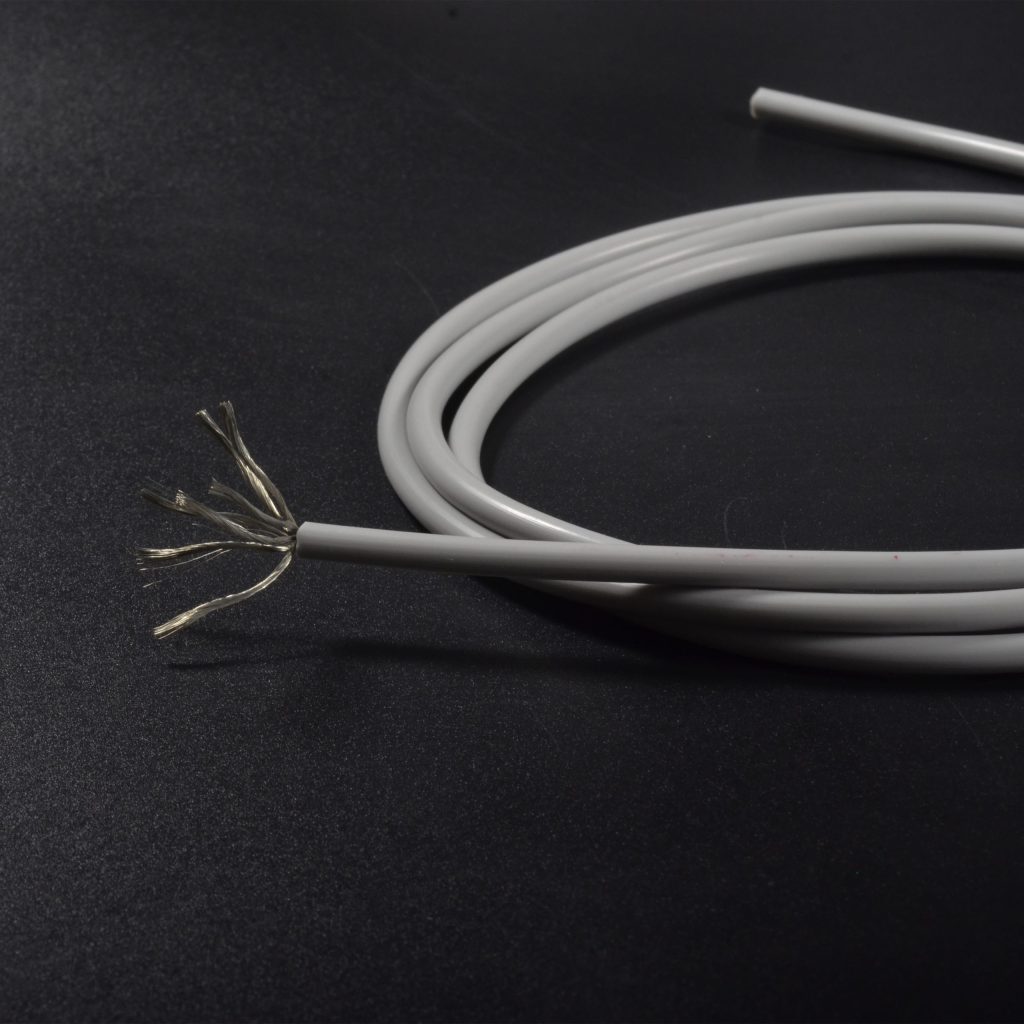

Single core Medical grade16 awg silicone wire OD4.0mm

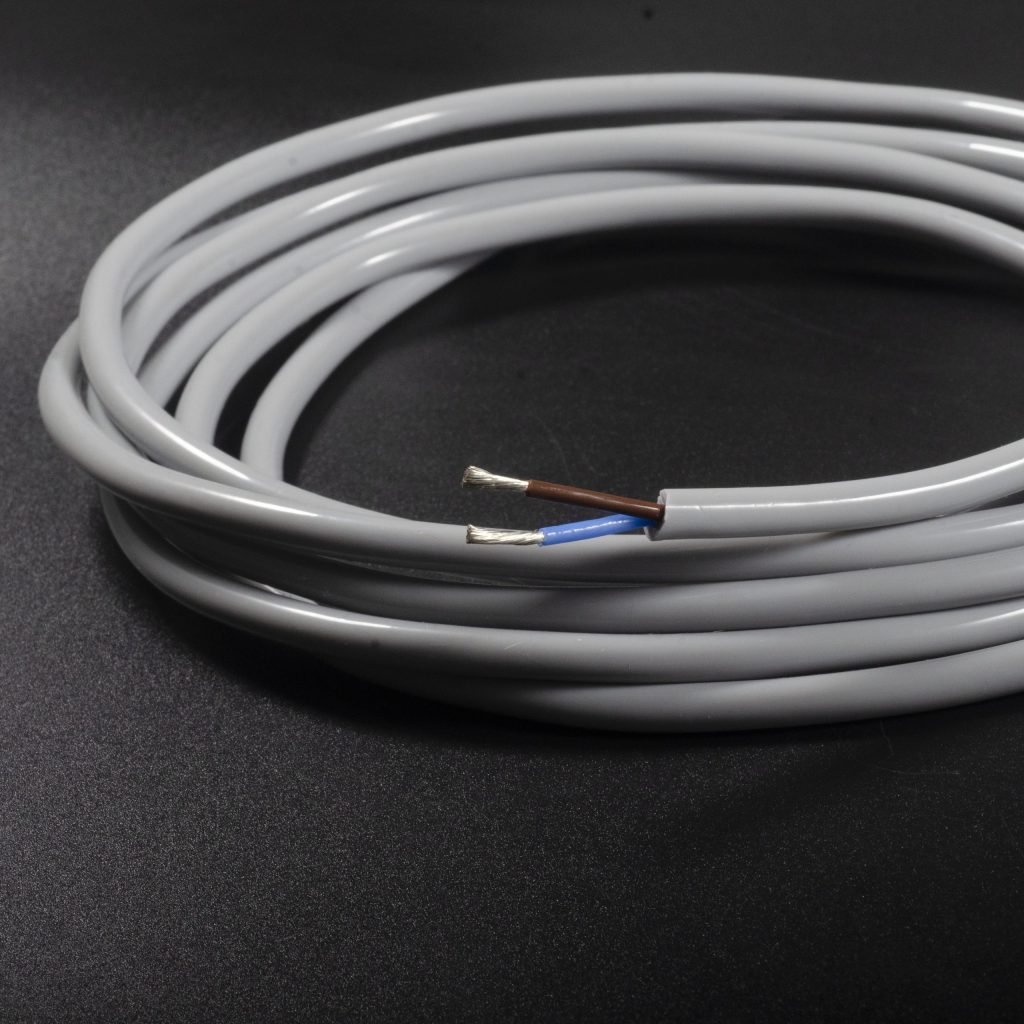

2 Conductor 18 gauge silicone wire-OD 5.3mm
2 conductor 22 awg silicone wire OD4.0mm Medical Grade
OEM Medical Device Repair & Custom Harnesses
Dedicated solutions targeting medical device maintenance, refurbishment, and aftermarket repair. This segment focuses on perfectly matching exact OEM mechanical specifications.
16 Core Medical Silicone Cable for Smith & Nephew PowerMax Elite Shaver Handpiece Repair|Silver plated conductor |OD 7.5mm

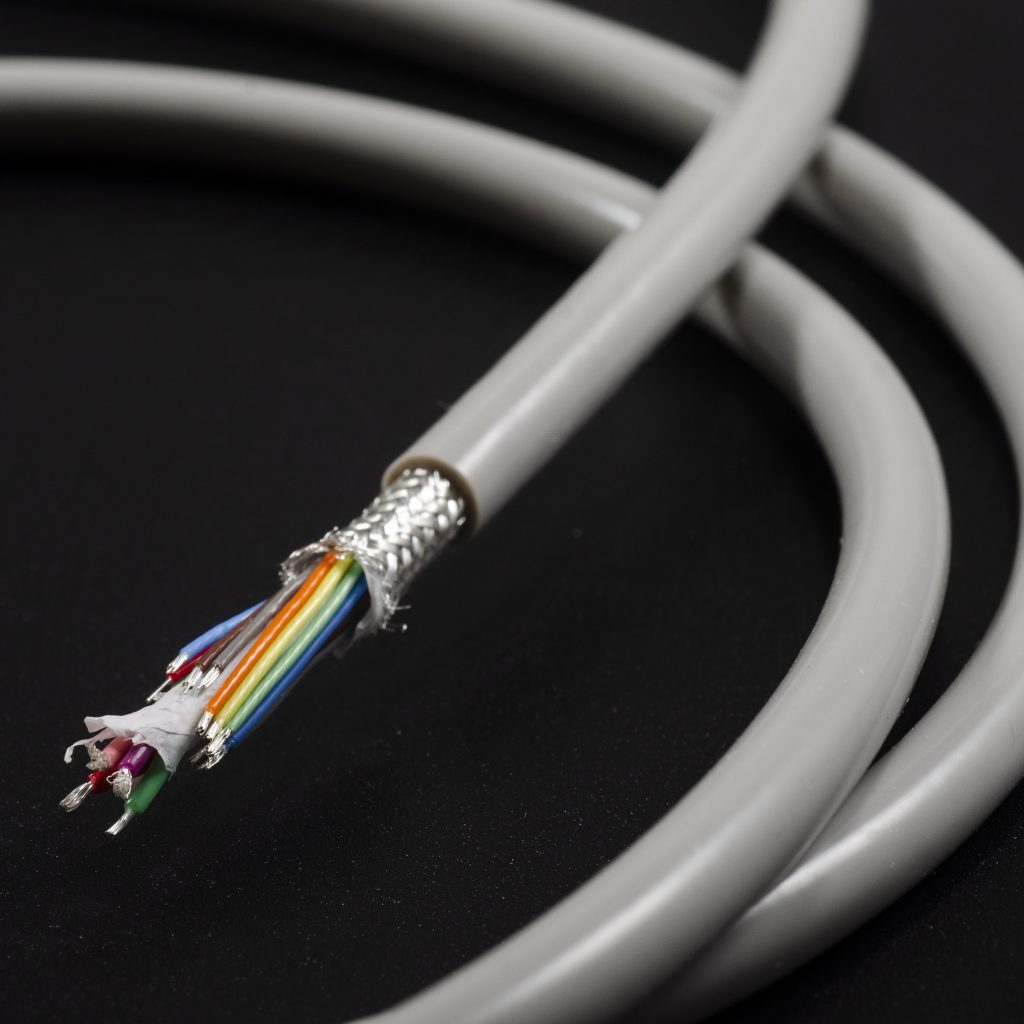

18 Core Shielded Silicone Cable | Composite Medical Wire

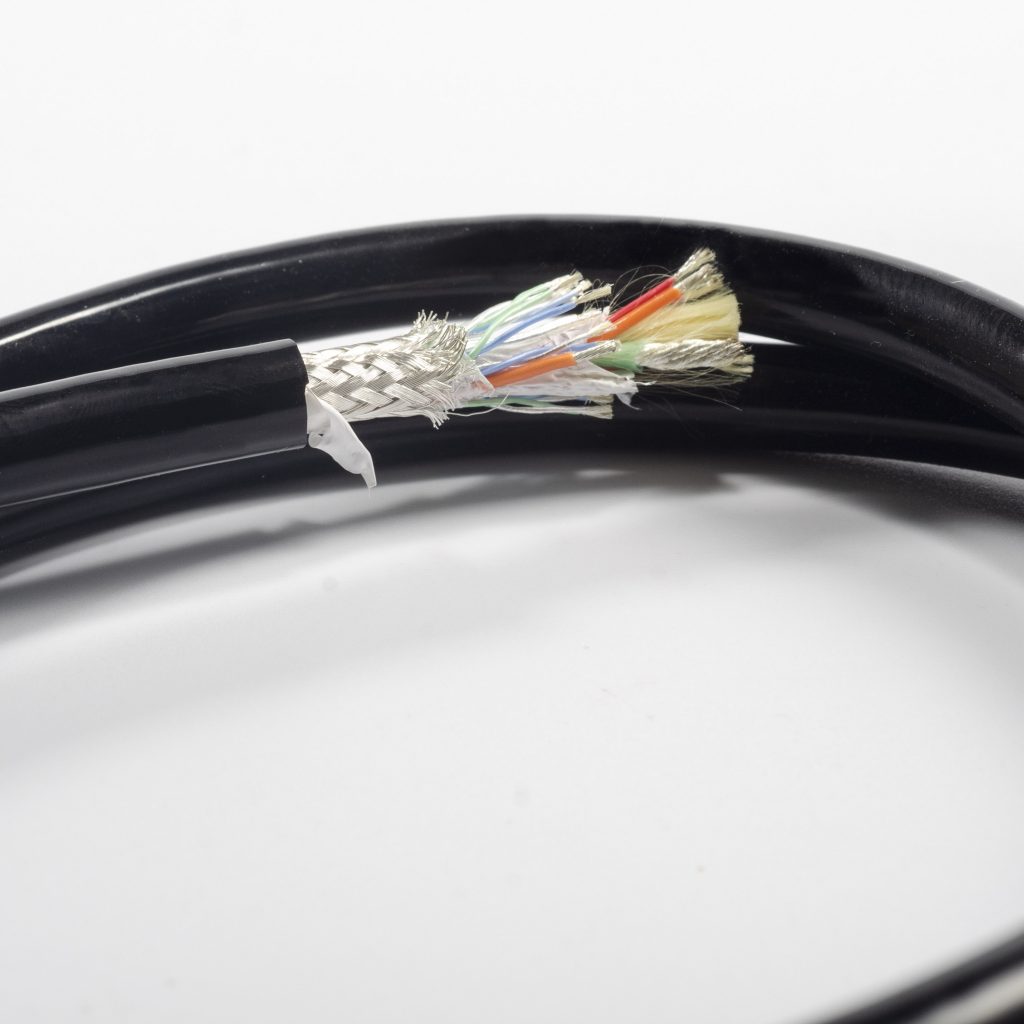

32 Core High Temp Silicone Wire | 12 Pair Medical Cable
Material Selection Guide: Silicone Jacket vs. Inner Insulation
When specifying a high temperature silicone cable for clinical use, the interaction between the outer jacket and inner wire insulation determines the cable’s final lifespan.
| Technical Parameter | Outer Jacket: Medical Silicone | Inner Core: FEP Insulation | Inner Core: PFA Insulation |
| Primary Engineering Role | Biocompatibility, tactile softness, ergonomics, and external shield. | Dielectric stability, low-capacitance, and compact wall thickness. | Maximum heat threshold, extreme chemical resistance, and severe flex-life. |
| Temperature Range | -50℃ to +200℃ | -65℃ to +200℃ | -65℃ to +260℃ |
| Sterilization Resistance | Autoclave (Steam), EtO, Gamma | Excellent chemical disinfectant immunity | Maximum chemical & high-pressure steam immunity |
| Best Used For | Ergonmic handpieces & patient-contact leads. | Patient monitoring sensor arrays & multi-core grids. | Electrosurgical knives, high-frequency ablation, and micro-signal routing. |
Technical FAQ for Medical Cable Procurement
What makes your 16 gauge and 18 gauge silicone wires ideal for electrosurgical devices?
Standard industrial large-gauge wires are stiff and heavy, causing hand fatigue for surgeons. Our 16 gauge silicone wire (OD 4.0mm) resolves this by utilizing 392 strands of 0.07mm micro tinned copper. This multi-strand layout yields an ultra-flexible silicone wire capable of delivering high currents to electrosurgical generators and reusable electrodes while remaining completely pliable. For dual-channel systems, our 18 gauge silicone wire with FEP inner cores offers superior heat resistance and stable power delivery.
Can your silicone insulated wire survive repeated Autoclave cycles?
Yes. Our silicone insulated wire systems are explicitly engineered for reusable medical equipment. The cross-linked structure of medical-grade silicone rubber does not degrade under repeated steam autoclave sterilization cycles, while the inner PFA or FEP insulation maintains its dielectric strength, preventing internal short circuits even after hundreds of reprocessing cycles
Do you offer hybrid coaxial silicone cable customization?
Yes. HiFlexlink specializes in custom internal architectures. We can combine multi-conductor control elements (like 24 AWG or 28 AWG Teflon wires) alongside low-loss coaxial 30 AWG lines inside a single silicone outer jacket. This allows high-frequency medical imaging data and low-voltage power supply to run through a single integrated harness, which is ideal for endoscopy and surgical shaver handpieces.
Request a Custom Medical Cable Engineering Quote
Do you require a specific conductor count, an ultra-thin outer diameter (OD), or a custom high temperature silicone cable layout? Fill out your project parameters below, and our interconnect engineering team will provide a tailored quote within 24 hours.
- Available Gauges: 16 AWG / 18 AWG / 22 AWG / 24 AWG / 26 AWG / 28 AWG / 40 AWG
- Insulation Matrix: Silicone / FEP / PFA / Teflon Wire Inner
- Shielding Options: Tin/Silver-Plated Copper Braiding, Served Shields, Spiral Shields, Drain Wires
