16 Core Medical Silicone Cable for Smith & Nephew PowerMax Elite Shaver Handpiece Repair|Silver plated conductor |OD 7.5mm

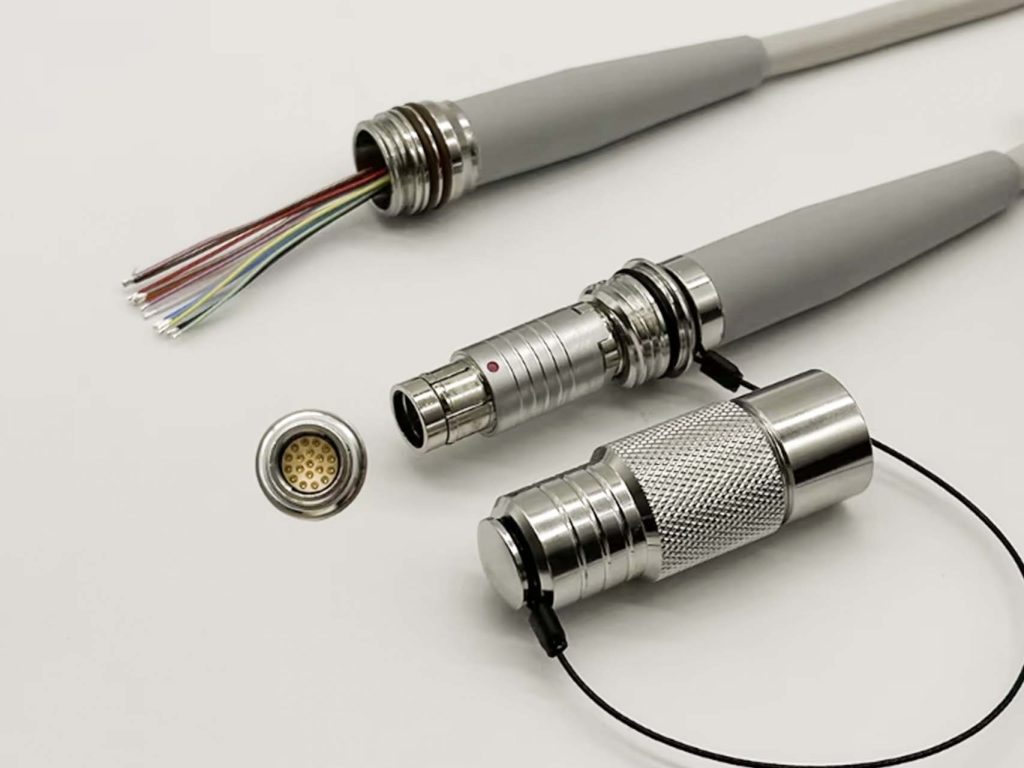

The 16 Core Medical Silicone Cable (Model: SM-DX-SI-1303) is an industrial-grade, highly flexible cable engineered specifically for demanding healthcare maintenance and shaver handpiece cable replacement projects, such as reference model 72200616.

This composite 16 core silicone cable features a robust hybrid construction: 3 Cores of 22 AWG paired with 13 Cores of 26 AWG. For alternative equipment specifications requiring slightly fewer sensor channels, we also manufacture a rugged 14 conductor cable utilizing an identical dual-gauge power and signal distribution layout. To meet the extreme mechanical stress of arthroscopic and orthopedic surgeries, every single stranded silver-plated copper conductor is integrated with a 200D Kevlar core. Extending this heavy-duty surgical ergonomics to dental applications, our custom 11 conductor medical cable also integrates multi-gauge isolation to withstand identical clinical environment stress, providing unparalleled tensile strength and flex life. The inner insulation utilizes premium, imported Daikin Japan FEP, ensuring excellent dielectric properties, low capacitance, and reliable zero-latency signal routing.

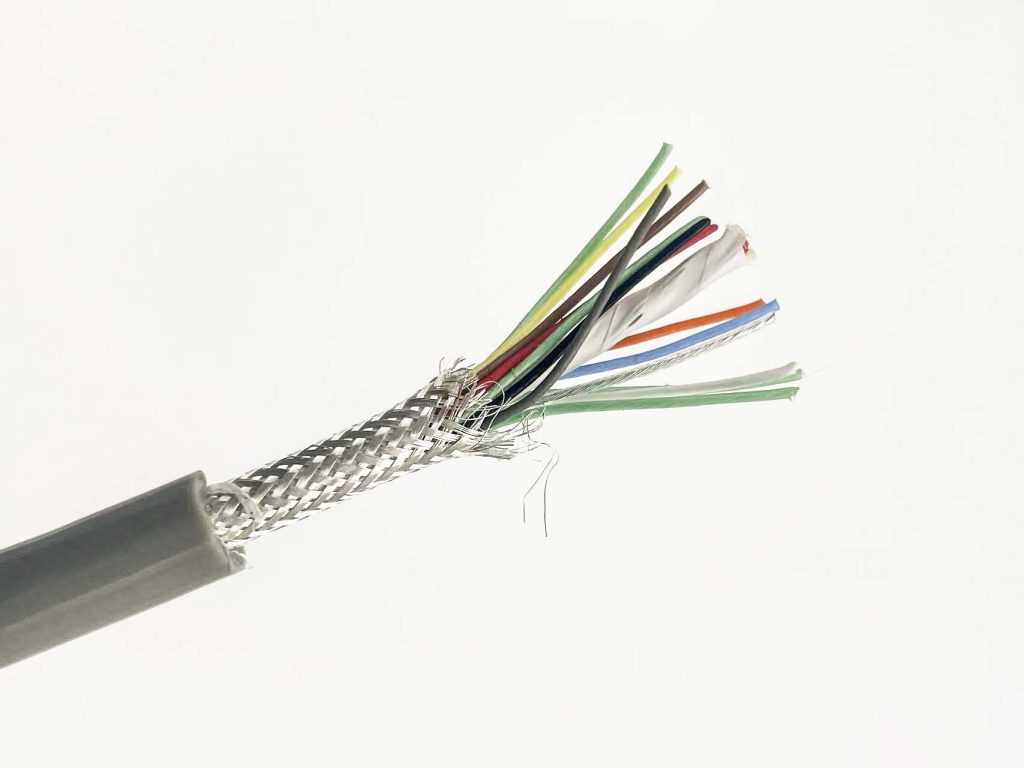

Wrapped in a high-coverage (90%) silver-plated copper braided shield and a pure PTFE binder, the cable offers superior electromagnetic interference (EMI) protection. The outer jacket is extruded from medical-grade silicone rubber (Gray, Shore 60A) with a finished outer diameter (OD) of 7.5 mm± 0.1mm. This biocompatible jacket provides a soft-touch, anti-friction feel and is fully rated to endure repeated autoclave sterilization cycles alongside EtO and Gamma sterilization.

Specification

Cable Name:	16-Core Medical Silicone Cable
Specification Model:	SM-DX-SI-1303

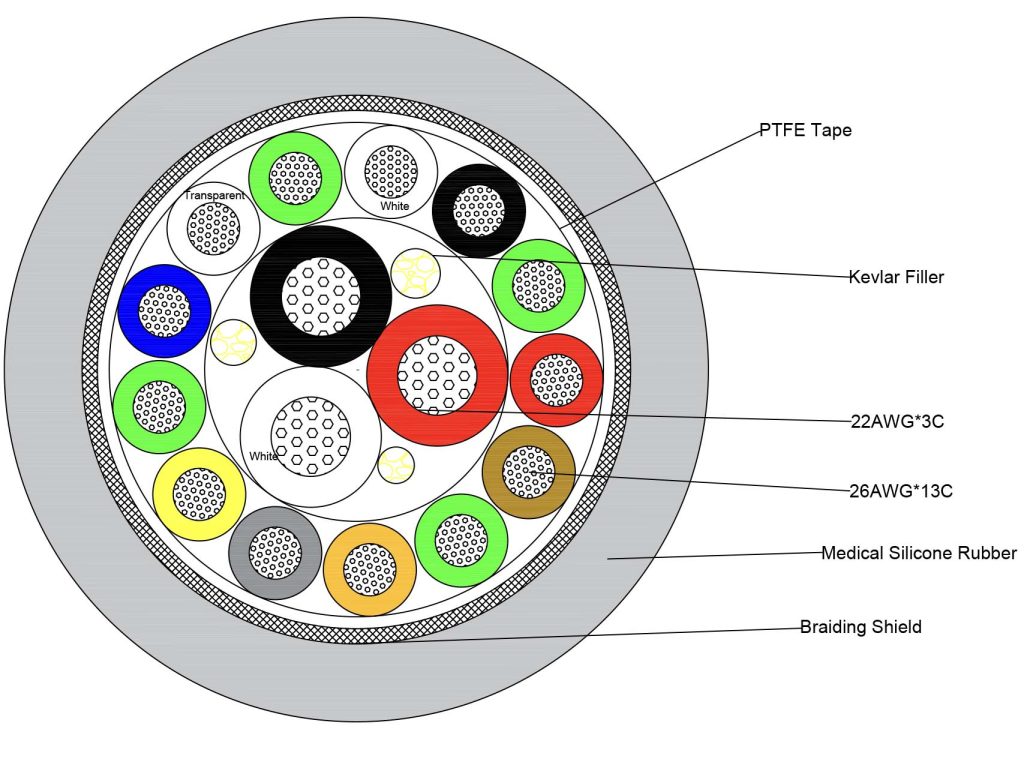

Construction:	3C×22AWG + 13C×26AWG + B + PTFE + Silicone Jacket
Compliance:	RoHS Compliant
Item	A: 3C×22AWG	B: 13C×26AWG
Conductor Material	Silver-plated Copper + 200D Kevlar	Silver-plated Copper + 200D Kevlar
Stranding	65/0.08mm ±200D Kevlar	19/0.10mm ±200D Kevlar
Conductor OD	0.80 mm	0.50 mm
Insulation Material	FEP (Imported, Daikin Japan)	FEP (Imported, Daikin Japan)
Average Insulation Thickness	0.15 mm	0.10 mm
Insulated OD	1.10 mm ±0.10 mm	0.75 mm ±0.10 mm
Twisted Structure	3C×22AWG	–
Binder	PTFE	PTFE
Overall Shield 1	Silver-plated Copper Braid, 24C/0.08mm 90% Coverage
Inner Wrap	PTFE, 0.50 mm	–
Outer Jacket Material	Medical Grade Silicone (Gray, Shore 60A
Jacket Thickness	0.8 mm	–
Overall OD	7.5 mm ±0.1 mm
