High-Amp Power Delivery & Signal Integrity for Demanding Medical Devices
Our 2 Conductor 18 AWG Medical Grade Silicone Wire (Finished OD 5.3mm) is premium interconnect solution engineered specifically for high-load power distribution, electrosurgical return paths, and heavy-duty therapeutic handpieces. Utilizing a thicker 18 Gauge cross-section, this high-flex 2 conductor silicone wire minimizes voltage drops and thermal buildup during continuous high-current clinical operations.
Perfect for rugged applications like surgical ablation tools and laser therapies, this dual-gauge framework isolates heavy power currents to safeguard surrounding electronics. For complex diagnostic instrumentation requiring a scaled-up, ultra-high-density data cluster instead of heavy power conduits, we also supply a customized 32 core high temp silicone wire configuration matrix supporting 12 precisely isolated twisted pairs.

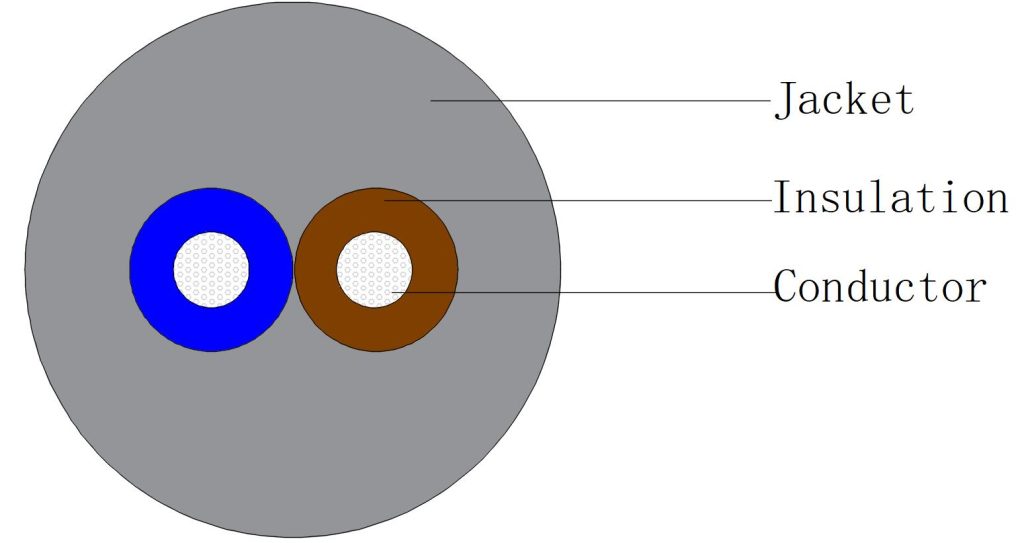

Advanced Dual-Layer Material Science: FEP Insulation & Silicone Rubber Jacket
Each 18 AWG conductor inside this heavy-duty medical cable is insulated with high-grade FEP (Fluorinated Ethylene Propylene). The choice of thin-wall FEP delivers exceptional dielectric strength, ultra-low capacitance, and complete chemical inertness, preventing internal short circuits even under high voltage spikes. The outer protective sheath is compounded from a biocompatible solid silicone rubber matrix, providing a velvety, non-sticky tactile feel that eliminates drag across clinical drapes.
Our advanced multi-strand copper layout ensures that the inner core maintains its structural anti-torsion baseline after thousands of aggressive bending actions and repeated chemical or autoclave steam sterilization recycling at 134°C. If your sensor geometry or diagnostic handpiece requires an identical dual-channel twin-stream configuration but demands a smaller profile with reduced current requirements, exploring our lower-gauge 2 conductor 22 awg silicone wire variant utilizes a thin-wall PFA matrix to achieve a sub-4.0mm finished layout.
Specification Matrix
| Component Segment | Material & Geometric Parameter Specifications |
|---|---|
| Conductor Material | High-Conductivity Stranded Soft Copper Core Matrix |
| Conductor Gauge Construction | 18 AWG * 2 Core (High-Strand Count Configuration) |
| Primary Insulation Material | High-Dielectric Extruded FEP (Fluorinated Ethylene Propylene) |
| Number of Conductors | 2C (Parallel Bipolar Architecture) |
| Internal Core Colors | Red / Black (High-Contrast Polarization Identification) |
| Outer Jacket Formulation | Biocompatible Vulcanized Solid Medical Grade Silicone Rubber Matrix |
| Finished Cable O.D. | 5.3 ± 0.20 mm |
| Standard Jacket Color | Clinical Grey / Hospital White (Custom Pantone Available) |
| Dielectric Strength Test | 4300V AC 30S, No Breakdown Compliance Passed |
Target Clinical & Surgical Applications
- Electrosurgical Generator Cords (ESU): Safely channeling high-frequency RF power delivery to ablation, cutting, and coagulation handles.
- Heavy-Duty Surgical Motor Tools: Powering medical bone saws, arthroscopic shavers, and drills requiring continuous torque currents without fatigue.
- Reusable Treatment Handpieces: Built to withstand persistent clinical steering, dynamic pulling stress, and recurring sterilization sweeps.
Tailored OEM Customization & Low MOQ Prototyping
Are you developing a proprietary clinical interface or running engineering lab trials for a new therapeutic platform? At HiFlexlink, we understand that medical-grade R&D requires extreme supply chain agility. Unlike rigid industrial wire vendors, we proudly support device innovators by offering an extremely flexible Minimum Order Quantity (Low MOQ) of just 500 meters for custom multi-gauge runs.
📩 Ready to Validate Your Design?
Whether you need custom Pantone color-matching, high-contrast surface laser branding, or technical pre-terminated sub-assemblies, our engineering desk is ready to help. Send your blueprint drawings, target outer diameters, or wire parameters directly to sales@rf-coaxial.com to secure a professional technical evaluation and a factory-direct quote within 24 hours.
