Comprehensive Coaxial Cable Specifications PDF Collection for RF Applications
Looking for Coaxial cable specifications PDFs in one place? This page offers one of the most comprehensive collections of RF cable specifications, especially valuable for engineers and buyers working with RF coaxial cable assemblies in the medical and telecommunication industries. Each downloadable datasheet contains detailed technical parameters and construction details — covering cables with a single coaxial core, as well as complex multi-core micro coaxial configurations (up to 256 cores in a single cable). if you’re sourcing or designing miniature coaxial cables for high-frequency signal transmission or multi-coax assemblies for diagnostic equipment, this collection offers a reference. Many of the listed cables are designed for advanced applications such as ultrasound probes, ECG monitoring（in a ECG cable,there is a Low noise layer,itself is a shielding）, defibrillators(not necessary,some defibrillator shield the high voltage wire,some defirbrillator does not shield any wires),; high-speed data transmission(Especially for USB3.1,USB3.2 and USB4.0,TBT4,TBT5);MRI RF coil cables(in MRI Coil,there can be no control wire,but there will be coaxial rf cable for certain
If you did not find the exact one you need,and you need a solution,please contact our expert for a free design or consulting
Partial of USB bulk Cable specification Datasheet
If you need a custom solution,please contact us
In the list of USB Bulk Cable specification,it include USB 3.0,USB3.1 and USB 3.2,USB 3.2 GEN2.Our USB Bulk cable is based on coaxial structure,as you will see the coaxial cable specifications pdf in this page
we also help customer make some special application with extra wires/coaxial than standard USB cable to meet their unique purpose.
such as 11 wire USB 3.0 bulk cable,and 15 wire USB3.1 cable or 18 wire USB 3.2 GEN2 cable (Passive)
In this MRI Cable specification :not all of them have been made,some of them are just datasheet we prepare according to customer,s requirement ,to help them make an feasibility assessment and quotation.
Most of them we have experinece in making them,and some of them have limited stock and can provide free sample for testing purpose
In the datasheet,you will see the Jacket material provide “TPU or PVC “Options. Generally,the TPU Jacket will be smoothy and Harder,and the PVC jacket will be softer.
Considering the unique application in some MRi coil repair service provide,we also custom make MRi RF cable without an Jacket(which will insert through a tube with fixingg cap)

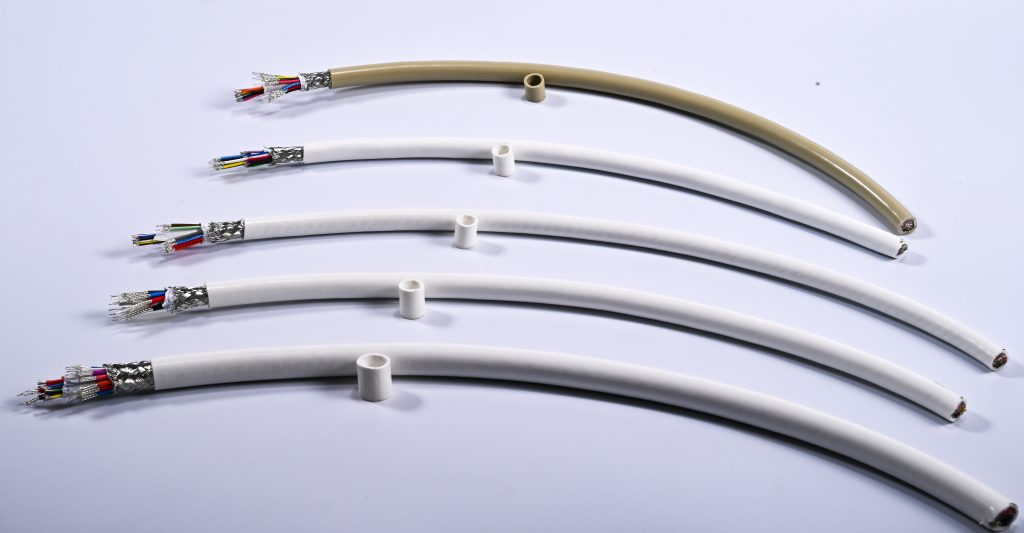

In these datasheet of Multi coaxial cable specifications pdf ,the cables are used in MRi RF coil,it has more strict MRi compatibility than MRi table cable,to make sure the cable will has no proton interference to make fake imaging
Ultrasound probe cable 100% include many micro coaxial,as an RF coaxial solution provide,we attached partial of multi core coaxial cable specifications pdf for ultrasound probe assembly and repair for your reference,especially the “Guide”,it will help you make a fast choice

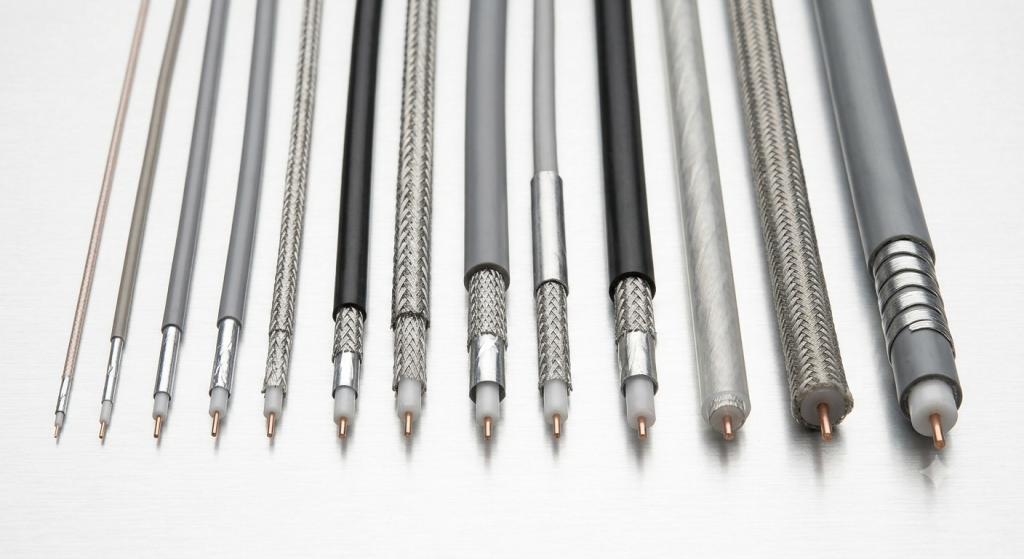

Ultra-Fine Coaxial Cable Diameter Ranges:
- Ultra-fine level: 0.1mm–0.3mm (e.g., medical probes, microwave communications)
- Fine level: 0.3mm–0.8mm (e.g., consumer electronics, 5G antennas)
- Thin level: 0.8mm–1.5mm (e.g., industrial automation, automotive electronics)
micro coaxial cable specificationsc pdf
With the development of high-precision electronic devices, miniaturized equipment, and high-frequency communications, the wire diameter of ultra-fine coaxial cables is evolving in the following directions:
Thinner and Lighter, Moving Toward 0.1mm Level
- Meeting the high-frequency signal transmission requirements of 5G and 6G, supporting millimeter-wave communication.

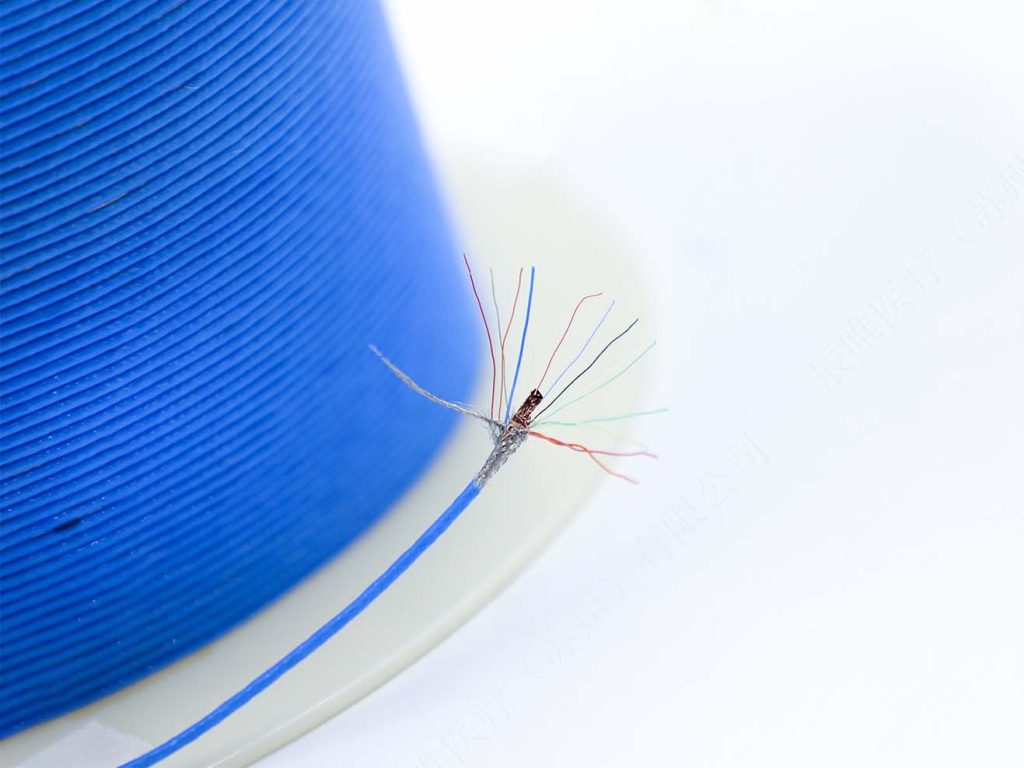

- Miniaturization driven by demand in the medical field, such as endoscopes and implantable devices.
- Lightweight design to accommodate portable and wearable devices.
High Flexibility and Bending Resistance
- Adapted for applications requiring frequent bending, such as robots, AR/VR devices, and foldable smartphones.
- Utilization of ultra-flexible materials, such as special TPE, silicone, and liquid metal shielding layers.
High Bandwidth and Low Loss
- Supporting 5G, Wi-Fi 6E, and millimeter-wave radar with frequencies advancing beyond 10GHz+.
- Adoption of low-loss dielectric materials, such as PTFE and LCP, to reduce signal attenuation.
Mature Mass Production Technology
- 0.3mm-level ultra-fine coaxial cables are now relatively mature, but there are still challenges in mass production below 0.1mm.
- Advancements in automation technology are driving large-scale production of ultra-fine coaxial cables.
