The HFL-083L micro RF coaxial cable is an ultra-fine, precision 50 Ohm coaxial wire specifically designed for space-critical and non-magnetic signal routing. Featuring a sub-millimeter outer diameter of just 0.83mm, this ultra-miniature cable incorporates a silver-plated copper stranded conductor (7/0.06mm) and high-grade Fluorinated Ethylene Propylene (FEP) insulation, delivering reliable electrical stability and low signal attenuation in extremely confined spaces.
Engineered with a dense silver-plated copper braid shield, the HFL-083L provides effective electromagnetic shielding without adding rigid bulk. Its low-magnetic construction makes it the specialized cable of choice for medical MRI coil repair, endoscopic diagnostic tools, ultra-thin laptop hinges, and wearable RF telemetry. HiFlexlink maintains strict 50 ± 3 Ohm impedance control and offers fully customized OEM micro-coaxial cable jumper assemblies fitted with IPEX MHF4, Hirose W.FL, or custom solder terminals tailored to your exact application specs.

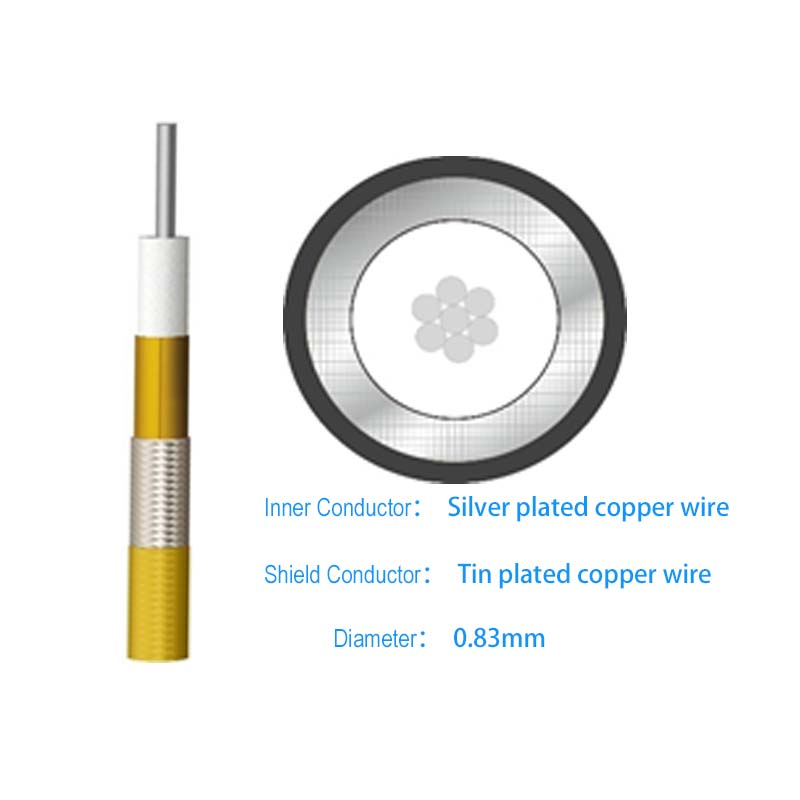

HFL-083L Micro RF Coaxial Cable (50 Ohm)
High-Frequency Flexible Micro Coaxial Wire with Silver-Plated Copper Conductor
- Sub-1mm Ultra-Compact Profile (0.83mm): Extremely fine outer diameter engineered for sub-millimeter chassis routing and medical probe assembly.
- Non-Magnetic Architecture Option: Ideal for MRI coil repair, RF diagnostic sensors, and magnetic-resonance sensitive electronics.
- High-Purity 32 AWG Silver Conductor: Stranded silver-plated copper core (7/0.06mm) ensures optimal skin-effect performance and signal fidelity.
- High-Density Silver-Plated Braid: 16/4/0.03mm silver-plated copper braid shield provides effective EMI suppression in ultra-dense layouts.
- Stable 50 Ohm Precision: Maintained at 50 ± 3 Ohm with low 96 pF/m nominal capacitance for reliable high-frequency transmission.
- Sub-Miniature Connector Compatible: Perfect for terminating onto IPEX MHF4, MHF5, Hirose W.FL, and direct micro PCB solder pads.
Technical Specifications & Construction
1. Cable Construction & Dimensions
| Item | Sub-Item | Specification Material / Dimension |
|---|---|---|
| 1. Inner Conductor | Material | Silver-plated copper wire |
| Composition / Size | 7 / 0.06 mm (Outer Dia: ~0.18 mm) | |
| 2. Dielectric | Material | FEP (Fluorinated Ethylene Propylene) |
| Color / Outer Dia. | Natural / 0.48 ± 0.02 mm | |
| 3. Outer Conductor | Material | Silver-plated copper wire braid |
| Structure | Single Braid (16/4/0.03 mm) | |
| 4. Outer Jacket | Material | FEP |
| Color / Overall Dia. | Black / 0.83 ± 0.05 mm |
2. Electrical Characteristics
| Parameter | Standard Value | Test Condition |
|---|---|---|
| Characteristic Impedance | 50 ± 3 Ω | TDR / 1 GHz – 6 GHz |
| Nominal Capacitance | 96 pF/m | 1 kHz |
| Conductor Resistance | Max. 750 Ω/km | 20°C |
| Dielectric Withstanding Voltage | 1000 V AC | 1 minute |
| Insulation Resistance | Min. 1000 MΩ·km | 20°C |
Key Features
- Ultra-compact 0.83mm outer diameter for tight space installations.
- High-temp FEP jacket ensures excellent thermal stability up to 200°C.
- Silver-plated conductors provide superior conductivity and minimal signal attenuation.
- High flexibility with small bending radius for micro-electronic assemblies.
Target Applications
- 5G/4G Wireless Communication Modules
- Antenna feedlines for Smart Phones & Laptops
- Medical Diagnostic & Imaging Equipment
- UAVs, Drones, and Aerospace Electronics
- RF Test Equipment & Internal Wiring
Frequently Asked Questions about HFL-083L
What is the primary difference between HFL-083L and other 50 Ohm cables?
HFL-083L features an ultra-thin 0.83mm outer diameter using silver-plated copper inner conductor (7/0.06mm composition) and FEP insulation, making it specifically optimized for high-frequency micro-RF signal transmission where space and weight are critical constraints.
How does 0.83mm HFL-083L compare to 1.13mm or 1.37mm micro coax cables?
HFL-083L is significantly smaller, reducing the outer diameter to 0.83mm. This allows it to fit into sub-miniature connectors like IPEX MHF4/MHF5 and Hirose W.FL, whereas 1.13mm and 1.37mm cables are too thick for these micro connector barrels.
What connectors are compatible with the 0.83mm HFL-083L cable?
It is specially sized for fourth and fifth generation micro RF connectors, including IPEX MHF IV (MHF4), IPEX MHF5, Hirose W.FL, and micro-solder pads on high-density PCBs.
Can HiFlexlink customize the length or connector terminals for HFL-083L?
Yes. HiFlexlink provides complete OEM/ODM services, offering precision pre-cut lengths, micro-stripping, automated tinning, and factory-tested connector crimping according to your engineering drawings.
Specialized Medical & High-Precision OEM Services
Need custom non-magnetic or sub-millimeter coaxial solutions for medical diagnostic tools or aerospace sensors? HiFlexlink provides tailored manufacturing:
