The HFL-113/50-TT micro coaxial cable is a highly versatile, budget-friendly 50 Ohm RF cable designed for massive consumer electronics production and internal antenna interconnects. Constructed with a 1.13mm outer diameter, this flexible micro coaxial wire incorporates a tinned copper stranded core (7/0.083mm) wrapped in high-grade Fluorinated Ethylene Propylene (FEP) insulation, delivering reliable electrical performance and ease of processing across frequencies up to 6 GHz.
Featuring a 90% coverage tinned copper braid shield, the HFL-113/50-TT balances effective electromagnetic shielding with lower manufacturing costs compared to silver-plated alternatives. Its superior solderability makes it the ideal candidate for automated termination with IPEX MHF, Hirose U.FL, and PCB solder pads in Wi-Fi routers, smart home gadgets, and wireless telemetry hardware. HiFlexlink provides consistent batch-to-batch impedance control (50 ± 2 Ohm) and complete OEM micro-coaxial cable assembly services.
HFL-113/50-TT Micro Coaxial Cable (Tinned Copper Core, 1.13mm OD)
Standard 1.13mm RF micro coaxial cable featuring tinned copper inner conductor (7/0.083mm), offering high cost-performance and reliability for high-volume consumer antenna systems.
Standard 1.13mm Profile: Slim, flexible form factor widely standardized for high-volume laptop, router, and IoT internal antenna wiring.
Cost-Efficient Tinned Copper Core: Stranded tinned copper conductor (7/0.083mm) optimizes tinning quality and automated soldering yields.
90% Tinned Copper Braid Shield: Dense braided outer conductor provides stable RF isolation and reduces crosstalk in dense enclosures.
Proven 50 Ohm Performance: Precise 50 ± 2 Ohm characteristic impedance with low VSWR ≤ 1.3 across 0 to 6 GHz wireless bands.
High-Temperature FEP Insulation: Heat-resistant dielectric and jacket withstand tight reflow and hand-soldering operations.
High-Volume IPEX / U.FL Crimp Compatibility: Uniform 1.13mm outer diameter guarantees perfect fit with standard micro RF connectors.

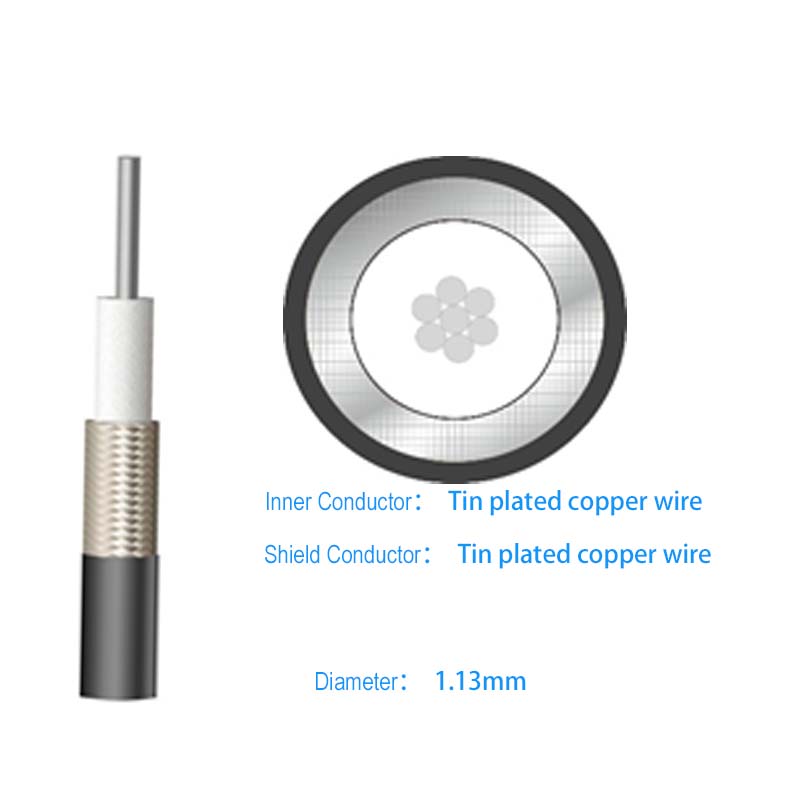

Technical Specifications & Construction
1. Product Construction & Parameters
| Structure Item | Material & Construction | Outer Diameter (OD) | Coverage / Color |
|---|---|---|---|
| ① Inner Conductor | Tinned copper wire (7/0.083 mm) | 0.24 ± 0.02 mm | – |
| ② Insulation | FEP | 0.71 ± 0.03 mm | Clarity |
| ③ Outer Conductor | Tinned copper wire braid (16/4/0.05 mm) | 0.92 ± 0.05 mm | 90 ± 5% Coverage |
| ④ Jacket | FEP | 1.13 ± 0.05 mm | Multiple Colors Available |
2. Electrical & Mechanical Characteristics
| Electrical Properties | |
|---|---|
| Impedance (@1ns) | 50 ± 2 Ω |
| Capacitance | 98 ± 4 pF/m |
| Velocity of Propagation | 70 ± 2 % |
| VSWR (0 ~ 6GHz) | ≤ 1.3 |
| Rating Voltage | 30 V |
| Attenuation (@ 20℃, dB/m) | |
|---|---|
| 1GHz / 3GHz / 6GHz | ≤2.32 / ≤4.01 / ≤5.69 dB/m |
| 8GHz / 10GHz | ≤ 7.04 / ≤ 8.07 dB/m |
Environmental & Packaging Specs
- Operating Temperature Range: -55℃ to +125℃
- Min. Static Bending Radius: 4 mm
- Optimal Preservation Period: 2 Months
Key Features
- Optimized Solderability: Tinned copper core prevents conductor oxidation during high-heat soldering and automated termination.
- Precision Impedance Matching: Maintained at 50 ± 2 Ohm with a 70% velocity of propagation for efficient RF signal transfer.
- Industrial Thermal Tolerance: Tough FEP outer jacket withstands working temperatures ranging from -55℃ to +125℃.
- Economical High-Volume Shielding: 16/4/0.05mm tinned copper braid (90% coverage) offers cost-effective EMI protection.
- Tight 4mm Static Bending Radius: Ensures smooth, kink-free wire routing inside compact plastic and metal chassis.
Target Applications
- Consumer Wi-Fi & Bluetooth Antennas: Internal antenna lead-in cables for home routers, set-top boxes, and smart TVs.
- Smart Home & IoT Devices: Wireless sensor nodes, smart locks, utility meters, and gateway modules.
- Notebooks & All-in-One PCs: Internal Wi-Fi/Bluetooth module connection to bezel-mounted PCB antennas.
- Industrial Wireless Telemetry: Handheld barcode scanners, POS terminals, and embedded machine-to-machine (M2M) links.
- OEM Cable Assemblies: Micro coaxial jumper cables pre-assembled with IPEX MHF1, Hirose U.FL, or bare-wire tinned ends.
Frequently Asked Questions about HFL-113/50-TT
What is the main advantage of choosing HFL-113/50-TT over silver-plated 1.13mm cable?
HFL-113/50-TT uses a tinned copper inner conductor (TT), which offers significantly better cost-efficiency and easier soldering properties during automated mass production, making it ideal for budget-sensitive consumer antenna projects.
How does 1.13mm HFL-113/50-TT compare to 1.37mm micro coaxial cable?
The 1.13mm outer diameter is roughly 18% thinner than 1.37mm cable. It fits smaller connector crimp barrels (like Hirose U.FL or IPEX MHF) and is easier to pass through tiny hinge mechanisms in laptops and flip-shell devices.
Is HFL-113/50-TT compatible with standard IPEX MHF and Hirose U.FL connectors?
Yes. The 1.13mm outer diameter is the classic industry-standard size for IPEX MHF I / Hirose U.FL micro RF connectors, ensuring a reliable crimp and tight strain relief.
Can HiFlexlink provide pre-cut lengths and terminated assemblies of HFL-113/50-TT?
Absolutely. HiFlexlink offers custom cutting, automated stripping, tin dipping, and full connector crimping according to your engineering drawings.
