PS520L-25G-F High Frequency Phase Stable Cable (25GHz)
25GHz High-Frequency Low-Loss Phase-Stable Coaxial Cable
Engineered for demanding RF environments, the PS520L-25G-F features a low-density PTFE dielectric combined with a protective blue FEP outer jacket, providing high phase stability, low insertion loss, and reliable performance up to 25 GHz.
Max Frequency:DC-25GHz
Velocity of Prop.：76%
Screening Effectiveness: > 90 dB
Outer Diameter:5.2mm

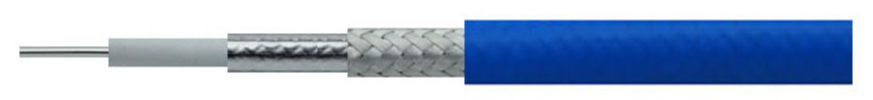

Structure & Construction Characteristics
| Structure Component | Item / Parameter | Material | Nom. O.D. (mm) |
|---|---|---|---|
| Inner Conductor | Solid Conductor (1/1.45 mm) | Silver Plated Copper | 1.45 |
| Insulation | Low Density Dielectric | LD-PTFE | 4.25 |
| Inner Shield | Helical Tape Wrap | Self-adhesive Aluminium Foil | 4.32 |
| Outer Shield | Outer Braid Wire | Silver Plated Copper Wire | 4.75 |
| Jacket | Outer Protective Layer | Blue FEP | 5.20 |
Mechanical & Environmental Parameters
| Parameter | Specification |
|---|---|
| Min Bending Radius (Static) | 26.00 mm |
| Min Bending Radius (Dynamic) | 53.00 mm |
| Weight | 0.054 kg/m |
| Operating Temperature | -55°C to +85°C |
Electrical & Mechanical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| Impedance | 50 | Ω |
| Capacitance | 88 | pF/m |
| Velocity of Propagation | 76 | % |
| Max Operating Frequency | 25 | GHz |
| Screening Effectiveness | >90 | dB |
| Dielectric Withstanding Voltage | 2000 | V DC |
Attenuation & Power Handling @ 25℃ & Sea Level
Insertion Loss Formula: IL = K1 * sqrt(F_MHz) + K2 * F_MHz
Constants: K1 = 0.718000 | K2 = 0.001088
| Frequency (MHz) | Nom. Attenuation (dB/100m) | Max Power Handling (W @ 40°C) |
|---|---|---|
| 500 | 16.60 | 1098 |
| 1000 | 23.79 | 766 |
| 2400 | 37.79 | 482 |
| 3000 | 42.59 | 428 |
| 6000 | 62.14 | 293 |
| 8000 | 72.92 | 250 |
| 10000 | 82.68 | 220 |
| 12400 | 93.44 | 195 |
| 18000 | 115.91 | 157 |
| 20000 | 123.30 | 148 |
| 25000 | 140.73 | 130 |
Cross Reference & Form-Fit-Function Alternative
PS520L-25G-F serves as a direct form-fit-function alternative for standard 0.200-inch diameter high-frequency, phase-stable microwave cables requiring low-loss propagation up to 25 GHz with a chemical and thermal resistant FEP outer jacket.
Frequently Asked Questions
What makes the PS520L-25G-F suitable for high-frequency RF applications?
The combination of a solid Silver Plated Copper conductor, low-density PTFE (LD-PTFE) insulation, and a dual shielding design (self-adhesive aluminum foil plus silver-plated copper braid) ensures ultra-low insertion loss and stable phase performance up to 25 GHz.
How does the FEP jacket compare to TPU/PUR jackets in the PS520 series?
The blue Fluorinated Ethylene Propylene (FEP) jacket (-F) provides superior thermal performance (-55°C to +85°C), high chemical resistance, and excellent dielectric properties compared to flexible PUR/TPU options (-P), making it ideal for demanding environmental conditions.
What is the minimum bend radius requirement for installation?
The static minimum bend radius is 26.00 mm for fixed installations, while the dynamic minimum bend radius for flexible or repetitive bending applications is 53.00 mm.
