Routing high-density diagnostics and micro-volt sensory returns within a single, space-constrained clinical device interface requires exceptional electromagnetic isolation and structural resilience. Symmetrical multi-conductor cords often suffer from internal signal attenuation, high microphonic impedance drift, and rigid physical bulk that restricts a surgeon’s movement.
As an ISO 13485 certified manufacturer, we engineer custom high temp silicone wire solutions engineered to disrupt these limitations through precise metallurgical and structural engineering. Our premium 32-conductor hybrid wire (Model: SIL-TWIST-32C) pairs high-density signal separation with an elite-tier vulcanized jacket, delivering low-loss data telemetry for advanced ultrasound transducers, endoscopy camera handles, and complex electrosurgical platforms.
Non-Symmetrical Layered Layout of Our 32 Core Cable
Medical instrumentation engineers frequently struggle with signal cross-talk and phase distortion when packing dozens of data channels into a flexible handpiece cord. While general-purpose multi-core cords route conductors randomly, our specialized silicone flexible cable assembly incorporates an asymmetric geometric alignment. This internal matrix ensures perfect differential signal integrity under continuous dynamic bending during intensive cleanroom procedures.
Precision Engineering & Component Breakdown

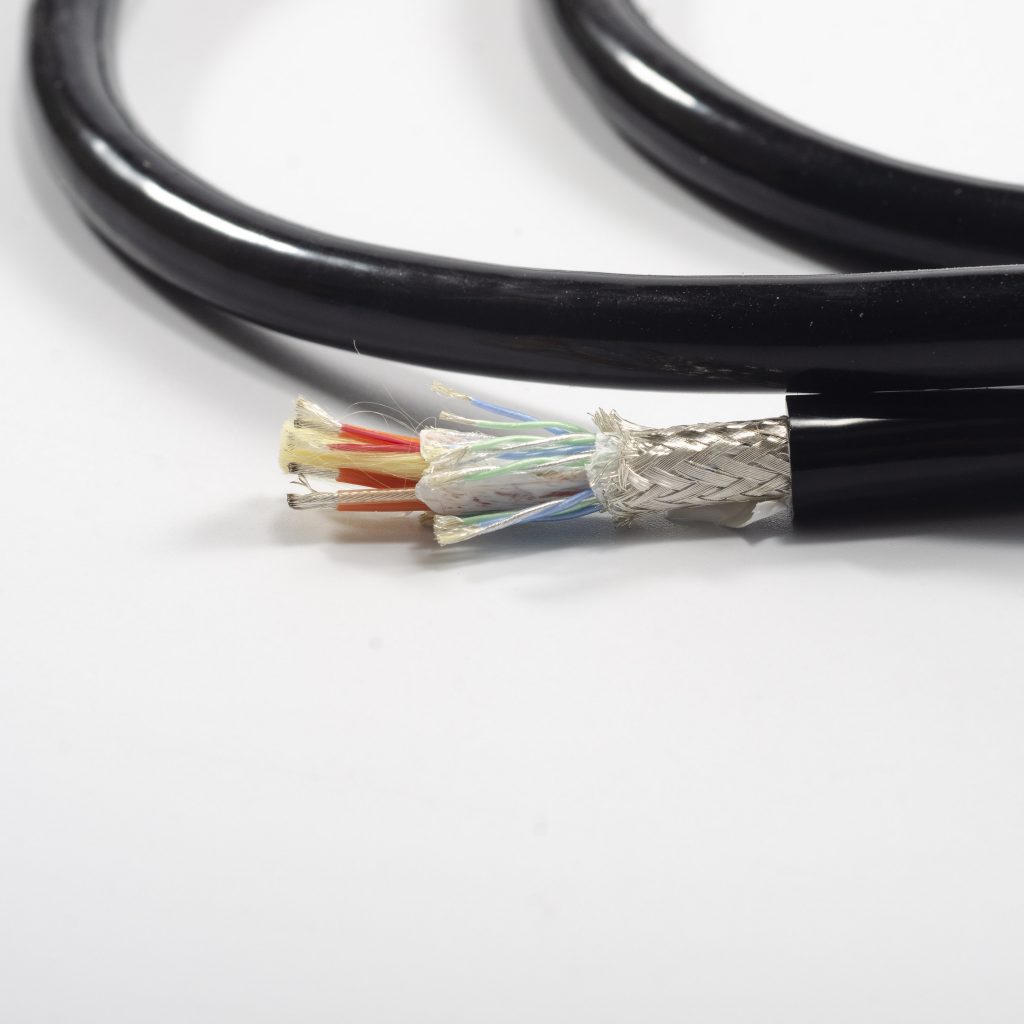

To achieve high concentricity and secure noise immunity, the internal layout of this premium 32 core cable is segmented into specialized defensive layers:
- Elite 12-Pair Anti-Crosstalk Matrix: 24 of the data channels are precision-twisted into 12 separate pairs with custom-calibrated twist-pitches. This structural alignment completely eliminates mutual magnetic coupling.
- Ultra-High Conductivity 32 Gauge Silicone Wire: The signal strands utilize premium silver-plated soft copper (SPC) inside a thin-wall configuration, capitalizing on the electrical “skin effect” to guarantee zero degradation for high-frequency telemetries.
- Thin-Wall FEP Core Insulation: The internal wires are insulated with high-dielectric Fluorinated Ethylene Propylene (FEP), minimizing capacitive loss and allowing a ultra-dense core packing density.
- Micro-Extrusion Shielding Layer: A dense, high-coverage tinned copper braiding matrix encloses the core layout, forming a highly effective Faraday shield against ambient electronic noise and radio frequency interference (RFI).
2. Technical Parameter Matrix for Engineering Verification
Beyond spatial layout geometry, the raw shield coverage and material compounding determine how well a high temp silicone wire assembly performs over a demanding operational lifecycle. Engineering and procurement departments must verify strict dimensional compliance and tight tolerances to guarantee full hardware plug-and-socket compatibility.
| Technical Parameter | Material & Engineering Specifications |
| Product Identifier | Non-Symmetrical High-Density Medical Cable (Model: SIL-TWIST-32C) |
| Total Conductor Count | 32 Cores Symmetrical Matrix Layout |
| Twisted Pair Configuration | 12 Pairs (24 Wires) Anti-Crosstalk Signal Array |
| Conductor Material | High-Conductivity Stranded Silver-Plated Soft Copper (SPC) |
| Signal Core Gauge | 32 Gauge Silicone Wire Structural Elements |
| Primary Core Insulation | Thin-Wall High-Dielectric Fluoropolymer (FEP) |
| Shielding Performance | Ultra-Slim High-Density Tinned Copper Wire Braiding Matrix |
| Outer Jacket Material | Biocompatible Medical Grade Vulcanized Silicone Rubber |
| Outer Jacket Color | Matte Clinical Black |
| Cable Outer Diameter (OD) | 7.5mm± 0.15mm Geometric Concentricity |
Clinical Compliance and Heavy-Duty Sterilization Performance
Having precise physical dimensions is useless if the surgical jacket degrades, hardens, or turns sticky after repeated sterilization cycles in a hospital clean room. Surgical environments require materials with high chemical inertia to prevent environmental degradation and extend device operational lifespans.
Our specialized extrusion process ensures that each 32-core high-density silicone flexible cable assembly outclasses standard commercial cords through targeted compound upgrades:
- Steam Autoclave Resiliency: The high-grade vulcanized black silicone rubber outer jacket easily withstands repeated steam autoclave sterilization cycles 134 ℃. It retains its hyper-flexible texture and structural integrity without experiencing surface cracking or jacket hardening.
- Excellent Fluid Resistance: Beyond thermal stability, the solid all-silicone outer matrix is highly resilient against aggressive hospital disinfectants, glutaraldehyde solutions, and standard alcohol sanitizing wipes.
- Biocompatible Compound Shell: Our specialized medical silicone rubber formulation ensures non-toxic, skin-safe interaction during surgical operations, making it perfectly safe for continuous staff handling and patient contact.
High Temp Silicone Wire Frequently Asked Questions
What is the mechanical benefit of your low MOQ policy for custom runs?
Our 500-meter low MOQ allows medical device startups and corporate R&D labs to procure exact, custom-spec cables for verification testing and small clinical trial runs without purchasing thousands of meters of redundant, unused inventory.
Why is FEP insulation paired with an outer silicone flexible cable jacket?
FEP provides incredible dielectric strength with an ultra-thin wall profile, which is essential for grouping 32 conductors into a tight layout. Meanwhile, the outer vulcanized high temp silicone wire jacket provides the necessary biocompatibility, high flexibility, and soft touch required for clinical handling.
How does the 12-pair twisted wire layout improve diagnostic readings?
Standard cables allow electro-magnetic fields from adjacent wires to distort weak telemetry signals. By precision-twisting the lines into 12 separate pairs with calibrated pitches, this 32 core cable cancels out internal magnetic fields, ensuring clear, noise-free micro-volt diagnostic returns.
4. Factory-Direct Customization with Ultra-Low MOQ Requirements
At our manufacturing facility, we understand that medical device R&D, advanced prototyping, and small-batch clinical trials require highly responsive and flexible supply chains. Unlike massive, rigid industrial wire vendors who demand miles of material per production run, our entire operation is structured around customer customization.
We proudly offer extremely low Minimum Order Quantities (Low MOQ) starting at just 500 meters for custom runs, allowing engineering labs to validate their complex 32-core twisted pair designs with minimal initial risk.
Our Fully Flexible OEM/ODM Tailored Services Include:
- Custom Gauge Mixes: We easily adjust internal configurations to match your precise target profile, including embedding micro-coaxial lines, altering wire counts, or changing core arrangements.
- Surface Laser Marking: High-contrast laser printing on the outer silicone shell for part numbers, regulatory markings, or your proprietary brand logo.
- Turnkey Wire Assemblies: Complete pre-terminated solutions fitted with premium medical plugs (fully compatible with LEMO, Amphenol, or custom over-molded connectors).
📩 Request Your Custom Cable Consultation — Send your blueprint drawing, target outer diameter, or electrical parameters directly to our engineering desk at sales@rf-coaxial.com, and receive a professional assessment within 24 hours.
