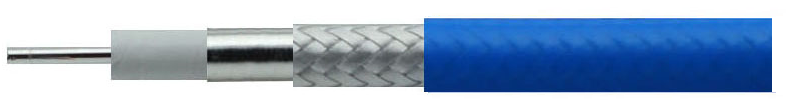

PS230L-67G-BF 67GHz phase stable coaxial cable exploded view showing silver plated copper conductor, LD-PTFE insulation, inner shield, outer shield, and FEP jacket.
Cross-sectional layer diagram of PS230L-67G-BF 67GHz low loss phase stable coaxial cable.

PS230L-67G-BF

67GHz Ultra-Miniature Low Loss Phase Stable Coaxial Cable

Engineered specifically for broadband millimeter-wave applications operating up to 67 GHz. Utilizing low-density microporous PTFE (LD-PTFE) dielectric and a high-precision multi-layer shield in a compact 2.30mm outer diameter form factor, it offers exceptionally low attenuation and outstanding phase stability under flexing and thermal stress.

Max Frequency:DC-67GHz

Velocity of Prop.76%

Inner ConductorStranded SPC (1/0.51mm)

Outer Diameter:2.3mm

Structure & Construction Characteristics

LayerMaterialConstruction (mm)Nom. O.D. (mm)
Inner ConductorSilver Plated Copper1 / 0.510.51
InsulationLD-PTFE1.55
Inner ShieldSilver Plated Copper Strip1.70
Outer ShieldSilver Plated Copper Wire Braid2.01
JacketBlue FEP2.30

Mechanical & Environmental Parameters

Min. Static Bending Radius11.0 mmMin. Dynamic Bending Radius23.0 mm
Weight0.016 kg/mOperating Temperature-55℃ to +165℃

Electrical & Mechanical Characteristics

Impedance50 OhmVelocity of Propagation76%
Max Operating Frequency67 GHzCapacitance88 pF/m
Screening Effectiveness> 90 dBDielectric Withstanding Voltage800 V DC
Phase Change vs Bending±0.2 °/GHzPhase Change vs Temp (-45~+85℃)≤ 1500 PPM

Attenuation & Power Handling @ 25℃ & Sea Level

Insertion Loss Formula: IL = K1 * sqrt(F_MHz) + K2 * F_MHz (dB/100m)
Constants: K1 = 2.177342, K2 = 0.001221

Frequency (MHz)Nom. Attenuation (dB/100m)Max Power Handling (W @ 40℃)
30038.08179
50049.30138
100070.0797
3000122.9255
6000175.9839
8000204.5233
10000229.9430
12400257.6026
18000314.1022
26500386.8018
40000484.3114
50000547.9212
67000645.4011

Cross-Reference & Industry Interchangeability

PS230L-67G-BF provides direct form-fit-function mechanical and electrical interchangeability with leading industry standards, acting as a high-precision replacement for HUBER+SUHNER SUCOFLEX 100 series ultra-flexible 1.85mm/V-connector test cables.

Frequently Asked Questions

Why is a 2.30mm outer diameter preferred for 67 GHz V-Band / 1.85mm connector terminations?

Operating up to 67 GHz requires avoiding higher-order waveguide modes within the coaxial structure. A 2.30mm outer diameter allows optimal dielectric dimensions (1.55mm) matching 1.85mm connector geometries, minimizing return loss and VSWR spikes at mmWave frequencies.

How does microporous LD-PTFE dielectric maintain dynamic phase tracking up to 67 GHz?

 Micro-porous Low-Density PTFE (LD-PTFE) achieves a 76% velocity of propagation (VoP) by replacing dense solid PTFE with controlled micro-air pockets. This significantly reduces dielectric constant variations under physical bending and thermal changes, keeping phase variance under ±0.2 °/GHz.

What is the advantage of using a silver-plated copper strip inner shield combined with a wire braid?

The helically wrapped silver-plated copper strip provides seamless 100% inner coverage to suppress microwave leakage, while the outer braid delivers structural integrity and flexible ground grounding. Together, they guarantee over 90 dB screening effectiveness across the entire 67 GHz bandwidth.
