PS160L-110G-BF
110 GHz Ultra-High Frequency Micro-Porous LD-PTFE Phase Stable Cable
Engineered for millimeter-wave testing and phase-critical RF environments, PS160L-110G-BF features a Micro-Porous Low-Density PTFE (LD-PTFE) dielectric. This advanced construction yields an impressive 76% velocity of propagation, significantly reduced attenuation, and exceptional phase stability under dynamic bending up to 110 GHz.
Max Frequency:DC-110GHz
Velocity of Prop.：76%
Inner Conductor:Stranded SPC (1/0.3mm)
Outer Diameter:1.6mm

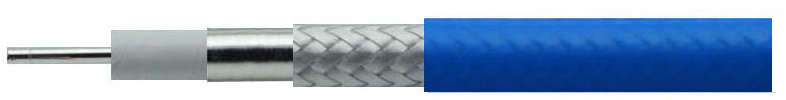

Structure & Construction Characteristics
| Layer | Material | Construction / Nom. O.D. (mm) |
|---|---|---|
| Inner Conductor | Silver Plated Copper | 1 / 0.30 mm |
| Insulation (Dielectric) | LD-PTFE (Low-Density PTFE) | 0.92 mm |
| Inner Shield | Helical Silver Plated Copper Strip | 1.05 mm |
| Outer Shield | Silver Plated Copper Wire Braid | 1.25 mm |
| Outer Jacket | Blue FEP | 1.60 mm |
| Min. Bending Radius (Static) | 8.0 mm | |
| Min. Bending Radius (Dynamic) | 16.0 mm | |
| Cable Weight | 0.006 kg/m | |
Electrical & Mechanical Characteristics
| Impedance | 50 Ohm | Capacitance | 89 pF/m |
|---|---|---|---|
| Velocity of Propagation | 76% | Max Operating Frequency | 110 GHz |
| Shielding Effectiveness | > 90 dB | Dielectric Withstanding Voltage | 500 V @ DC |
| Phase Change vs. Bending | ±0.2 °/GHz | Phase Change vs. Temperature | ≤ 1500 PPM (-45 to +85 ℃) |
Attenuation & Power Handling @ 25℃ & Sea Level
Insertion Loss Formula: IL = K1 * sqrt(F_MHz) + K2 * F_MHz
Coefficients: K1 = 3.557846, K2 = 0.001221
| Frequency (MHz) | Nominal Attenuation (dB/100m) | Max Power Handling (W @ 40℃) |
|---|---|---|
| 300 | 61.99 | 150 |
| 500 | 80.17 | 116 |
| 1000 | 113.73 | 82 |
| 3000 | 198.53 | 47 |
| 6000 | 282.92 | 33 |
| 12000 | 404.39 | 23 |
| 18000 | 499.31 | 19 |
| 26500 | 611.53 | 15 |
| 40000 | 760.41 | 12 |
| 50000 | 856.61 | 11 |
| 67000 | 1002.73 | 9 |
| 110000 | 1314.31 | 7 |
Model Comparison & Selection Note
Compared to our solid-PTFE variant (PS160L-110G-F), the PS160L-110G-BF utilizes an advanced Micro-Porous LD-PTFE dielectric. This provides a higher velocity of propagation (76% vs 70%), lower dielectric loss (attenuation reduced by ~14% at 18GHz), tighter phase stability vs bending (±0.2°/GHz vs ±0.3°/GHz), and an expanded operating temperature ceiling (up to +165℃).
Frequently Asked Questions
How does PS160L-110G-BF achieve higher propagation velocity than standard 160-size cables?
Operating up to 67 GHz requires avoiding higher-order waveguide modes within the coaxial structure. A 2.30mm outer diameter allows optimal dielectric dimensions (1.55mm) matching 1.85mm connector geometries, minimizing return loss and VSWR spikes at mmWave frequencies.
What is the main difference between PS160L-110G-BF and PS160L-110G-F?
The “BF” suffix denotes a micro-porous LD-PTFE dielectric with enhanced temperature rating (-55 to +165℃) and lower attenuation, whereas the “F” suffix utilizes solid PTFE rated to +125℃.
What is the bend radius limit for installation?
The minimum static bend radius is 8.0 mm, while the dynamic bend radius for repeated flexure is 16.0 mm.
