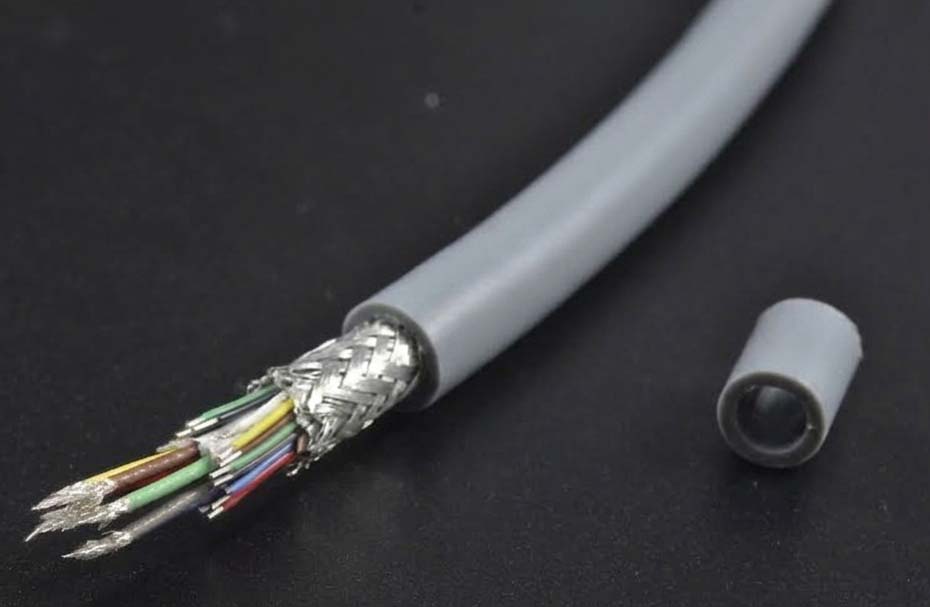

High-Performance 20-Core MRI Coil Repair Cable (8 RF Coax RG178 + 12 Signal Wires)
Designed for high-precision diagnostic equipment maintenance, this medical-grade replacement cable features 8 micro RF coaxial lines (30AWG / RG178) paired with 12 multi-strand signal wires (26AWG). Specifically engineered to meet the strict impedance and low-loss requirements of MRI RF coil assemblies, it serves as a reliable solution for repairing popular systems—including GE Liberty 9000 8-Channel and Siemens 8-Channel Breast Sen Coils. Encased in a flexible, biocompatible/MRI-compatible grey PVC jacket with full braided shielding, it ensures maximum signal integrity, reduced artifact noise, and long-term durability in demanding clinical environments.
For siemens mri coil repair service provider(10606601 – Siemens – MRI – 8 Channel Breast Sen Coil),This cable is also appliable
Based on RG178 ,there :10 Coax RG178;16 Coaxial RG178+16 signal wire 26AWG;and 10 coax RG178+12 *26AWG and 16*coaxial RG178+21 wire 26AWG Optional.
from RF-Coaxial,there will be always a solution for you
Feature
- RF Coax
- Conductor：sliver plated Copper Wire
- 30AWG*8 core
- Impedance：50±5Ω
- VSWR: DC~500MHz≤1.3；
- Signal Wire
- 26AWG*12 core
- Shield：Braiding
- Diameter:10.0 mm
- Jacket Material:MRi compatible PVC
- Application:MRi Coil Repair( ge 8 channel breast coil)Siemens – MRI – 8 Channel Breast Sen Coil
