Premium Dual-Channel Signal Integrity for Clinical Environments
Our 2 Conductor 22 AWG Medical Silicone Wire (Finished OD 4.0mm) delivers unmatched stability, structural suppleness, and long-term flexing life for twin-channel diagnostic sensors, surgical handpieces, ablation tools, and high-reliability medical grounding lines. This high-purity 2 conductor silicone wire is specifically engineered to eliminate signal attenuation and microphonic noise fluctuations during delicate manual clinical maneuvers.
To ensure uncompromising safety, each 22 AWG conductor utilizes an advanced 72/0.08SPC stranded configuration. This ultra-fine silver-plated copper framework dramatically lowers chemical oxidation risks while maintaining low electrical resistance. For projects requiring slightly higher density or alternative channel routing, we also manufacture a matching 3 core 24 awg silicone wire configuration optimized for expanded instrumentation telemetry.
Advanced Material Science: PFA Cores & Vulcanized Silicone Shell
The internal primary insulation of each wire core is extruded from heavy-duty PFA (Perfluoroalkoxy) fluoropolymer. PFA delivers exceptional dielectric strength, ultra-low capacitance, and complete chemical inertness, safeguarding the underlying copper strands against high thermal shock and aggressive operating theatre disinfectants. The external protective sheath is custom-compounded from a biocompatible, ultra-soft medical-grade solid silicone rubber matrix, providing a velvety, non-sticky tactile hand-feel that reduces fatigue for surgical operators.
While heavily specified for clinical devices due to its complete autoclave steam sterilization compatibility, this durable multi-purpose cable is also highly sought after for high-end automotive testing calibration, aerospace instrumentation, and demanding industrial sensing setups where physical resilience and flexible routing are essential. If your sensor interface operates within a dense monitoring matrix that doesn’t require a rigid fluoropolymer core, exploring our all-silicone 5 core medical cord offers an alternative layout balancing maximum tactile limpness with multi-channel streams.

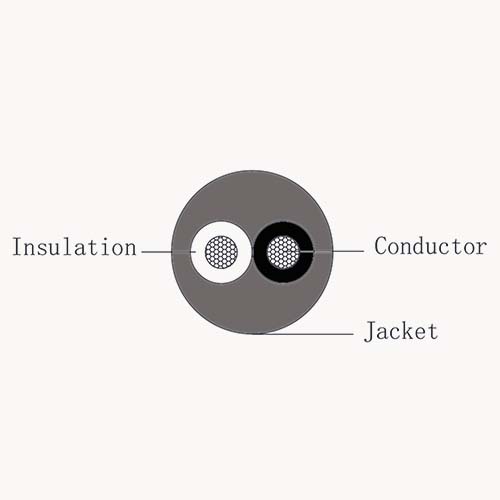

Specification Matrix
| Component Segment | Material & Geometric Parameter Specifications |
|---|---|
| Conductor Material | High-Conductivity Stranded Silver-Plated Soft Copper (SPC) |
| Conductor Construction | 22 AWG (72 strands of 0.08mm micro-wire) |
| Stranded Conductor O.D. | 0.78 ± 0.05 mm |
| Primary Core Insulation | Thin-Wall High-Dielectric PFA (Perfluoroalkoxy) |
| Number of Conductors | 2C (Parallel Twisted Geometry) |
| Insulated Core O.D. | 1.30 ± 0.05 mm |
| Insulation Avg. Thickness | Reference 0.26 mm |
| Internal Core Colors | Natural / Black (High-Contrast Polarization) |
| Outer Jacket Material | Biocompatible Vulcanized Medical Grade Silicone Rubber Matrix |
| Finished Cable O.D. | 4.0 ± 0.15 mm |
| Jacket Avg. Thickness | 0.70 mm |
| Standard Jacket Color | Clinical Grey (Custom Pantone Matching Available for OEM runs) |
Target Clinical & Laboratory Applications
- Patient Thermistor & SpO2 Probes: Perfect for twin-channel differential signaling where baseline resistance drifts must be minimized under temperature shifts.
- Electrosurgical Grounding Cords: Providing a robust, low-impedance pathways for return currents to safeguard clinical staff and patients during coagulation.
- Reusable Therapeutic Handpieces: Built to endure continuous twisting, dynamic steering, and sudden physical strain relief pulls without internal conductor shearing.
- Automotive & Industrial Calibration: Resisting oil splashes, high thermal exposure, and continuous vibration inside testing engine bays or robotic sensor lines.
