Routing high-density, multi-channel diagnostic telemetry alongside low-frequency control signals through a single, space-constrained clinical device interface requires exceptional electromagnetic isolation and structural compliance. Standard commercial wires frequently suffer from internal signal attenuation or cable hardening under continuous medical handling.
As an ISO 13485 certified medical cable manufacturer, we engineer custom shielded silicone cable solutions designed to eliminate these mechanical and electrical bottlenecks. Our premium 18-conductor composite cord (Model: SIL-COMP-18) integrates three distinct wire gauges under an elite-tier vulcanized jacket, ensuring zero cross-talk performance for specialized imaging arrays, endoscopy cameras, and complex surgical handpieces.

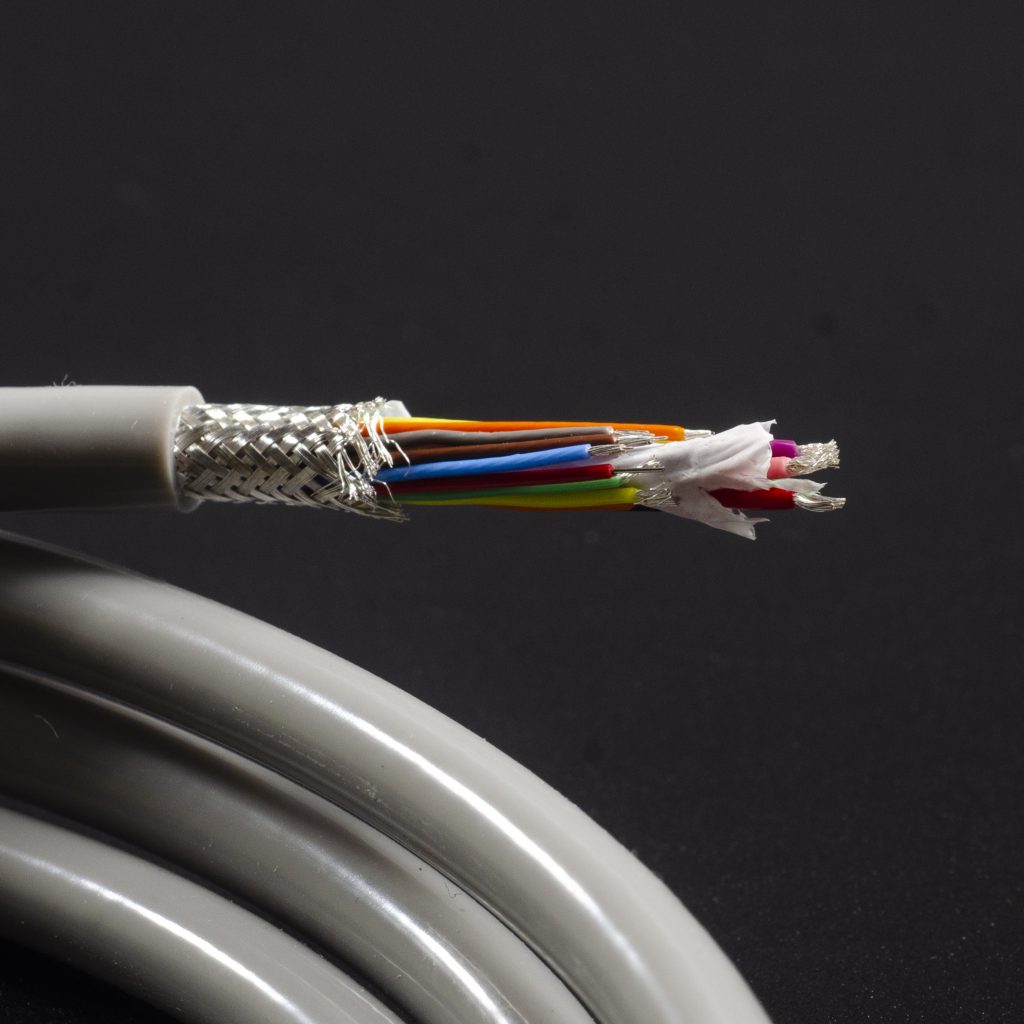

1. Advanced Composite Architecture of Our 18 Core Cable
Medical instrumentation engineers frequently struggle with signal interference when routing high-speed data streams, sensory feedback, and power distribution within a single bundled profile. While a standard symmetrical wire lacks localized cross-talk isolation, our specialized silicone rubber wire assembly adopts an asymmetric, multi-gauge geometric structure. This layout provides medical device OEMs with a highly optimized, space-saving component for high-fidelity medical telemetry.
Non-Symmetrical 18-Conductor Internal Breakdown
To maximize space efficiency and ensure uncompromised signal safety, the 18 internal cores are meticulously grouped by specialized gauges:
- Primary Power & Ground Streams: 8 wires × 26 AWG silver-plated copper conductors for low-resistance electrical distribution.
- Intermediate Data & Control Channels: 8 wires × 32 AWG silver-plated copper conductors optimized for multi-channel sensory returns.
- Micro-Signal Sensory Feedback: 2 wires × 36 AWG silver-plated copper conductors engineered for ultra-fine, low-loss diagnostic data paths.
- Premium FEP Core Insulation: Every individual core is extruded using high-dielectric FEP (Fluorinated Ethylene Propylene) to guarantee excellent isolation and prevent internal signal leakage.
Technical Parameter Matrix for Engineering Verification
Beyond internal multi-gauge layout geometry, the raw shield material and overall coverage rate determine how well a shielded silicone cable repels electromagnetic interference (EMI) inside crowded modern operating theaters. Engineering and procurement departments must verify strict dimensional tolerances to guarantee full hardware plug compatibility.
| Technical Parameter | Material & Engineering Specifications |
| Product Identifier | Composite Multi-Core Medical Cable (Model: SIL-COMP-18) |
| Total Conductor Count | 18 Cores Non-Symmetrical Layout |
| Conductor Gauges Matrix | 8 Wires × 26 AWG + 8 Wires × 32 AWG + 2 Wires × 36 AWG |
| Conductor Core Material | Premium Stranded Silver-Plated Copper Wire (SPC) |
| Primary Core Insulation | High-dielectric FEP (Fluorinated Ethylene Propylene) |
| Internal Structural Filler | None (Filler-Free design for strict cleanroom sanitation) |
| Shielding Performance | High-Density Silver-Plated Copper Wire Braiding Matrix |
| Outer Jacket Material | Biocompatible Medical Grade Silicone Rubber (Gray/Black) |
| Cable Outer Diameter (OD) | 6.0mm± 0.15mm |
| Primary Application | Endoscope Camera Assembly / Ultrasound Transducers / Imaging Tools |
Clinical Compliance and Heavy-Duty Sterilization Performance
Having precise physical dimensions is useless if the surgical jacket degrades, hardens, or turns sticky after a few sterilization cycles in a hospital clean room. Surgical environments require materials with high chemical inertia to prevent environmental degradation and extend device operational lifespans.
Our specialized high temperature silicone cable compounding process ensures that each 18-core assembly outclasses standard commercial cords through targeted component upgrades:
Sterilization and Shielding Benefits
- Steam Autoclave Resiliency: The high-grade vulcanized silicone rubber outer jacket easily withstands repeated steam autoclave sterilization cycles 134 ℃. It retains its ultra-soft, flexible texture without experiencing surface cracking or jacket hardening.
- Premium Silver-Plated Copper Shielding: Both the conductor strands and the overall braiding utilize pure silver-plated copper wire. This delivers exceptional electrical conductivity and outstanding EMI/RFI attenuation, shielding delicate diagnostic telemetry from surrounding electrosurgical tools.
- Biocompatible Compound Shell: Formulated in compliance with stringent clinical safety standards, our non-toxic compound provides secure, reliable electrical connections within busy hospital facilities.
Factory-Direct Customization with Ultra-Low MOQ Requirements
At our manufacturing facility, we understand that medical device R&D, advanced prototyping, and small-batch clinical trials require highly responsive and flexible supply chains. Unlike massive, rigid industrial wire vendors who demand miles of material per production run, our entire operation is structured around customer customization.
We proudly offer extremely low Minimum Order Quantities (Low MOQ) starting at just 500 meters for custom runs, allowing engineering labs to validate their complex 18-core composite designs with minimal initial risk.
Our Fully Flexible OEM/ODM Tailored Services Include:
- Custom Gauge Mixes: We easily adjust internal configurations to match your precise target profile, including adding micro-coaxial lines, altering wire counts, or changing core arrangements.
- Surface Laser Marking: High-contrast laser printing on the outer silicone shell for part numbers, regulatory markings, or your proprietary brand logo.
- Turnkey Wire Assemblies: Complete pre-terminated solutions fitted with premium medical plugs (fully compatible with LEMO, Amphenol, or custom over-molded connectors).
Shielded Silicone Cable Frequently Asked Questions
What is the primary benefit of your low MOQ policy for composite runs?
Our 500-meter low MOQ allows medical device startups and corporate R&D labs to procure exact, custom-spec cables for verification testing and small clinical trial runs without purchasing thousands of meters of redundant, unused inventory.
Why is silver-plated copper used for both the conductor and the shield?
Compared to standard tinned copper, silver-plated copper provides significantly lower electrical resistance and enhanced signal transmission speeds. For a high-density shielded silicone cable carrying 26/32/36AWG lines, this material ensures crisp, distortion-free data transmission for high-frequency imaging equipment.
Why is FEP chosen for internal core insulation instead of silicone?
While the outer jacket uses silicone for maximum flexibility and biocompatibility, the internal wires use FEP insulation. FEP allows for a much thinner wall diameter while maintaining excellent dielectric strength, which is essential for pack 18 composite cores into a tight 6.0mm} profile.
