Routing stable power distribution and multi-channel telemetry streams through a single, space-constrained clinical device interface requires exceptional thermal endurance and physical suppleness. Many standard medical lines utilize Teflon or FEP inside a silicone jacket, which can introduce rigid friction points and uneven bending resistance during delicate surgical or diagnostic procedures.
As an ISO 13485 certified medical cable manufacturer, we engineer custom flexible silicone wire cable solutions designed to eliminate these mechanical constraints. Our premium 5-conductor cord (Model: SIL-ALL-5C) features an integration where both the inner primary insulation and the outer protective jacket are extruded from medical-grade vulcanized silicone rubber, ensuring uncompromised biophysical compliance and fluid maneuverability.

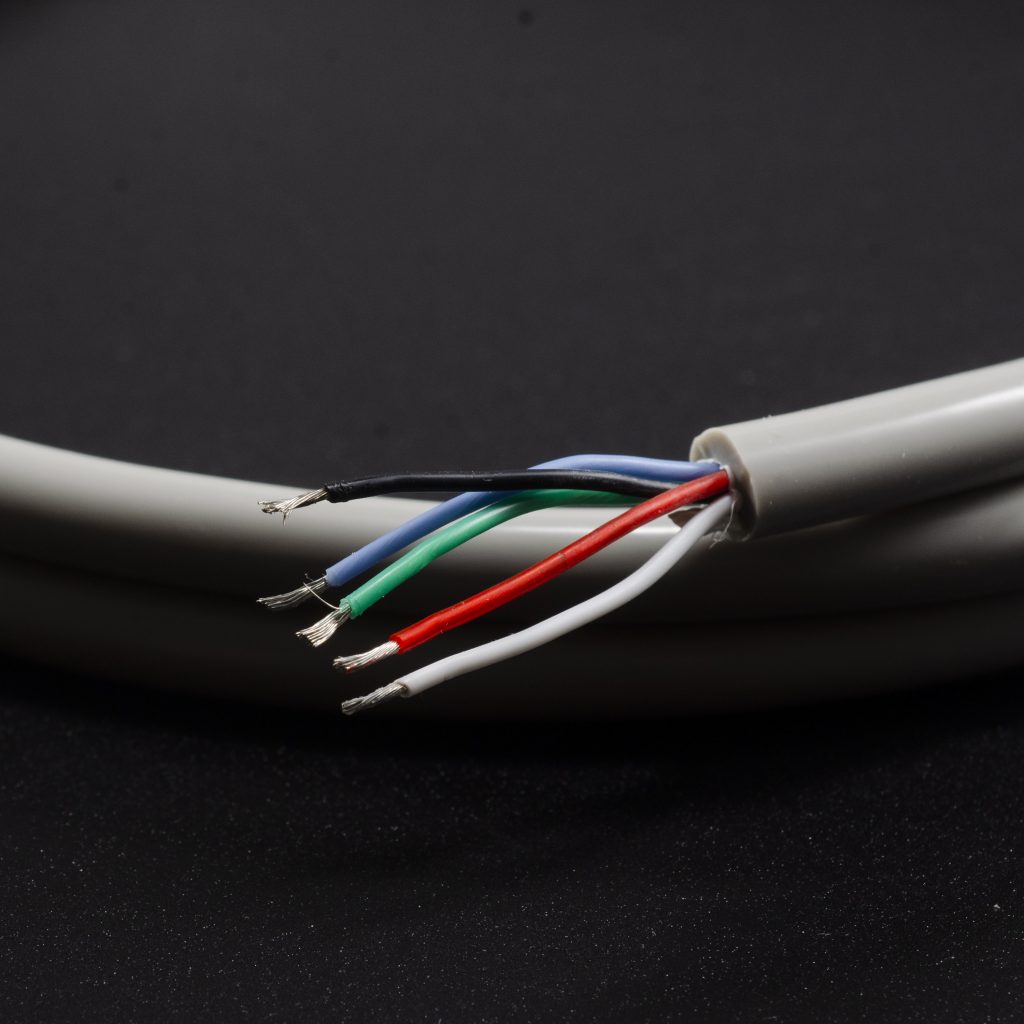

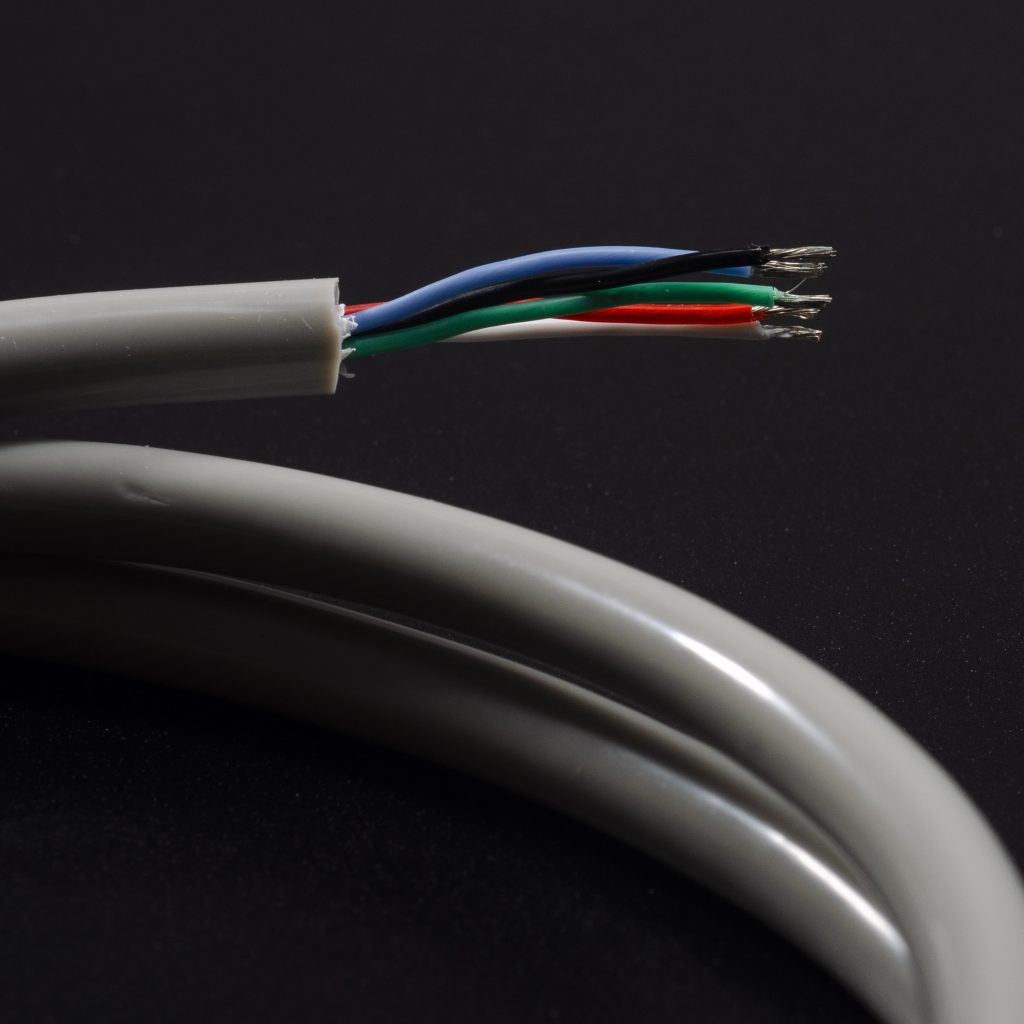

All-Silicone Structural Architecture of Our 5 Core Silicone Cable
Medical instrumentation engineers frequently struggle with component stiffness when designing handpieces for patient monitoring arrays or diagnostic laboratory instruments. While standard cords rely on rigid fluoropolymer core insulations that hinder tight bend radiuses, our specialized 5 core silicone cable replaces these stiff plastics with pure, high-dielectric silicone rubber insulation on every single internal wire.
Symmetrical Core Geometry & Component Breakdown
- High-Flex Conductor Matrix: 5 channels of 25 AWG stranded tin-plated copper (30 / 0.08 mmTC per core), meticulously braided to balance high current capacity with structural anti-fatigue performance.
- Cohesive Material Insulation: Every individual core is insulated with high-purity medical silicone, matching the elastic properties of the outer shell to provide zero-friction internal movement.
- Filler-Free Compact Profile: Engineered completely without internal textile fillers to maintain a clean, non-porous profile that prevents fluid trapping or biological contamination inside the cable matrix.
Technical Parameter Matrix for Engineering Verification
Beyond composite geometry layout, raw layer dimensions and material compounding determine how well a silicone rubber wire assembly performs over a demanding operational lifecycle. Engineering and R&D procurement departments must verify strict dimensional tolerances to guarantee full hardware plug compatibility.
| Technical Parameter | Material & Engineering Specifications |
| Product Identifier | All-Silicone Multi-Core Medical Cable (Model: SIL-ALL-5C) |
| Conductor Configuration | 5 Cores Symmetrical Layout |
| Conductor Specification | 25 AWG Stranded Tin-Plated Copper (30 / 0.08 mmTC) |
| Primary Core Insulation | High-dielectric Medical Grade Silicone Rubber |
| Internal Structural Filler | None (Filler-Free design for strict cleanroom sanitation) |
| Outer Jacket Material | Biocompatible Medical Grade Silicone Rubber |
| Outer Jacket Color | Matte Clinical Black |
| Cable Outer Diameter (OD) | 6.0mm± 0.15mm |
| Primary Application | Medical Monitoring Equipment / Diagnostic Devices / Lab Tools |
Contact Our Medical Cable Experts for Your Free Custom Evaluation
Are you designing a next-generation diagnostic instrument or replacing an unreliable overseas cable component that hardens over time? Don’t let standard factory minimums or rigid distribution markups delay your engineering milestones.
Why Partner Direct with Our Factory?
- Direct Manufacturer Pricing: Cut out middleman costs by working directly with our agile, ISO 13485 certified medical silicone extrusion facility.
- Low Risk Prototype Validation: We provide complete technical cross-referencing to ensure full hardware compatibility with your current connectors.
- Rapid Global Shipping: Custom multi-core specifications can be manufactured, quality-tested, and shipped for evaluation within weeks.
Clinical Compliance and Heavy-Duty Sterilization Performance
Having precise physical dimensions is useless if the surgical jacket degrades, hardens, or turns sticky after a few sterilization cycles in a hospital clean room. Surgical environments require materials with high chemical inertia to prevent environmental degradation and extend device operational lifespans.
Our specialized silicone rubber wire compounding process ensures that each assembly outclasses standard commercial cords through targeted component upgrades:
- Steam Autoclave Resiliency: The high-grade vulcanized black silicone rubber outer jacket easily withstands repeated steam autoclave sterilization cycles 134 ℃. It retains its ultra-soft, flexible texture without experiencing surface cracking or jacket hardening.
- Superior Chemical Resistance: Beyond thermal stability, the solid all-silicone matrix is highly resilient against aggressive hospital disinfectants, glutaraldehyde solutions, and standard alcohol sanitizing wipes.
- Biocompatible Compound Shell: Formulated in compliance with stringent clinical safety standards, our non-toxic compound provides secure, reliable electrical connections within busy hospital facilities.
Factory-Direct Customization with Ultra-Low MOQ Requirements
At our manufacturing facility, we understand that medical device R&D, advanced prototyping, and small-batch clinical trials require highly responsive and flexible supply chains. Unlike massive, rigid industrial wire vendors who demand miles of material per production run, our entire operation is structured around customer customization.
We proudly offer extremely low Minimum Order Quantities (Low MOQ) starting at just 500 meters for custom runs, allowing engineering teams to validate their multi-core designs with minimal initial risk.
Our Fully Flexible OEM/ODM Tailored Services Include:
Turnkey Wire Assemblies: Complete pre-terminated solutions fitted with premium medical plugs (fully compatible with LEMO, Amphenol, or custom over-molded connectors).
Custom Jacket Aesthetics: Available in Clinical Black, Grey, Medical Green, Hospital White, or custom Pantone color matching to fit your device aesthetic.
Surface Laser Marking: High-contrast laser printing on the outer silicone shell for part numbers, regulatory markings, or your brand logo.
Flexible Silicone Wire Cable Frequently Asked Questions
What is the primary benefit of your low MOQ policy for custom runs?
Our 500-meter low MOQ allows medical device startups and corporate R&D labs to procure exact, custom-spec cables for verification testing and small clinical trial runs without purchasing thousands of meters of redundant, unused inventory.
What makes an all-silicone insulated cable superior to Teflon-insulated hybrids?
A standard cable with Teflon internal wires can feel stiff because the plastic layers rub against each other inside. Our flexible silicone wire cable uses pure silicone for both the inner wire insulation and the outer jacket, ensuring frictionless bending and a much softer hand feel for medical staff.
Does this 5 core silicone cable include any shielding?
This specific SIL-ALL-5C model is an unshielded, high-flexibility power and control cord. If your application requires severe electromagnetic compatibility (EMC) safety, we can easily add an internal tinned copper braiding shield during custom extrusion.
