Routing high-fidelity diagnostic data pairs alongside a dedicated power delivery line within a single medical handpiece requires an advanced approach to electromagnetic compatibility (EMC). Symmetrical multi-conductor cords often suffer from severe internal cross-talk because the heavy current fluctuations from the power phase directly corrupt adjacent low-voltage sensor lines.
As an ISO 13485 certified manufacturer, we engineer custom shielded silicone cable solutions designed to isolate conflicting electrical streams. Our premium 4-conductor hybrid cord (Model: SIL-DUAL-4) features a non-symmetrical, dual-layer shielding matrix, delivering elite-tier noise suppression and high structural integrity for sensitive medical sensors and electrosurgical instruments.
Non-Symmetrical Double-Shielded Architecture for Signal & Power Isolation
Medical instrumentation engineers frequently struggle with signal noise when power and telemetry channels are bundled closely together. While standard cords lack localized isolation, this specialized silicone rubber wire assembly adopts a multi-layered shielding geometry. This layout is engineered not for generic, loose suppleness, but for anti-torsion stability and long-term mechanical reliability under continuous handling.
Precision Non-Symmetrical Internal Layout

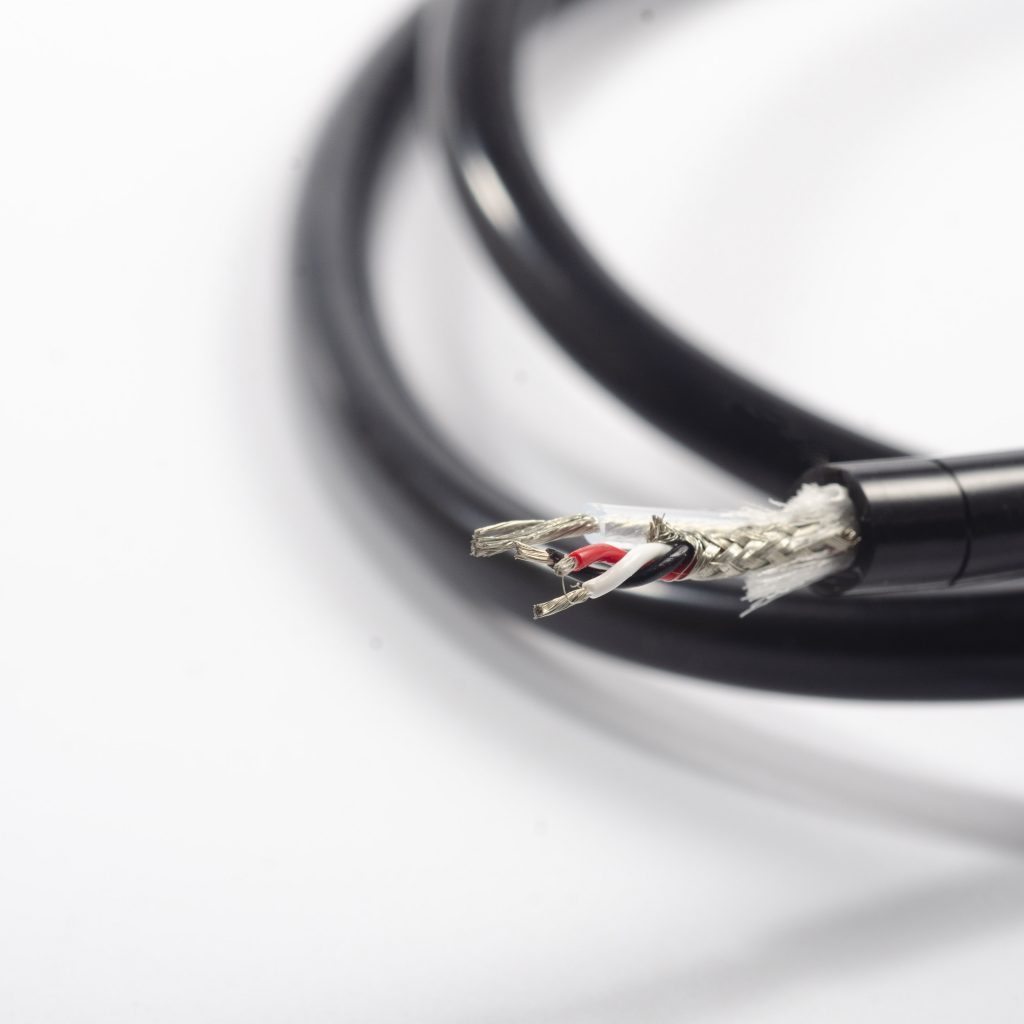

- Isolated Signal Core Group (3C × 26 AWG): Three tinned copper data strands twisted together under a dedicated internal tinned copper braiding shield. This layout isolates weak sensor telemetry and blocks power-line interference.

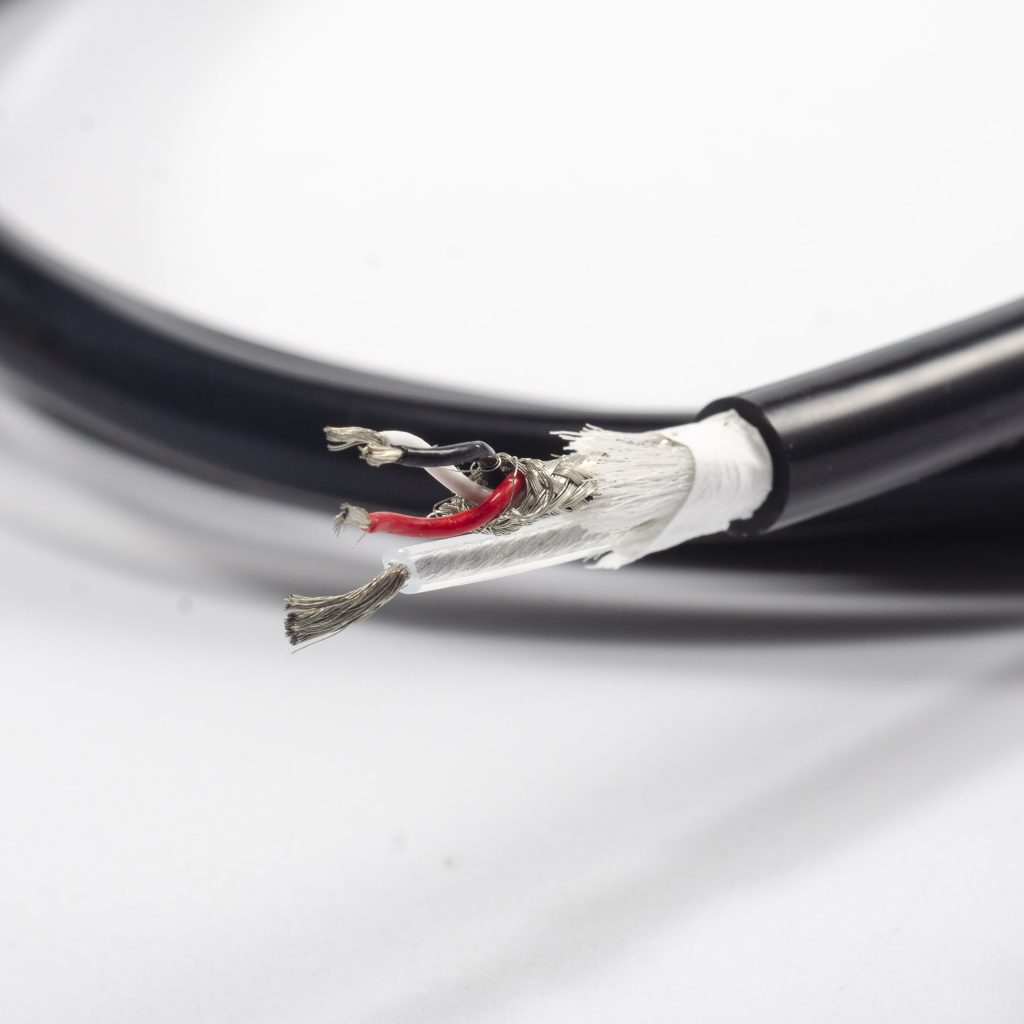

- Separated Power Distribution Line (1C × 22 AWG): One heavy-gauge tinned copper conductor positioned outside the primary signal shield matrix, optimized for low-resistance power supply delivery.
- Overall Master Braiding Shield: An external tinned copper braiding shield encloses the entire assembly, forming a dual-layer defensive barrier against external ambient radio frequency interference (RFI).
- Dielectric Core Insulation & Fillers: Every individual conductor is extruded with premium FEP (Fluorinated Ethylene Propylene). Integrated Nylon fiber fillers support the internal structure to maintain the uniform geometry of the cable during twisting.
Technical Parameter Matrix for Engineering Verification
Beyond spatial shielding geometry, raw layer dimensions and material compounding determine how well a shielded silicone cable performs over a demanding operational lifecycle. Engineering departments must verify strict dimensional compliance to ensure full hardware plug-and-socket compatibility.
| Technical Parameter | Material & Engineering Specifications |
| Product Identifier | Non-Symmetrical Multi-Shielded Cable (Model: SIL-DUAL-4) |
| Signal Core Configuration | 3C × 26 AWG Tin-Plated Stranded Copper Wire |
| Power Core Configuration | 1C × 22 AWG Tin-Plated Stranded Copper Wire |
| Primary Inner Shielding | Independent Tinned Copper Braiding Around 26AWG Core Group |
| Secondary Outer Shielding | Full Coverage Overall Tinned Copper Wire Braiding Matrix |
| Total Shielding Coverage | Dense Layered Overlapping Coverage Rate 95% |
| Core Insulation Material | High-dielectric FEP (Fluorinated Ethylene Propylene) |
| Internal Structural Filler | Heavy-duty Nylon fiber strands (Tensile reinforcement) |
| Outer Jacket Material | Biocompatible Medical Grade Silicone Rubber (Black) |
| Cable Outer Diameter (OD) | 5.8mm±0.1mm |
Clinical Compliance and Heavy-Duty Sterilization Testing
Having accurate physical dimensions is useless if the jacket degrades, hardens, or captures static after a few autoclave cycles in the hospital clean room. Surgical environments require materials with high chemical inertia to prevent environmental degradation and extend device operational lifespans.
Our specialized high temperature silicone wire compounding process ensures that each assembly outclasses standard commercial cords through targeted component upgrades:
- Steam Autoclave Resiliency: The high-grade vulcanized black silicone rubber outer jacket easily withstands repeated steam autoclave sterilization cycles 134℃. It retains its structural stability without experiencing surface cracking or jacket hardening.
- Premium EMC Certification Support: Thanks to the internal and external double tinned copper braiding shields, this cable delivers exceptional electromagnetic compatibility (EMC), shielding delicate diagnostic telemetry from surrounding electrosurgical tools.
- Biocompatible Compound Shell: Our specialized medical silicone rubber formulation ensures non-toxic, skin-safe interaction during surgical operations, making it perfectly safe for continuous staff handling.
Factory-Direct Customization with Ultra-Low MOQ Requirements
At our manufacturing facility, we understand that medical device R&D, advanced prototyping, and small-batch clinical trials require highly responsive and flexible supply chains. Unlike massive, rigid industrial wire vendors who demand miles of material per production run, our entire operation is structured around customer customization.
We proudly offer extremely low Minimum Order Quantities (Low MOQ) starting at just 500 meters for custom runs, allowing engineering labs to validate their non-symmetrical 4-core designs with minimal initial risk.
Our Fully Flexible OEM/ODM Tailored Services Include:
- Jacket Variations: Custom jacket colors (Clinical Black, Grey, Medical Green, Hospital White) or custom Pantone matching to fit your device aesthetic.
- Surface Laser Marking: High-contrast laser printing on the outer silicone shell for part numbers, regulatory markings, or your brand logo.
- Turnkey Wire Assemblies: Complete pre-terminated solutions fitted with premium medical plugs (fully compatible with LEMO, Amphenol, or custom over-molded connectors).
Shielded Silicone Cable Frequently Asked Questions
What is the mechanical benefit of your low MOQ policy for custom runs?
Our 500-meter low MOQ allows medical device startups and corporate R&D labs to procure exact, custom-spec cables for verification testing and small clinical trial runs without purchasing thousands of meters of redundant, unused inventory.
Why is a non-symmetrical layout preferred over a standard 4 core silicone cable?
A standard symmetric cable groups all wires together, allowing the power line to create electrical interference in the signal lines. Our dual-shielded layout wraps the 3 signal wires (26AWG) in an independent inner shield, isolating them from the 22AWG power line to ensure noise-free data.
Is this silicone rubber wire built for maximum flexibility?
This cable is engineered specifically for high mechanical durability and extreme shielding integrity rather than loose flexibility. The double tinned copper braiding matrix and nested internal pairs provide high structural alignment and anti-torsion stability, preventing internal collapse under continuous clinical handling.
