Overview
Integrating reliable high-frequency video telemetry alongside flexible multi-channel control lines into a single, slim surgical instrument handle requires advanced layout ergonomics and extreme thermal stability. Standard commercial multi-core cords easily suffer from internal insulation melt-through or severe signal noise under clinical conditions.

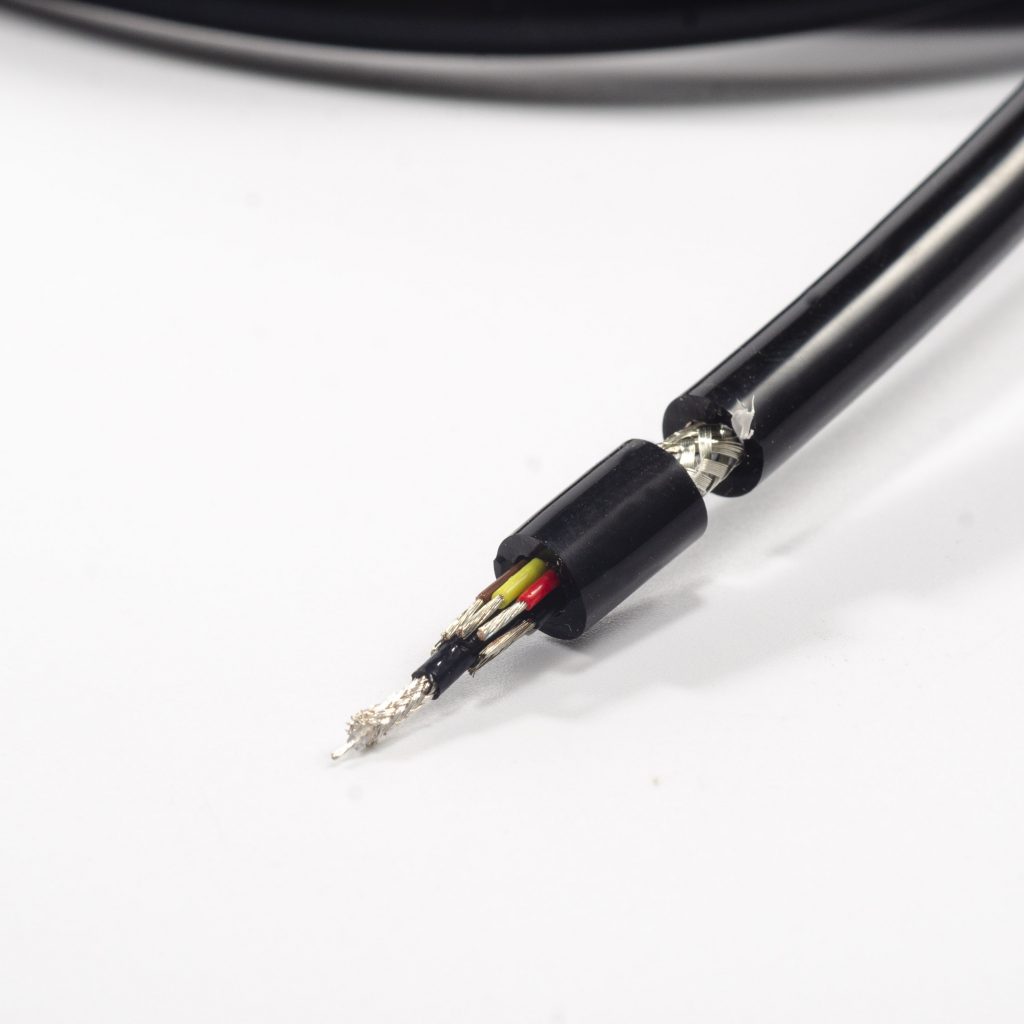

As an ISO 13485 certified medical cabling pioneer, we engineer premium silicone coaxial cable solutions tailored specifically for surgical imaging environments. This hybrid 7-conductor layout (Model: Endo-COAX-7) bundles a high-frequency coaxial channel with independent control strands under an elite, vulcanized medical jacket, ensuring crystal-clear diagnostic telemetry for medical endoscope handles.
Hybrid Architecture of Our Flexible Silicone Cable
Medical endoscope handle cables typically require at least one dedicated coaxial line to transmit critical high-definition image signals or video feeds from the internal image sensor to the external display monitor. A standard silicone ribbon cable or general industrial wire cannot protect these sensitive signals from collapsing when the surgical tool is twisted during operation.
To guarantee continuous structural integrity, our hybrid flexible silicone cable configures an internal micro-coaxial stream together with low-loss copper strands. This configuration provides medical device OEMs with a lightweight, highly maneuverable cabling alternative.
Precision Internal Component Breakdown
- High-Frequency Imaging Core: 1 channel of premium RG178 micro-coaxial wire (30 AWG silver-plated copper) maintaining a rigid 50 Ohm characteristic impedance.
- Multi-Channel Control Strands: 6 independent tinned copper wires split into a balanced configuration of 3 wires × 26 AWG and 3 wires × 28 AWG.
- Dielectric Layer Insulation: Extruded with top-tier FEP (Fluorinated Ethylene Propylene) to eliminate cross-talk and maximize signal speeds.
Technical Parameter Matrix for Engineering Verification
Beyond composite geometry layout, the choice of raw insulation shields determines how well a medical-grade video cable prevents signal distortion in modern operating theaters. Clinical assemblies must tolerate continuous tension without experiencing micro-cracking.
Below is the complete, uncorrupted technical dataset for our custom SIL-COAX-7 specification. Engineering teams can directly highlight and copy this clean text table block straight into their internal device blueprints without encountering any hidden format character errors.
| Technical Parameter | Engineering Material & Testing Specifications |
| Product Identifier | High-Flex Endoscopy Handle Cable (Model: Endo-COAX-7) |
| Coaxial Core | 1 Channel × RG178 Coax (30 AWG Silver-Plated Copper) |
| Control Conductors | 6 Cores: 3 Wires × 26 AWG + 3 Wires × 28 AWG |
| Conductor Material | Premium Tin-Plated Stranded Copper Wire |
| Primary Insulation | High-dielectric FEP (Fluorinated Ethylene Propylene) |
| Shielding Layer | High-Density Tin-Plated Copper Spiral Wrap Matrix |
| Shielding Coverage | Dense Overlapping Coverage Rate $\ge 95\%$ |
| Outer Jacket Material | Vulcanized Solid Medical Grade Silicone Rubber (Black) |
| Cable Dimensions | Outer Diameter (OD) 6.1mm± 0.15mm |
| Primary Application | Endoscope Handle Connection to Main Unit Imaging Processor |
Sterilization Compliance: High Temperature Silicone Cable Testing
Having precise physical dimensions is useless if the surgical jacket degrades or turns sticky after a few cycles in the hospital clean room. Surgical tools undergo intense processing, meaning material chemical inertia is mandatory to extend device lifespan.
Our custom high temperature silicone cable series is strictly formulated to outlast industrial wire limits through targeted build enhancements:
- 500+ Steam Autoclave Lifetime: Utilizing high-consistency vulcanized solid silicone rubber, the outer shell safely tolerates repeated steam autoclave sterilization cycles 134℃. It effectively resists jacket cracking, hardening, or becoming uncomfortably sticky over years of clinical usage.
- High-Flex Electromagnetic Attenuation: Surgical suites are crowded with stray high-frequency electromagnetic interference (EMI) from surrounding electrosurgical units (ESU). Our dense tinned copper spiral shield dampens ambient static, keeping video telemetry crisp and flicker-free.
- Ergonomic Tactile Feel: The vulcanized outer jacket provides a matte, ultra-smooth surface, minimizing resistance when medical professionals manipulate endoscope knobs during operation.
Get an Instant Technical Quote & Custom Sample Evaluation
Are you designing a next-generation video endoscope handle or struggling with a rigid overseas supply chain that demands miles of cable per run? Don’t let massive industrial order minimums stall your engineering milestones.
Why Partner Direct with HiFlexlink?
- Direct Manufacturer Pricing: Eliminate middleman costs by communicating directly with an agile, ISO 13485 certified medical silicone extrusion factory.
- Flexible Customization Matrix: We easily tailor alternative layouts, including 5-wire configurations 1Coax+ 4 Wires; 11-wire structures 1 Coax + 10 Wires, or dual-coaxial integrations.
- Ultra-Low MOQ Policy: We support engineering labs and medical startups by offering low Minimum Order Quantity (MOQ) runs for prototyping and small-scale clinical validation trials.
Custom Silicone Coaxial Cable FAQ
What is your minimum order quantity (MOQ) for a custom silicone coaxial cable?
We specialize in serving high-mix, low-volume medical OEMs. We provide flexible, low MOQ terms for custom endoscope handle line configurations, allowing your engineering team to validate prototypes without purchasing thousands of meters of redundant stock.
Why is a stranded copper shield used instead of standard aluminum foil shielding?
For a flexible silicone cable exposed to constant torsional twisting, standard aluminum foil shields crack inside the jacket very quickly, destroying signal shielding. Our $\ge 95\%$ tinned copper spiral wrap layout bends dynamically, ensuring long-term signal protection without metal fatigue.
Can this high temperature silicone cable withstand chemical wipes?
Yes. Our solid medical-grade silicone rubber shell is completely non-porous and highly resilient against aggressive hospital disinfectants, glutaraldehyde solutions, and standard alcohol disinfecting wipes.
