Overview
Selecting flexible, sterile, and reliable cabling components is critical for maintaining signal integrity and patient safety in modern dental and electro-medical electronics. Standard industrial lines often degrade quickly under harsh medical sterilization environments.
As an experienced medical cable manufacturer, we engineer custom silicone rubber wire solutions designed to meet strict clinical regulatory standards. Our 11 conductor hybrid cable delivers long-lasting mechanical durability and excellent ergonomics for surgical and diagnostic devices worldwide.

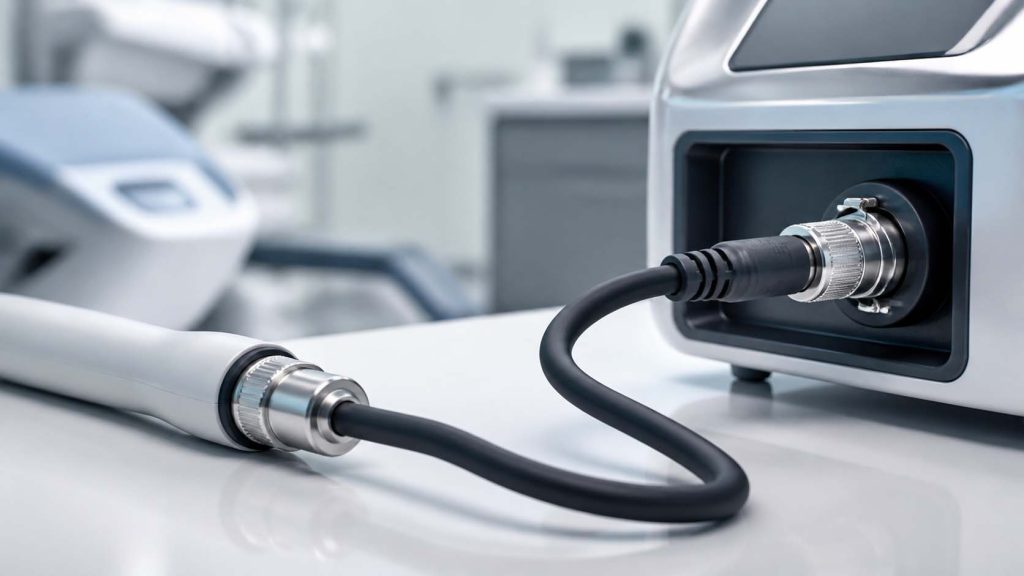

Custom Shielded Silicone Cable Architecture for Dental Tools
Medical device designers frequently face the challenge of routing power and multiple sensitive data streams through a single, tightly constrained handpiece. While a standard silicone ribbon cable or general industrial wire lacks the specialized internal support or round outer profile required for fluid movement, our custom silicone rubber wire excels under continuous twisting in delicate dental surgeries.

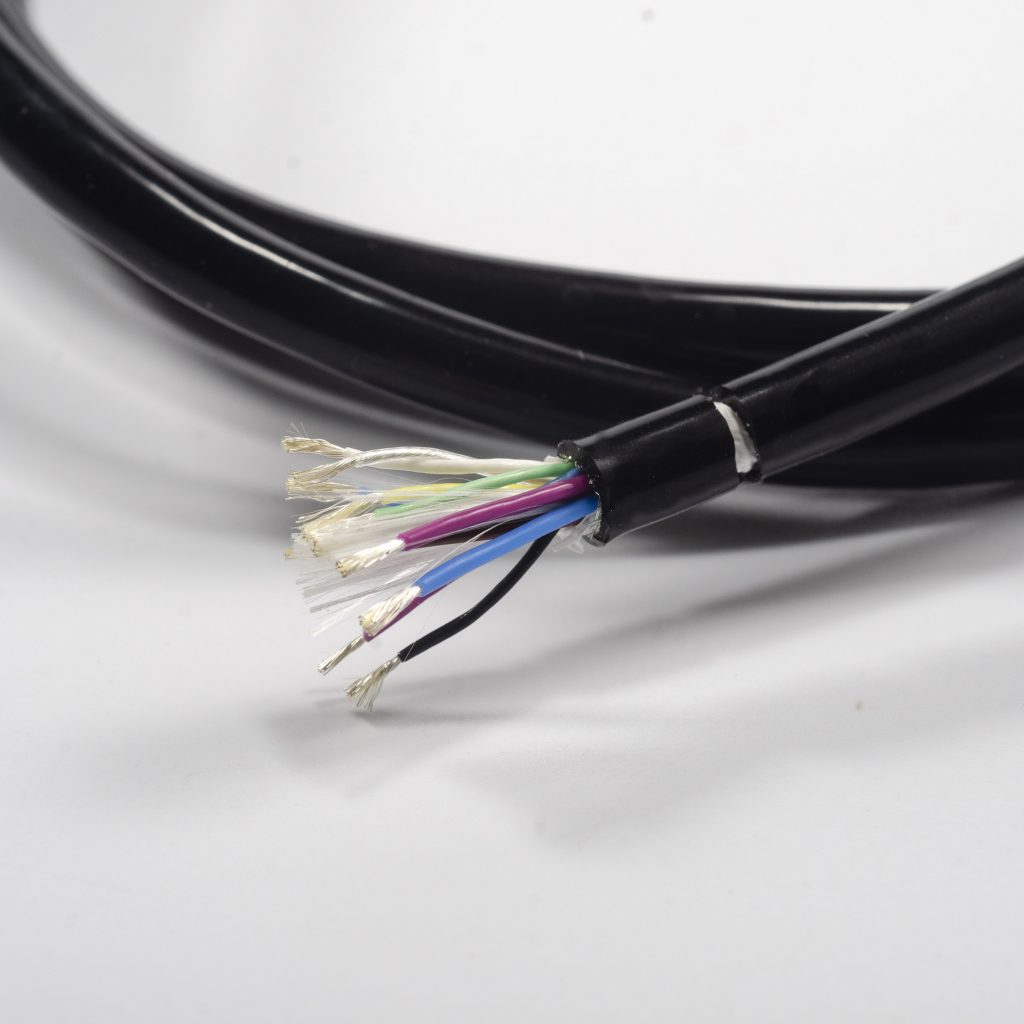

To eliminate internal cross-talk and optimize current transmission, this specialized 11-core cord integrates two separate wire gauges inside a single protective jacket, tailored specifically for dental electrosurgical units.

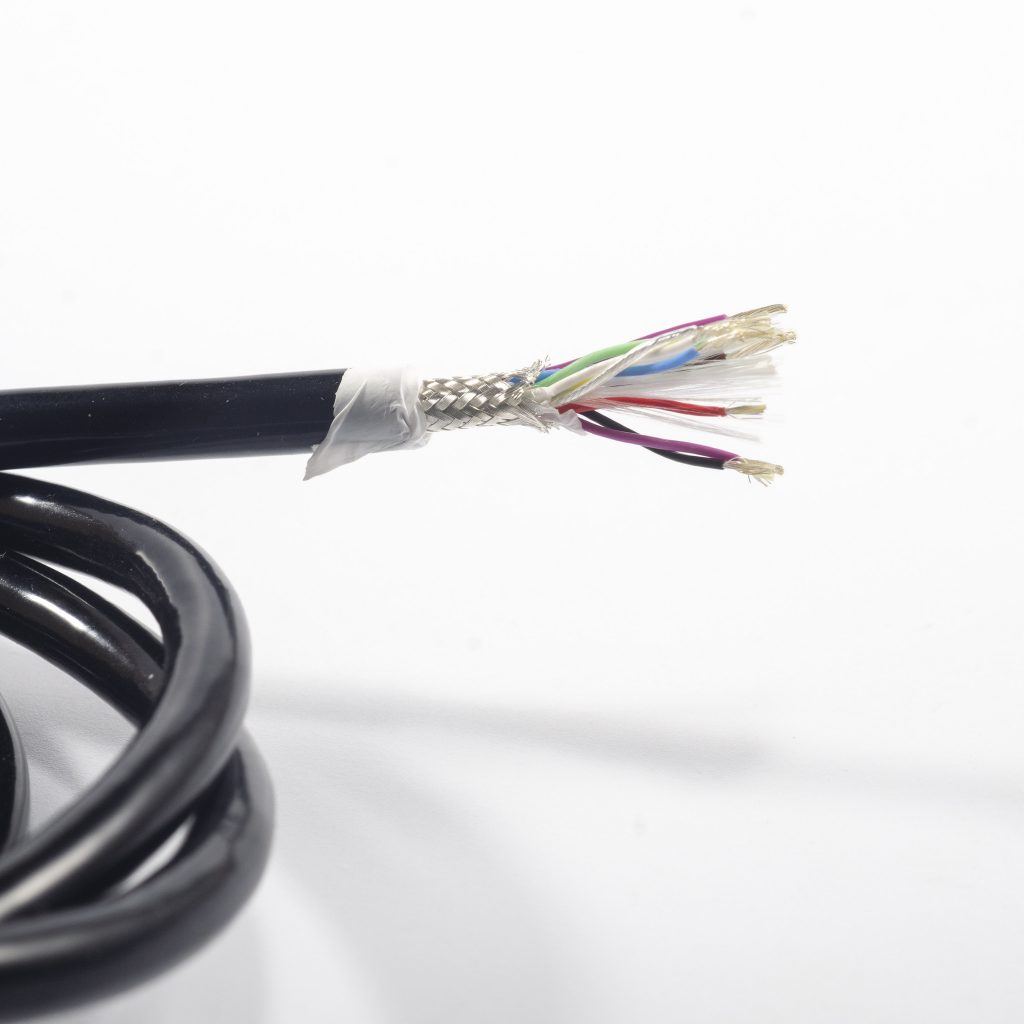

Optimized 11-Conductor Geometry
- Power & Ground Channels: 3 wires × 24 AWG silver-plated copper for stable, low-resistance power distribution.
- Sensitive Data Channels: 8 wires × 28 AWG silver-plated copper for multi-channel sensory and high-frequency signal feedback.
Technical Parameter Matrix
Beyond internal electrical geometry, the raw insulation materials chosen determine how well a medical-grade cable performs over its operational lifecycle. Clinical assemblies must endure continuous physical pulling and rubbing without experiencing insulation breakdown.
Below is the complete engineering dataset for our custom 11-core configuration. You can directly highlight and copy this data matrix straight into your design specifications without encountering any code or font corruption.
| Technical Parameter | Material & Engineering Specifications |
| Product Identifier | High-Flex 11-Conductor Medical Cable |
| Core Configuration | 11 Cores Hybrid (3 Wires × 24 AWG + 8 Wires × 28 AWG) |
| Conductor Material | Premium Stranded Silver-Plated Copper Wire (SPC) |
| Internal Insulation | High-dielectric FEP (Fluorinated Ethylene Propylene) |
| Tensile Reinforcement | Heavy-duty Nylon fiber filler |
| Shielding Performance | Silver-Plated Copper Braiding Shield ( 95% coverage) |
| Outer Jacket Material | Biocompatible Medical Grade Silicone Rubber (Black) |
| Cable Outer Diameter (OD) | 5.5 mm± 0.15mm |
| Primary Application | Dental electrosurgical knife / Medical transducers |
Sterilization Compliance: Heat Resistant Silicone Cable Testing
Having accurate physical dimensions is only half the battle; medical-grade components must also comply with rigorous clinical safety and infection control protocols. Whether exposed to direct patient skin contact or undergoing aggressive sterilization, our compound materials remain completely inert.
Our custom heat resistant silicone cable has been thoroughly optimized to excel against the most demanding clinical maintenance cycles:

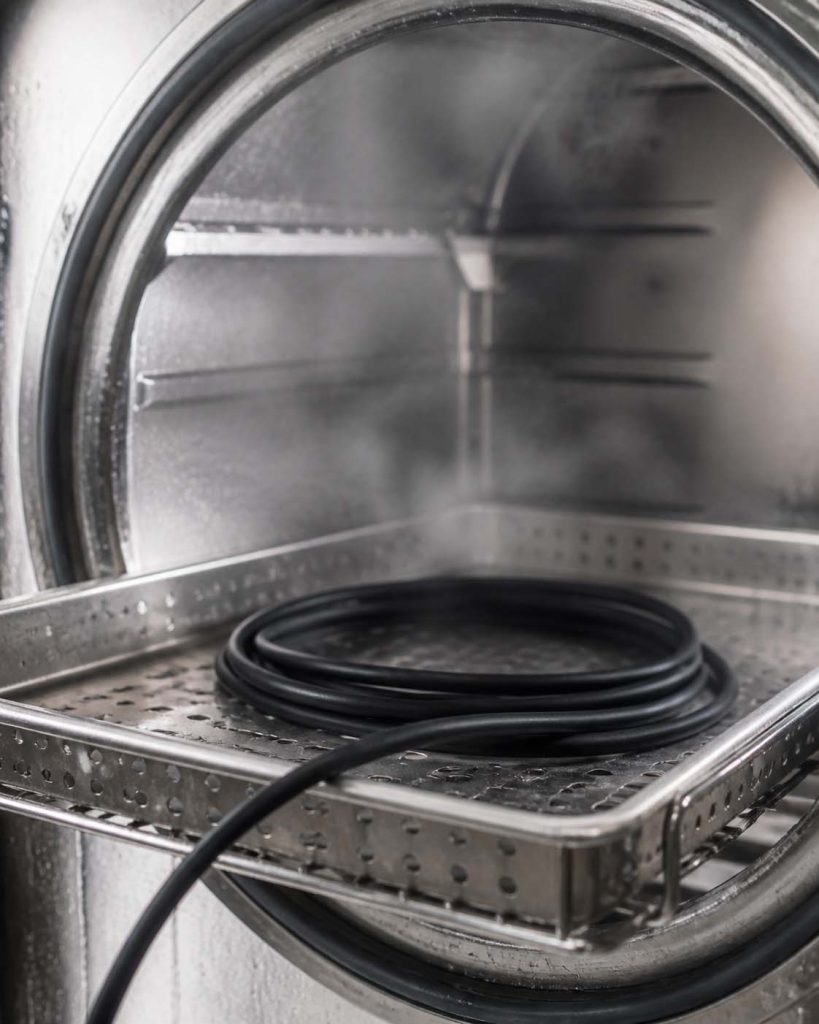

- Autoclave-Ready Longevity: The outer black elastomeric jacket easily withstands repeated steam autoclave sterilization cycles 134℃. It prevents cable cracking, hardening, or losing its ultra-soft, ergonomic texture over time.
- Superior Electromagnetic Attenuation: Surgical theaters are crowded with stray stray radio frequencies. Our tight silver-plated copper braiding shield delivers outstanding EMI/RFI shielding coverage ( 95%), ensuring crystal-clear data lines for sensitive dental tools and electrosurgical knives.
- Biocompatible Compound Shell: The internal FEP insulation combined with our specialized medical silicone rubber ensures non-toxic, skin-safe interaction during surgical operations.
Factory-Direct OEM Services with Ultra-Low MOQ Requirements
At our factory, we recognize that medical device R&D, advanced prototyping, and small-batch clinical trials require highly responsive, flexible supply chains. Unlike rigid, massive-volume industrial wire suppliers who demand kilometers of material per run, our entire production line is structured around customer customization.
We proudly offer extremely low Minimum Order Quantities (Low MOQ) starting at just 500 meters for custom configurations, allowing you to validate your medical designs without heavy initial financial burdens.
Our Fully Flexible Manufacturing Capabilities Include:
- Custom Jacket Aesthetics: Available in Clinical Black, Medical Green, Ocean Blue, Hospital White, or custom Pantone matching.
- Surface Laser Branding: High-contrast laser printing on the outer jacket for part numbers, regulatory symbols, or your proprietary brand logo.
- Turnkey Cable Assemblies: Complete pre-terminated solutions fitted with premium medical plugs (fully compatible with LEMO, Amphenol, or custom over-molded connectors).
Frequently Asked Questions (FAQ)
What is the benefit of your low MOQ policy for silicone rubber wire?
Our 500-meter low MOQ allows medical device startups and engineering labs to procure exact, custom-spec cables for prototyping, verification testing, and small clinical trial runs without purchasing thousands of meters of unused inventory.
Why use FEP insulation inside a shielded silicone cable?
While the outer silicone jacket provides exceptional external flexibility and a soft, skin-friendly touch, the internal FEP insulation on each silicone rubber wire core offers superior dielectric strength and prevents electrical cross-talk between the 11 dense conductors.
Is this heat resistant silicone cable compatible with hospital chemicals?
Yes. Beyond steam autoclaving, the medical-grade outer silicone shell is highly resilient against standard hospital chemical disinfectants, fluid exposure, and aggressive sanitizing wipes.
Contact Our Medical Cable Experts Today
Take control of your medical cable supply chain with direct factory support, competitive出价 advantage, and custom tailored wire diameters.
🚀 Ready to Start Your Project?
- Low 500-Meter MOQ to support your initial commercial deployment.
- Full raw material tracking and certificate testing transparency.
- Customized laser marking available to match your corporate branding.
